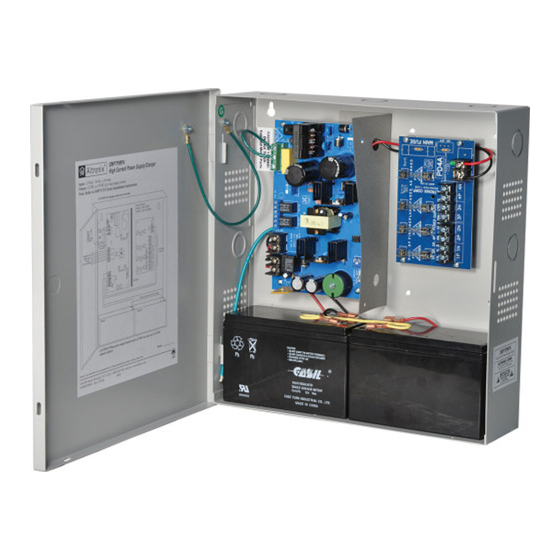

SMP7CTX220 Series
Power Supply/Chargers
Models Include:
SMP7CTX220
SMP7PMCTX220
SMP7PMCTXX220
- Single Output.
SMP7PMP4220
- Four (4) Fuse Protected Outputs.
SMP7PMP8220
- Eight (8) Fuse Protected Outputs.
SMP7PMP16220
- Sixteen (16) Fuse Protected Outputs.
For a red enclosure add an "R" suffix to the part #, e.g. SMP7CTX220R
Installation Guide
Rev. 011604
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
SMP7PMP4CB220
- Four (4) PTC Protected Outputs.
SMP7PMP8CB220
Eight (8) PTC Protected Outputs.
SMP7PMP16CB220
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix SMP7CT 220 Series
Summary of Contents for Altronix SMP7CT 220 Series
- Page 1 SMP7CTX220 Series Power Supply/Chargers Models Include: SMP7CTX220 SMP7PMCTX220 SMP7PMCTXX220 - Single Output. SMP7PMP4220 SMP7PMP4CB220 - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs. SMP7PMP8220 SMP7PMP8CB220 - Eight (8) Fuse Protected Outputs. Eight (8) PTC Protected Outputs. SMP7PMP16CB220 SMP7PMP16220 - Sixteen (16) PTC Protected Outputs.
- Page 2 Overview: Altronix SMP7CTX220 Series power supply/chargers convert a 220VAC (working range 198VAC - 256VAC), 50/60Hz into a regulated 12VDC or 24VDC output with up to 6A of continuous load current (see specifications) . SMP7CTX220 Series Power Supply Configuration Reference Chart:...
- Page 3 Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local codes and authorities having jurisdiction. Product is intended for indoor use only. 1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the enclosure.
- Page 4 Terminal Identification: Power Supply Board: Terminal Legend Function/Description L, G, N Connect 220VAC to these terminals: L to Hot, N to Neutral. – DC + 12VDC / 24VDC @ 6A continuous output. Used to notify loss of AC power, e.g. connect to audible device or alarm panel. *AC FAIL Relay normally energized when AC power is present.
- Page 5 Fig. 1 Fig. 1a Switch disables power mains line voltage input. If stand-by battery (batteries) are connected, the DC output remains on Ground 220VAC power mains Power Distribution Power Supply Module(s) Board Fig. 1b LED Diagnostics, pg. 3 LOW BAT AC FAIL C NO NC C...
- Page 6 Power Distribution Module(s): Fig. 2 - PD4/PD4CB Used on PTC Models 1P, 2P, 3P, 4P = FUSED OUTPUTS 1N, 2N, 3N, 4N = COMMON OUTPUTS INPUT COMMON POWER OUTPUTS DC Output to devices From Power Supply Board (Factory Installed) Fig. 3 - PD8/PD8CB Used on PTC Models FUSED POWER OUTPUTS...
- Page 7 SMP7CTX220, SMP7PMCTX220, SMP7PMP4220, SMP7PMP4CB220, SMP7PMP8220, SMP7PMP8CB220, SMP7PMP16220, SMP7PMP16CB220 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm) Enclosure accommodates up to two (2) 12VDC/7AH batteries. Also available to accommodate up to two (2) 12VDC/12AH batteries (please contact Altronix). 1.40” 1.40” 4.85” (123.2mm) 4.85”...
- Page 8 1.5” 4.615” (117.2mm) 4.615” (117.2mm) (38.1mm) (38.1mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER IISMP7CTX220 Series...
