Altronix NetWaySP8C3W Series Installation Manual page 12

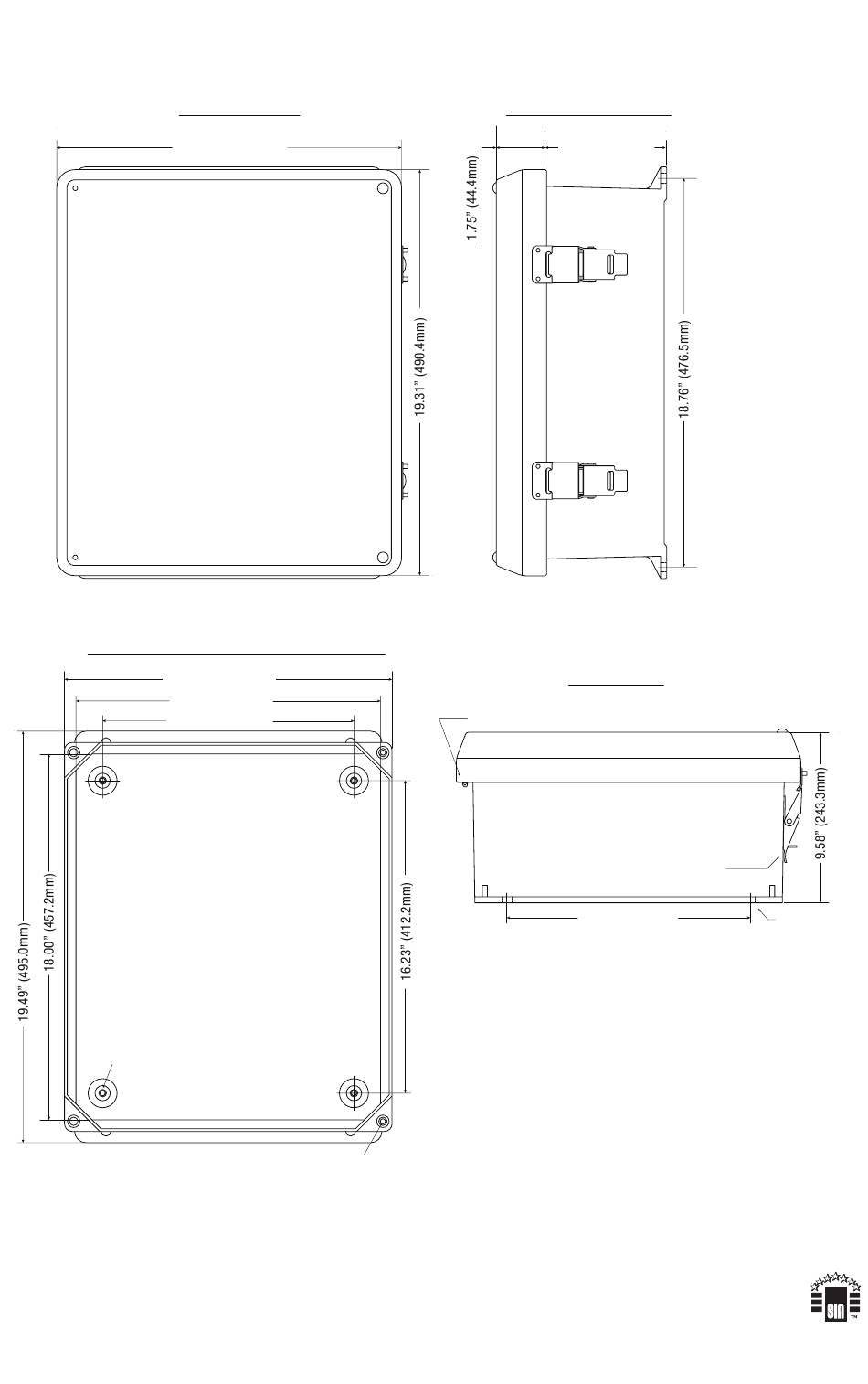

Mechanical Drawing and Dimensions (H x W x D approx.):
FRONT VIEW COVER REMOVED
10-32 X 0.25" (6.4mm)
BRASS INSERT (X4)
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IINetWaySP8C3W Series
- 12 -
NetWaySP8C3W5
19.31" x 17.32" x 9.58" (490.4mm x 439.9mm x 243.3mm)
FRONT VIEW
17.32" (439.9mm)
16.74" (425.2mm)
16.00" (406.4mm)
14.22" (361.2mm)
10-32 X 0.25" (6.4mm)
BRASS INSERT (X2)
RIGHT SIDE VIEW
7.83" (198.8mm)
END VIEW
STAINLESS STEEL PIANO HINGE
PADLOCK LATCH ATTACHED
WITH RIVETS (Ø 0.375" (9.5mm) PADLOCK EYE)
11.98" (304.3mm)
J16X
Ø 0.32 (8.1mm)
MOUNTING HOLE
TYP. 4 PLACES
MEMBER
