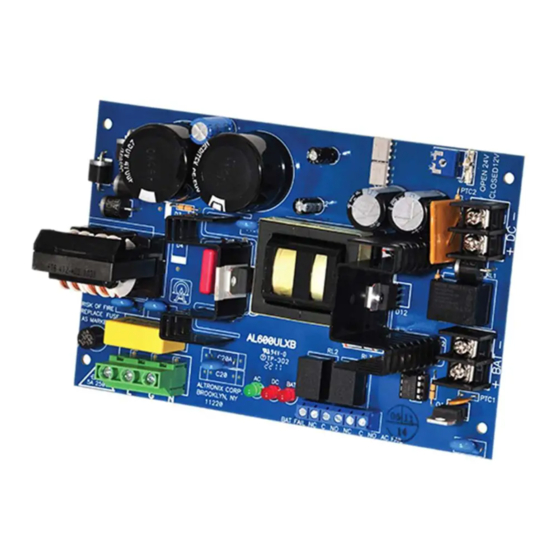

Altronix OLS200220 Quick Start Manual

Altronix OLS200220 power supply/charger converts 220VAC (working range 198VAC-256VAC), 50/60Hz
input into a 12VDC at 10A of continuous supply current (see specifications). This general purpose power supply
has a wide range of applications for access control and security system accessories that require additional power.
Input:
• 220VAC (working range 198VAC-256VAC),
50/60Hz, 0.95A.
Output:
• 12VDC output.
• 10A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Automatic switch over to stand-by battery
when AC fails.
• Maximum charge current 0.7A.
OLS200220 should be installed in accordance with The National Electrical Code and all applicable
Local Regulations.
1. Mount the OLS200220 in the desired location/enclosure (mounting hardware included).
2. Slide [Power ON/OFF] switch to OFF position (Fig. 1, pg. 2).
3. Connect AC power to the terminals marked [L & N], connect ground to the terminal marked [G].
Use 18 AWG or larger for all power connections (Battery, DC output, AC input).
Use 22 AWG to 18 AWG for power limited circuits (AC Fail/Low Battery reporting).
Keep power-limited wiring separate from non power-limited wiring (220VAC, 50/60Hz Input,
Battery Wires). Minimum 0.25" spacing must be provided.
CAUTION: Do not touch exposed metal parts.
Shut branch circuit power before installing or servicing equipment.
There are no user serviceable parts inside.
Refer installation and servicing to qualified service personnel.
4. Slide [Power ON/OFF] switch to ON position (Fig. 1, pg. 2).
5. Measure output voltage before connecting devices. This helps avoiding potential damage.
6. Slide [Power ON/OFF] switch to OFF position (Fig. 1, pg. 2).
7. Connect devices to be powered to the terminals marked [– DC +].
When the use of stand-by batteries is desired, they must be lead acid or gel type.
8. Connect battery to the terminals marked [– BAT +] (battery leads included).
Note: When batteries are not used, a loss of AC will result in the loss of output voltage.
9. Connect appropriate signaling notification devices to AC Fail & Low battery supervisory
relay outputs marked [NC, C, NO].
10. Slide [Power ON/OFF] switch to ON position (Fig. 1, pg. 2).
Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
OLS200220
Off-Line Power Supply/Charger

Overview:

Specifications:

Supervision:
• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).
Visual Indicators:
• AC input and DC output LED indicators.
Features:
• Power ON/OFF switch.
• Includes battery leads.
Board Dimensions (L x W x H approx.):

Installation Instructions:

LED Diagnostics:

Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery is supplying power.
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged or no battery present.
7.25" x 4.5" x 1.75"
(184.1mm x 114.3mm x 44.5mm).
