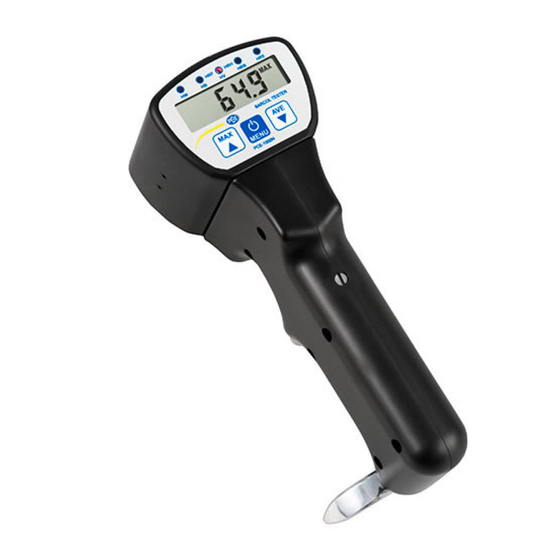

- Page 1 User Manual PCE-1000N Barcol Hardness Tester User manuals in various languages (Deutsch, français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be downloaded here: www.pce-instruments.com Last change: 13 October 2017 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Low end calibration ......................7 High end calibration......................7 Display value calibration ....................7 Troubleshooting ..................8 Pin Replacement ......................8 Further information ................9 Approximate conversion curve ..................9 Hardness conversion ......................9 Warranty ....................12 10 Disposal ....................12 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Specifications
2 x 1.5 V AAA batteries Dimensions 170 x 63 x 82 mm Weight 390g (without batteries) Delivery Contents: 1 x Barcol hardness tester PCE-1000N 2 x spare pins 2 x calibration plates 1 x pin length calibration block 3 x screwdrivers 1 x wrench... -
Page 5: System Description
With its average function, the device can calculate an average value of up to 29 readings. With its standard load spring and standard pressure pins, the PCE-1000N can be used for a variety of different materials, such as aluminium, aluminium alloy, copper, copper alloy, fibre- reinforced plastics (glass, steel), other reinforced plastics, non-reinforced hard plastic, and other materials. -
Page 6: Structure And Function Keys
Structure and function Keys The PCE-1000N measures the indentation hardness by pressing a specific pressure pin with a specific pressure into the surface of the sample. The hardness is calculated via the indentation depth. The device uses the following formula: HBa=100-h/0.0076... -
Page 7: Display
Test samples should be placed stably. Small samples should be placed on a solid surface. (e. g., steel, glass, etc.). During the measurement, the sample should not be tilted. The sample should also be protected against slipping and deformation. © PCE Instruments... -
Page 8: Operation
The softer the sample is, the more measurements should be included. The suggested number of measurements can be seen in the following tables: Suggested number of measurements for aluminium alloys (According to ASTM B648-2000) Barcol hardness value Min. number of measurements © PCE Instruments... -
Page 9: Calibration
Use a small screw driver to adjust the main spindle adjusting screw. The display value decreases when turning it clockwise and increases when turning it counter-clockwise. Adjust the screw until the measured value is in the indicated range of the 2 standard blocks. © PCE Instruments... -
Page 10: Troubleshooting
To eliminate this error, make sure to check and clean the top of the measuring pin on a regular basis. © PCE Instruments... -
Page 11: Further Information
NOTE: Due to the properties of soft metal materials, a consistent conversion between different hardness systems is not possible. Therefore, the following conversion table is for reference only. It is recommended to determine the actual hardness values by taking measurements. Brinell Rockwell Barcol Vickers Webster 10mm OU2800S W-20 500kg © PCE Instruments... - Page 12 10.1 10.6 11.0 11.4 11.8 12.2 12.6 12.9 13.3 13.7 14.0 14.3 14.7 15.0 15.3 15.6 15.9 16.2 16.4 16.7 16.9 17.2 17.4 17.6 17.8 18.0 18.2 © PCE Instruments...
- Page 13 18.4 18.6 18.7 18.9 19.0 19.2 19.3 19.4 © PCE Instruments...
-
Page 14: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 15 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 SOULTZ-SOUS-FORETS 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
