Summary of Contents for Converters.TV 899

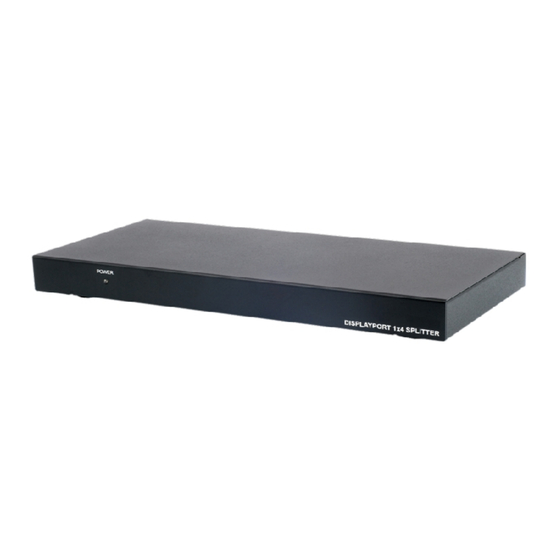

- Page 1 DisplayPort 1in:4out Splitter - ID# 899 Operation Manual...
- Page 2 Introduction The DisplayPort (DP) 1 by 4 splitter allows a single DP source to be displayed on four DP input monitors simultaneously. It supports video resolution up to 2560 x 1600 and audio up to PCM 7.1 Providing a fast switch time between source and display monitors by saving monitor EDID data to allow the image to display properly.
-
Page 3: Operation Controls And Functions
Operation Controls and Functions Front Panel Power LED: The LED will illuminate in green when power on and in red when in reset mode. Rear Panel 1. EDID switch INT/EXT: This switch allows user to select the built-in EDID (INT) or the display's EDID (EXT). -
Page 4: Specifications
STD Mode EDID Support Format Specifications Frequency Bandwidth 10.8Gbps (4lanes at 2.7Gbps) Audio Sampling Rate 192kHz Input port 1 x Displayport Output ports 4 x DisplayPort Power Supply 5V / 3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±... -
Page 5: Connection And Installation
Connection and Installation...
