- Page 1 Video to PC/HD Converter # 858 Operation Manual...
-
Page 2: Output Resolution

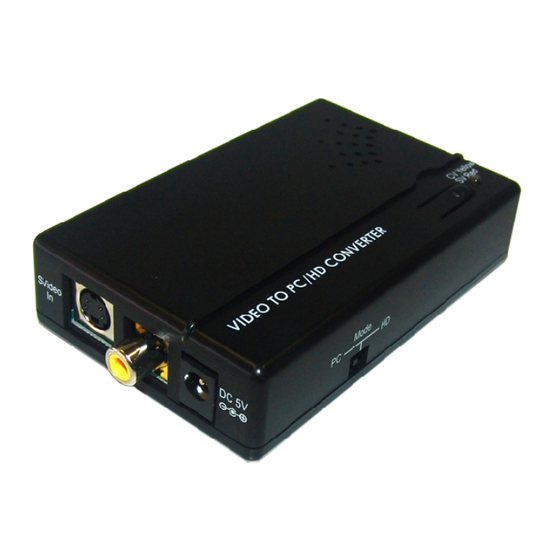

Introduction This economical Video to PC converter box that can convert CV/SV (NTSC or PAL system) to supported PC resolution like XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or Game sources on the PC monitor, this device also has an On-Screen Display that allows users to easily select their desired output resolution. - Page 3 ② Composite (CV) input: This slot is where you connect the input source equipment such as personal media player or personal recorder with RCA cable for input signal sending. ③ DC 5V In: This slot is where you plug the 5V DC power supply into the unit and connect the adaptor to an AC wall outlet.
- Page 4 1. Press the top panel’s button once to switch in between CV/SV. When input source is disconnected the OSD will show “No Signal”. 2. Press the top panel’s button for 3 second to bring up OSD manual. 3. When the device is under PC mode the OSD will display input format and output timing, source detection, PC monitor’s EDID and firmware version as to above picture.
-
Page 5: Support Timing Chart
Specifications Input port 1 x CV, 1 x SV Output port 1 x VGA (Component out needs D-Sub 15 to 3RCA adaptor) Output Resolution PC: XGA/SXGA/UXGA Component: 480p/576p/720p/1080p Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge)± 4kV (contact discharge) Dimensions (mm) 64(W) x 112.5(D) x 26(H) -
Page 6: Connection And Installation
Connection and Installation...
