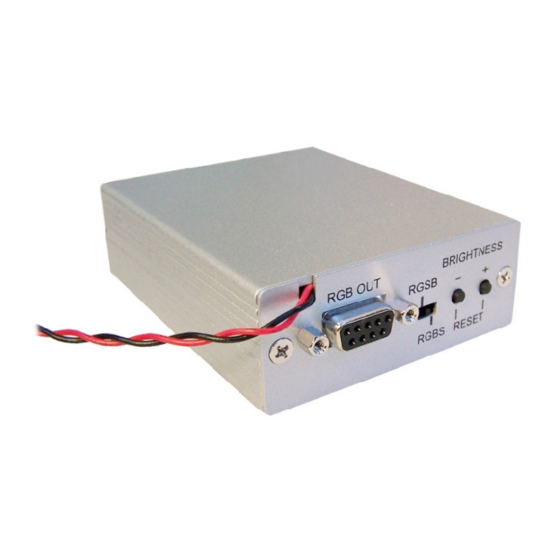

- Page 1 Video to RGB Converter with RGB by-pass switch ID# 840 Operation Manual...
- Page 2 Introduction Video to RGB Converter with RGB by-pass switch allows Composite video signals from NTSC or PAL source to be converted into RGB H+V (Combined Sync) or RGBsB (Sync On Green) to allow video to be viewed on most CGA 15kHz monitors. Input a Composite Video signals from any source to the CV In of the converter and output 15kHz (CGA) RGB Combined Sync (RGB H+V) or RGsB Sync on Green (SoG) for connection to your 15kHz CGA monitor.
- Page 3 Operating Functions and Controls Front Panel 1. - And + buttons/reset button- The – and + buttons are used to decrease and increase the brightness level respectively. Simultaneously pressing the – and + buttons returns brightness to its factory default value. 2.
- Page 4 Rear Panel 1. DC power supply input- This is the power supply input port. 2. Video input- This is the Composite Video input port. Connection & Installation - Connect the RGB video source and monitor to the converter using the special VGA 9 Pin twin tail adapter cable.
