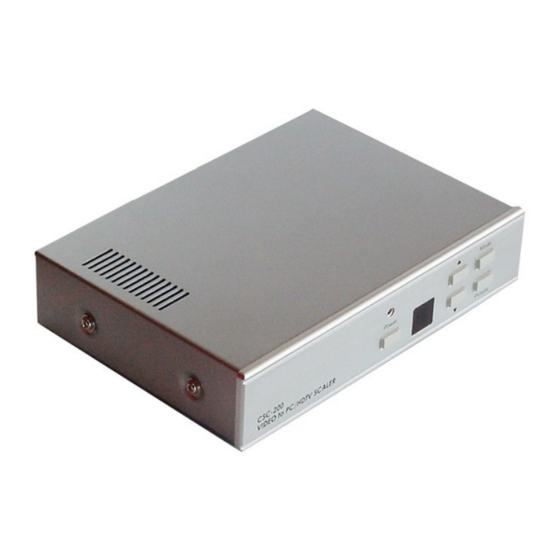

- Page 1 Magic View Video Scaler w/ RS 232 # 82 Operation Manual...
- Page 2 Introduction This unit is a high quality up-scaler converting Composite, S-Video and YCbCr into high resolution PC or HDTV output. Input, output and picture can all be controlled via the OSD menu, remote control. It is best suited for use with LCD projectors, CRT/LCD monitors, and plasma or HDTV displays to improve picture quality.
- Page 3 Resolution Mode- If output is selected as RGB, press the up and down buttons to choose from 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA) or 1280 x 1024 (SXGA) PC output. If output is selected as YPbPr press the up and down arrows to choose from 480p, 576p, 720P or 1080i HDTV output.
- Page 4 Rear Panel 1. S-Video- Use an S-Video cable to connect the S-Video output of the source video equipment to the S-Video input port. 2. Composite Video- This is the C-Video input port. Use a composite video cable to connect the composite video output of the source equipment to the C-Video input port.
- Page 5 7. VGA- Press this button to select 640 x 480 as output resolution. 8. SVGA- Press this button to select 800 x 600 as output resolution. 9. XGA- Press this button to select 1024 x 768 as output resolution. 10. SXGA- Press this button to select 1280 x 1024 as output resolution. 11.
- Page 6 resolution is selected, use the HD-15-to-HD-15 VGA cable to connect the output to the PC input of your display monitor. When HDTV/YPbPr output is selected, use the HD-15 to YPbPr 3 x RCA cable to connect the output to the YPbPr input of you HDTV display.
