- Page 1 RGB Sync on Green 31k to VGA / HDTV Converter - ID# 835 Operation Manual...
- Page 2 Introduction RGB Sync on Green 31k to VGA / HDTV Converter is designed to upscale video signal using RGB Green lead synchronization @ 31kHz horizontal scan rate. The unit can take an input and scale it PC resolutions VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA and WUXGA;...

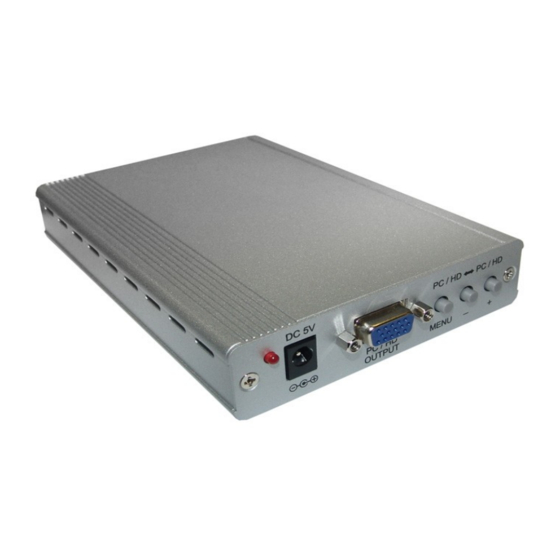

- Page 3 1. Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet. 2. PC/HD Output: Connect the PC output D-Sub (15-pin) port to the D-Sub input port of your display. 3. Menu Button: Press the MENU button to bring up OSD operation menu. (See section "4.
- Page 4 Support Resolution PC INPUT PC OUTPUT I n p u t / O u t p u t Resolution PC/HD PC/HD 4801/5761 (NTSC/PAL) 480P/576P 720P@(50/60) 1080i@(25/30) 1080P@ (50/60) VGA@(60/72/75/85) V@60 SVGA@ (56/60/72/75/85) V@60 XGA@(60/70/75/85) V@60 SXGA@ (60/75/85) V@60 UXGA@60 WXGA@60( 1 280x800) WSXGA@60( 1 680x1050) W UXGA@60(1920x1 200) Note: 1920 x 1200 = Reduced Blanking WUXGA...
