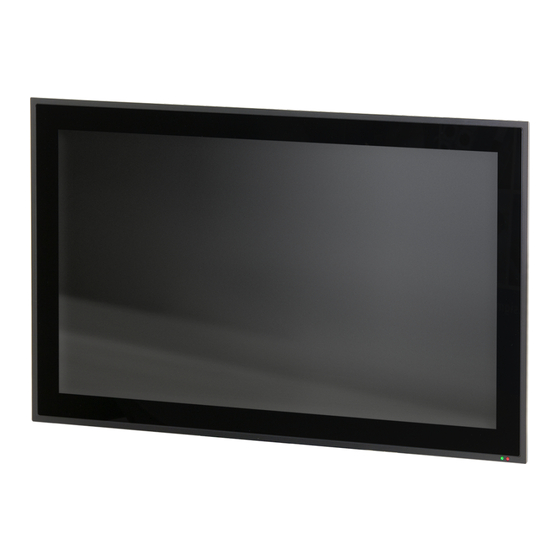

- Page 1 TAE 1844 Build-in Touch Terminal Instruction Manual Date of creation: 03.06.2020 Version date: 13.08.2024 Article number: 12-200-1844-E...
- Page 2 (print, photocopy, microfilm or in any other process) without express permission. We reserve the right to make changes in the content without notice. SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in this handbook and assumes no responsibility for damages that occur through...
-
Page 3: Build-In Touch Terminal
Currently supported: PC 452-K, HMI-Link G2 insert (PC 301-E7) and HMI-Link G2 Box (PC 301- E8). A device equipped with a generation 2.1 SIGMATEK HMI- Link (G2.1) is also required on the PC side; either integrated directly on the PC or as an external expansion box. -
Page 4: Table Of Contents
TAE 1844 BUILD-IN TOUCH TERMINAL Table of Contents 1 Introduction 1.1 Target Group/Purpose of this Operating Manual 1.2 Important Reference Documentation 1.3 Contents of Delivery 2 Basic Safety Directives 2.1 Symbols Used 2.2 Disclaimer 2.3 General Safety Directives 3 Standards and Directives 3.1 Directives... - Page 5 BUILD-IN TOUCH TERMINAL TAE 1844 6.1.5 X6: Panel Interface Connector 6.2 Applicable Connectors 6.3 Status Display LEDs 7 Mechanical Dimensions 8 Assembly/Installation 8.1 Check Contents of Delivery 8.2 Installation 8.3 Mounting Instructions 8.3.1 Restricted Space Around Rear Trimming 8.3.2 Required Cutout for Mounting the Terminal 8.3.3 Mounting Position...
- Page 6 TAE 1844 BUILD-IN TOUCH TERMINAL 14 Display „Burn-In“ Effect 15 Disposal 16 Accessories 16.1 Touch Pen Page 4 13.08.2024...
-
Page 7: Introduction
TP XX61 PIM 021 This and additional documents can be downloaded from our website or obtained through support. 1.3 Contents of Delivery 1x TAE 1844 14x angle bracket 1x 4-pin Phoenix connector plug 2x M3 TX10 Torx screws 13.08.2024 Page 5... -
Page 8: Basic Safety Directives
TAE 1844 BUILD-IN TOUCH TERMINAL 2 Basic Safety Directives 2.1 Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes. DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 BUILD-IN TOUCH TERMINAL TAE 1844 CAUTION Caution indicates that moderate to slight injury can occur, if the specified measures are not taken. To avoid moderate to slight injuries, observe all guidelines. Attention indique une situation dangereuse qui, faute de prendre les mesures adéquates, peut entraîner des blessures assez graves ou...
-
Page 10: Disclaimer
Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
Regarding the requirements for Safety and health connected to the use of machines, the manufacturer must perform a risk assessment in accordance with machine directives 2006/42/EG before introducing a machine to the market. Operate the unit with devices and accessories approved by SIGMATEK only. 13.08.2024 Page 9... - Page 12 TAE 1844 BUILD-IN TOUCH TERMINAL CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber.
-
Page 13: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product TAE 1844 conforms to the following European directives: 2014/35/EU Low-voltage Directive 2014/30/EU Electromagnetic Compatibility (EMC Directive) 2011/65/EU “Restricted use of certain hazardous substances in electrical and electronic equipment”... -
Page 14: Type Plate
TAE 1844 BUILD-IN TOUCH TERMINAL 4 Type Plate HW: Hardware version SW: Software version Page 12 13.08.2024... -
Page 15: Technical Data
Interfaces 1x HMI Remote IN (HMI-Link G2.1) 2x USB 2.0 Type A OUT 1x Panel Interface Connector (for connecting a SIGMATEK TP) Internal interfaces USB 2.0 (for touch and front USB, if available on the TP) (via Panel Interface Connector) - Page 16 TAE 1844 BUILD-IN TOUCH TERMINAL INFORMATION For USA and Canada: The supply must be limited to: a) max. 5 A at voltages from 0-20 V DC, or b) 100 W at voltages from 20-60 V DC The limiting component (e.g. transformer, power supply or fuse) must be certified by an NRTL (Nationally Recognized Testing Laboratory).
-
Page 17: Display
BUILD-IN TOUCH TERMINAL TAE 1844 5.3 Display Type 18.5” TN color display Resolution WXGA 1366 x 768 pixels Color depth 18-bit RGB + Hi-FRC LCD mode normally white LCD Polarizer transmissive Pixel size 0.3 x 0.3 mm Active range 409.8 x 230.4 mm... -
Page 18: Control Unit
BUILD-IN TOUCH TERMINAL 5.4 Control Unit Operating field Touch screen (multi-touch, projective capacitive) Maximum number of fingers The operation with thin gloves SIGMATEK Touch pen (passive) Handwriting recognition Ball of the thumb recognition Water spray recognition Water detection Cleaning see chapter 12.1 Cleaning and Disinfecting the Touch Screen... -
Page 19: Minimum Distance Between Operating Elements For Multi-Touch Applications
BUILD-IN TOUCH TERMINAL TAE 1844 5.5 Minimum Distance between Operating Elements for Multi-touch Applications To guarantee smooth operation with multi-touch applications, buttons and control elements that should be operated at the same time must have the minimum clearance shown below (depending on the estimated touch point). -
Page 20: Environmental Conditions
TAE 1844 BUILD-IN TOUCH TERMINAL 5.6 Environmental Conditions Storage temperature -25 ... +85 °C Environmental temperature 0 ... +50 °C Humidity 10-95 %, non-condensing Installation altitude above sea 0-2000 m without derating level > 2000 m up to a maximum of 5000 m with derating of the maximum environmental temperature by 0.5 °C per 100 m... -
Page 21: Miscellaneous
BUILD-IN TOUCH TERMINAL TAE 1844 5.7 Miscellaneous Article number 12-200-1844 Standard designed according to UL Approvals CAUTION If the modular components (e.g. TP and PIM) are not bolted together,they are NOT ESD-protected and can only be unpacked and handled in an ESD-safe environment by trained personnel. -
Page 22: Interfaces
TAE 1844 BUILD-IN TOUCH TERMINAL 6 Interfaces 6.1 Front Connectors 6.1.1 X1: Supply (4-pin Phoenix RM 3.5) Function +24 V DC +24 V DC 6.1.2 X2: HMI Remote-IN (HMI-Link G2.1, Industrial Mini I/O) Function Tx+/DA+ Tx-/DA- Rx+/DB+ Rx-/DB- Page 20... -
Page 23: X3: Service
INFORMATION For service purposed only! For the service interface, only a separate cable that can be ordered from SIGMATEK may be used. Using a different cable can lead to malfunction and damage. 6.1.4 X4, X5: USB 2.0 (Type A) Function... -
Page 24: X6: Panel Interface Connector
8-pin Industrial Tyco Mini I/O (not included with delivery) For the service interface, only a separate cable that can be ordered from SIGMATEK may be used. Using a different cable can lead to malfunction and damage. X4, X5: USB 4-pin, Type A (downstream connector) (not included with delivery) -
Page 25: Status Display Leds
BUILD-IN TOUCH TERMINAL TAE 1844 6.3 Status Display LEDs LED Color Definition green DC OK 2 (OS dependent) Error The status LEDs of a PIM with EDGE2, for example, can be controlled via the application. With standard settings within an application or after starting the PIM’s operating system, the... -
Page 26: Mechanical Dimensions
TAE 1844 BUILD-IN TOUCH TERMINAL 7 Mechanical Dimensions Dimensions 464 x 285 x 54 mm (W x H x D) Material Front plate: 1.8 mm glass (touch screen) in black anodized aluminum frame Weight 4.1 kg Page 24 13.08.2024... - Page 27 BUILD-IN TOUCH TERMINAL TAE 1844 INFORMATION Due to the aluminum front, caution must be taken to ensure that it is not damaged during mounting via strong impacts on the edges or corners! 13.08.2024 Page 25...
-
Page 28: Assembly/Installation
TAE 1844 BUILD-IN TOUCH TERMINAL 8 Assembly/Installation 8.1 Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 29: Restricted Space Around Rear Trimming
BUILD-IN TOUCH TERMINAL TAE 1844 8.3.1 Restricted Space Around Rear Trimming Symbol Image 15“ A restricted area of 15 mm around the terminal must be ensured. This is required to exchange the module without removing the TP, tightening the screw terminals and ensuring cooling of the TP. -
Page 30: Required Cutout For Mounting The Terminal
TAE 1844 BUILD-IN TOUCH TERMINAL 8.3.2 Required Cutout for Mounting the Terminal Control cabinet cutout width X 453 mm Control cabinet cutout height Y 274 mm Maximum thickness of control 3 mm cabinet wall Z Page 28 13.08.2024... -
Page 31: Mounting Position
BUILD-IN TOUCH TERMINAL TAE 1844 8.3.3 Mounting Position Observe the mounting position of 60-120°. INFORMATION The specified installation distances may be reduced if appropriate measures and technical precautions are taken to dissipate the corresponding waste heat. 13.08.2024 Page 29... -
Page 32: Wiring
9 Wiring 9.1 Grounding The TAE 1844 is grounded via the TP. The device must be grounded to protective earth (PE) via the blade terminal provided. In addition, ensure that when installing into the control cabinet, a large grounding surface is provided. It is important to establish a low-Ohm connection to ground to ensure error-free function. -
Page 33: Esd Protection
BUILD-IN TOUCH TERMINAL TAE 1844 9.3 ESD Protection CAUTION The operator must ensure that no ESD interference affects the product. L'opérateur doit s'assurer qu'aucune interférence due à des décharges électrostatiques n'affecte le produit. 9.4 USB Interface The product has a USB interface. This interface can be used to connect various USB devices (keyboard, mouse, storage media, hubs, etc.). -
Page 34: Transport/Storage
TAE 1844 BUILD-IN TOUCH TERMINAL 10 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. -
Page 35: Storage
BUILD-IN TOUCH TERMINAL TAE 1844 11 Storage INFORMATION When not in use, store the device according to the storage conditions. See chapter 10 Transport/Storage. During storage, ensure that all protective covers (if available) are placed correctly, so that no contamination, foreign bodies or fluids enter the device. -
Page 36: Maintenance
TAE 1844 BUILD-IN TOUCH TERMINAL 12 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. Lors de l'entretien et de la maintenance, respectez les consignes de sécurité du chapitre 2 Basic Safety Directives. -
Page 37: Service
BUILD-IN TOUCH TERMINAL TAE 1844 WARNING If the device is contaminated with toxic or erosive chemicals, it must be carefully cleaned as quickly as possible to prevent personal injury and machine damage! Si l’appareil est contaminé par des produits chimiques toxiques ou érosifs, il doit être soigneusement nettoyé... -
Page 38: Position Series Label Sub Device
TAE 1844 BUILD-IN TOUCH TERMINAL 12.4 Position Series Label Sub Device Page 36 13.08.2024... -
Page 39: Modularity
BUILD-IN TOUCH TERMINAL TAE 1844 13 Modularity INFORMATION The device is not Hot-Plug capable and can be damaged when the supply is not disconnected before inserting or removing the PIM. Always disconnect the supply before inserting or removing. 13.1 Removing the PIM from the Touch Panel CAUTION This product is a sensitive electronic device. -
Page 40: Mounting The Pim Onto The Touch Panel
TAE 1844 BUILD-IN TOUCH TERMINAL 5. Slide the PIM in the direction of the upward as shown. 6. Remove the PIM from the TP. 13.2 Mounting the PIM onto the Touch Panel To mount the PIM on a TP, follow the steps below: 1. -
Page 41: Display „Burn-In" Effect
BUILD-IN TOUCH TERMINAL TAE 1844 14 Display „Burn-In“ Effect The “Burn-In” effect describes a pattern burned into the display after displaying the same contents over a longer period of time (e.g. a single screen). This effect is also described mostly as “image sticking”, “memory effect/sticking” or “ghost image”. -
Page 42: Disposal
TAE 1844 BUILD-IN TOUCH TERMINAL 15 Disposal INFORMATION Should you need to dispose of the device, the national regulations for disposal must be followed. The device appliance must not be disposed of as household waste. Page 40 13.08.2024... -
Page 43: Accessories
BUILD-IN TOUCH TERMINAL TAE 1844 16 Accessories 16.1 Touch Pen Description Order Number Touch pen with holder V3 01-690-059-3 13.08.2024 Page 41... - Page 44 TAE 1844 BUILD-IN TOUCH TERMINAL Changes Chart Change Affected Chapter Note date page(s) 30.07.2020 12.1 Cleaning and Disinfecting the Notes on disinfection added Touch Screen 20.08.2020 12.4 Position Series Label Sub Chapter added Device 31.08.2020 Introduction Text corrected 6.1 Front Connectors X9 =>...
