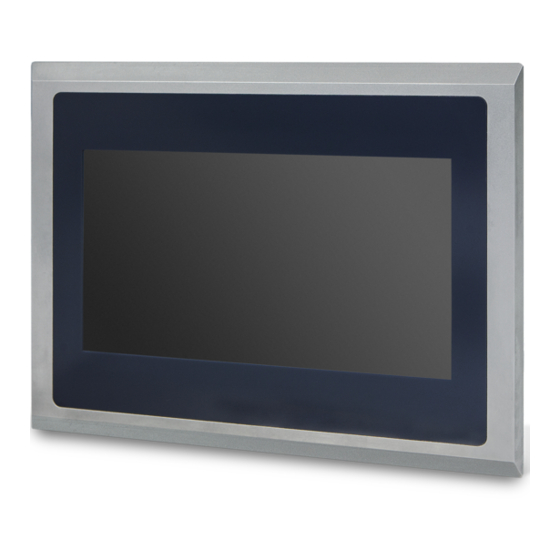

SIGMATEK ETT 736 Operating Manual

Touch operating terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ETT 736
Touch Operating Terminal
Operating Manual
Date of creation: 12.01.2021
Version date: 12.01.2022
Article number: 01-230-736-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETT 736 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGMATEK ETT 736

Summary of Contents for SIGMATEK ETT 736

  • Page 1 ETT 736 Touch Operating Terminal Operating Manual Date of creation: 12.01.2021 Version date: 12.01.2022 Article number: 01-230-736-E...
  • Page 2 (print, photocopy, microfilm or in any other process) without express permission. We reserve the right to make changes in the content without notice. SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in this handbook and assumes no responsibility for damages that occur through its...
  • Page 3 TOUCH OPERATING PANEL ETT 736 Touch Operating Panel ETT 736 The ETT 736 is an intelligent panel for visualizing, operating and monitoring automated processes. Process diagnosis, operating and monitoring auto- mated functions are simplified using this terminal. An analog resistive touch screen serves as the input medium for process data and parameters.

  • Page 4: Table Of Contents

    ETT 736 TOUCH OPERATING TERMINAL Contents Introduction ................6 Target Group/Purpose of this Manual ........6 Important Reference Documentation ......... 6 Contents of Delivery ..............6 Basic Safety Guidelines ............7 Symbols Used ................7 Disclaimer ..................9 General Safety Guidelines ............10 Software/Training ...............
  • Page 5 TOUCH OPERATING PANEL ETT 736 Miscellaneous ................18 Interfaces ................19 Bottom Connections..............19 5.1.1 X1: Supply (4-pin Phoenix RM 3.5) ........... 20 5.1.2 X2, X3: 8 Digital In- and Outputs (8-pin Phoenix RM 3.5 mm) ..20 5.1.3 X4, X5: Ethernet 10/100 (RJ45) ............21 5.1.4...
  • Page 6 ETT 736 TOUCH OPERATING TERMINAL CAN Bus Setup ..............30 CAN Bus Station Number ............30 Number of CAN Bus Participants ..........30 CAN Bus Data Transfer Rate ............. 30 CAN Bus Termination ..............31 10 Process Diagram ..............32 11 Status and Error Messages ...........33 12 Transport/Storage ..............41...
  • Page 7 TOUCH OPERATING PANEL ETT 736 17.1 Buffer Battery ................50 18 Disposal ................. 50 12.01.2022 Page 5...

  • Page 8: Introduction

    ETT 736 TOUCH OPERATING TERMINAL Introduction Target Group/Purpose of this Manual This operating manual contains all information required to operate this product. This manual is intended for: • Project planners • Technicians • Commissioning engineers • Machine operators • Maintenance/test technicians General knowledge of automation technology is required.

  • Page 9: Basic Safety Guidelines

    TOUCH OPERATING PANEL ETT 736 Basic Safety Guidelines Symbols Used The following symbols are used in the operator documentation for warning and danger mes- sages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken.
  • Page 10 ETT 736 TOUCH OPERATING TERMINAL Danger for ESD-sensitive components. Les signes de danger pour les com- posants sensibles aux décharges électrostatiques. Page 8 12.01.2022...

  • Page 11: Disclaimer

    Please thoroughly read the corresponding documentation and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through non-compliance with these instructions or applicable regulations. 12.01.2022 Page 9...

  • Page 12: General Safety Guidelines

    Operate the unit with devices and accessories approved by SIGMATEK only. CAUTION Handle the device with care and do not drop or let fall.

  • Page 13: Software/Training

    TOUCH OPERATING PANEL ETT 736 Software/Training The application is created with the LASAL CLASS 2 and LASAL SCREEN software. Training for the LASAL development environment, with which the product can be configured, is provided. Information on our training schedule can be found on our website.

  • Page 14: Norms And Guidelines

    The product was constructed in compliance with the following European Union guidelines and tested for conformity. 3.1.1 EU Declaration of Conformity EU Declaration of Conformity The product ETT 736 conforms to the following European guidelines: • 2014/35/EU Low-voltage guideline • 2014/30/EU “Electromagnetic Compatibility” (EMC guideline) •...

  • Page 15: Technical Data

    TOUCH OPERATING PANEL ETT 736 Technical Data Performance Data Processor EDGE2 Technology Processor cores Internal cache 32-kbyte L1 Instruction Cache 32-kbyte L1 Data Cache 512-kbyte L2 Cache Internal program and data 512-Mbyte DDR3 memory (RAM) Internal remnant data memory 512-kbyte SRAM (battery buffered)

  • Page 16: Digital Inputs

    ETT 736 TOUCH OPERATING TERMINAL Digital Inputs Number Input voltage typically +24 V maximum +30 V Signal level low: < +4.5 V high: > +14 V Switching threshold typically +11 V Input current typically 5 mA at +24 V Input delay...

  • Page 17: Electrical Requirements

    TOUCH OPERATING PANEL ETT 736 Electrical Requirements Supply voltage typically +24 V DC ±20 % (SELV/PELV) UL: Class 2 or LVLC Protection class Current consumption of (+24 V) typically 350 mA maximum 560 mA power supply (without externally connected de-...

  • Page 18: Display

    ETT 736 TOUCH OPERATING TERMINAL Display 7” TFT LCD color display Type Resolution WVGA 800 x 480 pixels Color depth 16 Bit RGB (65K colors) LCD mode normal white LCD Polarizer transmissive Pixel size 0.1926 x 0.1790 mm Active range 154.08 x 85.92 mm...

  • Page 19: Input

    Control Unit Operating panel Touch screen (analog resistive) Maximum number of fingers Operation with thin gloves SIGMATEK touch pen (passive) Handwriting recognition Palm recognition spray water detection moisture detection Cleaning See chapter: Cleaning and Disinfecting the Touch Screen...

  • Page 20: Environmental Conditions

    ETT 736 TOUCH OPERATING TERMINAL Environmental Conditions Storage temperature -10 ... +85 °C Environmental temperature 0 ... +45 °C Humidity 10-95 %, non-condensing Installation altitude above sea 0-2000 m without derating level > 2000 m up to a maximum of 5000 m with derating of the maximum envi- ronmental temperature by 0.5 °C per 100 m...

  • Page 21: Interfaces

    TOUCH OPERATING PANEL ETT 736 Interfaces Bottom Connections 12.01.2022 Page 19...

  • Page 22: X1: Supply (4-Pin Phoenix Rm 3.5)

    ETT 736 TOUCH OPERATING TERMINAL 5.1.1 X1: Supply (4-pin Phoenix RM 3.5) Function +24 V DC DIG IOs +24 V DC 5.1.2 X2, X3: 8 Digital In- and Outputs (8-pin Phoenix RM 3.5 mm) X2: Pin Assignment Function output 1...

  • Page 23: X4, X5: Ethernet 10/100 (Rj45)

    Problems can arise if a control is connected to an IP network, which contains devices that are not running with a SIGMATEK operating system. With such devices, Ethernet packets could be sent to the control with such a high fre- quency (i.e.

  • Page 24: X7: Microsd Card

    Order Number 512-Mbyte 12-630-055 It is recommended that only storage media provided by SIGMATEK be used. The number of read and write actions have a significant influence on the lifespan of the storage media. The microSD card is not intended as an exchangeable medium and should therefore be removed from the card holder for maintenance purposed only.

  • Page 25: X9 Usb 2.0 (Type A)

    TOUCH OPERATING PANEL ETT 736 5.1.7 X9 USB 2.0 (Type A) Function +5 V, I = 500 mA out, max. It should be noted that many of the USB devices on the market do not comply with USB specifications; this can lead to device malfunctions. It is also possible that these devices will not be detected at the USB port or function correctly.

  • Page 26: Mechanical Dimensions

    ETT 736 TOUCH OPERATING TERMINAL Mechanical Dimensions Dimensions 208 x 163 x 42.8 mm (W x H x D) Material front plate: Front foil with underlying touch sensor in glass-beaded stainless steel frame housing: stainless steel Weight 1.15 kg Page 24...

  • Page 27: Assembly/Installation

    TOUCH OPERATING PANEL ETT 736 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3Contents of Delivery for more information. On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system.

  • Page 28: Required Cutout For Mounting The Terminal

    ETT 736 TOUCH OPERATING TERMINAL Required Cutout for Mounting the Terminal General positional tolerance for boreholes: ±0.1 Hexagonal nut: ISO4032-M5-8 Washers: ISO7091-5-100HV Tightening torque: 5-6 Nm Control cabinet cutout width X 170 mm Control cabinet cutout height Y 120 mm...

  • Page 29: Wiring

    TOUCH OPERATING PANEL ETT 736 Wiring Protective Earth Connection WARNING The terminal must be grounded to protective earth (PE) via the M3 threaded bolts. In addition, ensure that when installing into the control cabinet, a large grounding surface is provided. It is essential to establish a low-Ohm connection with ground to ensure error-free function.
  • Page 30 ETT 736 TOUCH OPERATING TERMINAL All cable shielding should also be placed 10 cm before the remote station or device over wide surface. Page 28 12.01.2022...

  • Page 31: Esd Protection

    TOUCH OPERATING PANEL ETT 736 ESD Protection Typically, USB devices (keyboard, mouse, etc.) are equipped with non- shielded cables. These devices are disrupted by ESD and in some instances, no longer function. Before any device is connected to, or disconnected from the product, the potential should be equalized (by touching the control cabinet or ground ter- minal).

  • Page 32: Can Bus Setup

    ETT 736 TOUCH OPERATING TERMINAL CAN Bus Setup This section explains how to configure a CAN bus correctly. The following parameters must first be set: Station number and data transfer rate. CAN Bus Station Number Each CAN bus station is assigned its own station number. With this station number, data can be exchanged with other stations connected to the bus.

  • Page 33: Can Bus Termination

    TOUCH OPERATING PANEL ETT 736 CAN Bus Termination In a CAN bus system, both end modules must be terminated. This is necessary to avoid transmission errors caused by reflections in the line. The termination is made by an internal 120 Ω resistor between CAN A (LOW) and CAN B (HIGH).

  • Page 34: Process Diagram

    ETT 736 TOUCH OPERATING TERMINAL 10 Process Diagram Page 32 12.01.2022...

  • Page 35: Status And Error Messages

    TOUCH OPERATING PANEL ETT 736 11 Status and Error Messages Status and error messages are displayed in the LASAL CLASS software status test. POINTER or CHKSUM messages are shown on the terminal screen. Number Message Definition Cause/solution RUN RAM The user program is currently running in Info RAM.
  • Page 36 ETT 736 TOUCH OPERATING TERMINAL WATCHDOG The program was interrupted via the Possible Causes: watchdog logic. User program interrupts blocked over a longer period of time (STI command forgotten). Programming error in a hardware interrupt. INB, OUTB, INW, OUTW instruc- tions used incorrectly.
  • Page 37 TOUCH OPERATING PANEL ETT 736 STOP BRKPT The CPU was stopped by a breakpoint in Info the program. CPU STOP The CPU was stopped by the program- Info ming software. INT ERROR The CPU has triggered a false interrupt Causes:...
  • Page 38 OP INSTALLED The operating system has been rein- Info stalled. OS TOO LONG The operating system cannot be loaded; Restart, report error to SIGMATEK too little memory. NO OPERATING Boot loader message. Restart, report error to SIGMATEK SYSTEM No operating system found in RAM.
  • Page 39 An error has occurred during a floating- ERROR point operation. DIAS-RISC-ERROR Error from the Intelligent DIAS Master. Restart, report error to SIGMATEK INTERNAL ERROR An internal error has occurred, all appli- Restart, report error to SIGMATEK cations are stopped. FILE ERROR An error has occurred during a file opera- tion.
  • Page 40 ETT 736 TOUCH OPERATING TERMINAL C-DIAS ERROR 70 .. A connection error with a C-DIAS module Cause: has occurred. The cause of the error is docu- mented in the log file Solution: This depends on the cause S-DIAS ERROR A connection error with an S-DIAS Possible Causes: module has occurred.
  • Page 41 TOUCH OPERATING PANEL ETT 736 C_UNKNOWN_CID An unknown object from a stand-alone or embedded object, or an unknown base class was detected. C_UNKNOWN_CONSTR The operating system class cannot be created; the operating system is probably wrong. C_UNKNOWN_OBJECT Indicates an unknown object in an inter- preter program;...
  • Page 42 ETT 736 TOUCH OPERATING TERMINAL CONTINUE PRERUN The application is started. PRERESET The application is ended. CONNECTION BREAK Page 40 12.01.2022...

  • Page 43: Transport/Storage

    TOUCH OPERATING PANEL ETT 736 12 Transport/Storage This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! During transport, temperature and humidity fluctuations may occur.

  • Page 44: Maintenance

    ETT 736 TOUCH OPERATING TERMINAL 14 Maintenance During maintenance as well as servicing, the safety instructions from chapter 2must be observed. 14.1 Cleaning and Disinfecting the Touch Screen CAUTION Before cleaning and disinfecting he touch screen, it must be deactivated in order to prevent triggering functions or commands unintentionally;...

  • Page 45: Service

    TOUCH OPERATING PANEL ETT 736 14.2 Service This product was constructed for low-maintenance operation. 14.2.1 Calibrating the Touch Screen The touch screen is calibrated at the factory. You should therefore only recalibrate the touch screen when press-point changes are noticed.

  • Page 46: Buffer Battery

    ETT 736 TOUCH OPERATING TERMINAL 15 Buffer Battery A lithium battery is installed at the manufacturer. The battery has enough capacity to preserve data in the absence of a supply voltage for approximately 5 years. COMPANY DATA Lithium battery RENATA 3.0 V / 235 mAh...

  • Page 47: Exchanging The Battery: Option 1

    TOUCH OPERATING PANEL ETT 736 15.2 Exchanging the Battery: Option 1 1. Disconnect the ETT 736 supply 2. Loosen the four locking screws (Torx) on the back of the terminal with a TX9 screwdriver. 12.01.2022 Page 45...
  • Page 48 6. Insert the new battery with the correct polarity (plus side facing the back of the termi- nal) Disconnect the supply, replace the back panel of the terminal and tighten the lock- ing screws. 7. Connect ETT 736 supply Page 46 12.01.2022...

  • Page 49: Exchanging The Battery: 2. Option

    1. The SRAM data are saved in the Flash using the CLI command SRAM Save. CAUTION If the data is not previously saved, the settings in the terminal are lost 2. Disconnect the ETT 736 supply 2. Loosen the four locking screws (Torx) on the back of the terminal with a TX9 screwdriver.
  • Page 50 ETT 736 TOUCH OPERATING TERMINAL 3. Lift the rear panel of the terminal. 5. Using the strap, remove the battery from the holder. 6. Insert the new battery with the correct polarity (plus side facing the back of the terminal) and replace the back panel of the terminal and tighten the screws.

  • Page 51: Display "Burn-In" Effect

    TOUCH OPERATING PANEL ETT 736 16 Display “Burn-In” Effect The “Burn-In” effect describes a pattern burned into the display after displaying the same contents over a longer period of time (e.g. a single screen). This effect is also described mostly as “image sticking”, “memory effect/sticking” or “ghost image”.

  • Page 52: Accessories

    ETT 736 TOUCH OPERATING TERMINAL 17 Accessories 17.1 Buffer Battery Description Order Number Renata CRC2032 (235 mAh) 01-690-055 18 Disposal When disposing of the panel, the national electronic scrap regu- lation must be observed. The panel cannot be discarded with domestic waste.
  • Page 53 TOUCH OPERATING PANEL ETT 736 Documentation Changes Change date Affected Chapter Note pages 12.01.2022 Page 51...
  • Page 54 ETT 736 TOUCH OPERATING TERMINAL Page 52 12.01.2022...
