Summary of Contents for SIGMATEK ETT 2144
- Page 1 ETT 2144 Build-in Touch Terminal Operating Manual Date of creation: 16.01.2020 Version date: 12.02.2020 Article number: 01-230-2144-E...
- Page 2 (print, photocopy, microfilm or in any other process) without express permission. We reserve the right to make changes in the content without notice. SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in this handbook and assumes no responsibility for damages that occur through its...

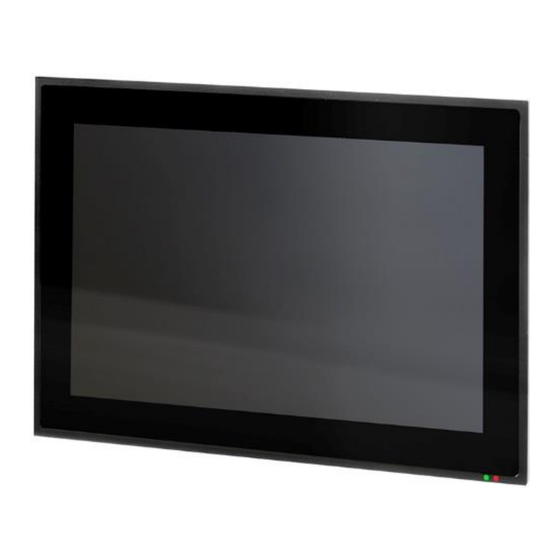

- Page 3 ETT 2144 Build-in Touch Terminal ETT 2144 The ETT 2144 is an intelligent panel for visualizing, operating and monitoring automated pro- cesses. A capacitive touch screen serves as the input medium for process data and parameters. The output is shown on a 21.5" TFT color display.
-
Page 4: Table Of Contents
ETT 2144 BUILD-IN TOUCH TERMINAL Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Guidelines ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Guidelines ............9 Software/Training ............... - Page 5 BUILD-IN TOUCH TERMINAL ETT 2144 Mechanical Dimensions ............17 Interfaces ................18 Connections Bottom..............18 6.1.1 X1: Supply (4-pin Phoenix RM 3.5) ........... 18 Left Side Connectors ..............19 6.2.1 X2: DisplayPort Output V1.2a ............19 6.2.2 X3, X4: Ethernet 1, 2 10/100/1000 (RJ45) ........20 6.2.3...
- Page 6 ETT 2144 BUILD-IN TOUCH TERMINAL 10.4 USB Interface Connections ............28 11 Display “Burn-In” Effect ............29 12 Buffer Battery .................30 12.1 Exchanging the Battery .............. 31 13 Setting the IP Addresses ............32 13.1 IP address Network Interfaces ..........32 13.2 IP Address Browser ..............
-
Page 7: Introduction
BUILD-IN TOUCH TERMINAL ETT 2144 Introduction Target Group/Purpose of this Operating Manual This operating manual contains all information required to operate this product. This operating manual is intended for: • Project planners • Technicians • Commissioning engineers • Machine operators •... -
Page 8: Basic Safety Guidelines
ETT 2144 BUILD-IN TOUCH TERMINAL Basic Safety Guidelines Symbols Used The following symbols are used in the operator documentation for warning and danger mes- sages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 BUILD-IN TOUCH TERMINAL ETT 2144 Danger for ESD-sensitive components. Les signes de danger pour les composants sensibles aux décharges électrostatiques. 12.02.2020 Page 7...
-
Page 10: Disclaimer
Please thoroughly read the corresponding documentation and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through non-compliance with these instructions or applicable regulations. Page 8... -
Page 11: General Safety Guidelines
Operate the unit with devices and accessories approved by SIGMATEK only. CAUTION Handle the device with care and do not drop or let fall. -
Page 12: Software/Training
ETT 2144 BUILD-IN TOUCH TERMINAL Software/Training The application is created with the software LASAL CLASS 2 and LASAL SCREEN Editor. Training for the LASAL development environment, with which the product can be configured, is provided. Information on our training schedule can be found on our website. -
Page 13: Norms And Guidelines
The product was constructed in compliance with the following European Union guidelines and tested for conformity: 3.1.1 EU Declaration of Conformity EU Declaration of Conformity The product ETT 2144 conforms to the following European guidelines: • 2014/35/EU Low-voltage guideline • 2014/30/EU “Electromagnetic Compatibility” (EMC guideline) •... -
Page 14: Technical Data
ETT 2144 BUILD-IN TOUCH TERMINAL Technical Data Performance Data Processor Intel® Celeron® J4005 Processor cores Processor clock 2.0-2.7 GHz Internal cache 4 Mbytes Internal program and data 2-Gbyte DDR4 (SODIMM) memory (RAM) Graphics Intel® UHD Graphics 600 Hard drive 32-Gbyte SATA M.2 SSD Interfaces 4x USB 2.0 (Type A) -
Page 15: Electrical Requirements
BUILD-IN TOUCH TERMINAL ETT 2144 Electrical Requirements Supply voltage +18-30 V DC (SELV/PELV), typically+24 V DC UL: Class 2 or LVLC Current consumption of (+24 V) typically 1500 mA maximum 2000 mA power supply (without externally connected de- (with external devices connected) -
Page 16: Display
ETT 2144 BUILD-IN TOUCH TERMINAL Display 21.5” TN color display Type Resolution FullHD 1920 x 1080 pixels Color depth 24-bit RGB LCD mode normally black LCD Polarizer transmissive Pixel size 0.248 x 0.248 mm Active surface 476.64 x 268.11 Backlighting... -
Page 17: Minimum Distance Between Operating Elements For Multi- Touch Applications
BUILD-IN TOUCH TERMINAL ETT 2144 Minimum Distance between Operating Elements for Multi-touch Appli- cations To guarantee smooth operation with multitouch applications, buttons and control elements that should be operated at the same time must have the minimum clearance shown below (depending on the estimated touch point). -
Page 18: Environmental Conditions
Operating system Salamander Default IP address Intel Ethernet (X3) automatic (DHCP) Realtek Ethernet (X4) automatic (DHCP) Default browser address 10.10.150.1 Approvals the ETT 2144 consists of a TP 2161 ( (E247993)) and a PIM 041 (UL in preparation) Page 16 12.02.2020... -
Page 19: Mechanical Dimensions
BUILD-IN TOUCH TERMINAL ETT 2144 Mechanical Dimensions Dimensions 539 x 331 x 90 mm (W x H x D) Material front plate: 2.8 mm glass (touch screen) in black anodized aluminum frame housing: sheet steel heat sink: anodized aluminum Weight 6.5 kg... -
Page 20: Interfaces
ETT 2144 BUILD-IN TOUCH TERMINAL Interfaces Connections Bottom Symbol Image ETT 1544 6.1.1 X1: Supply (4-pin Phoenix RM 3.5) Function +24 V DC +24 V DC Page 18 12.02.2020... -
Page 21: Left Side Connectors
BUILD-IN TOUCH TERMINAL ETT 2144 Left Side Connectors Symbol Image ETT 1544 6.2.1 X2: DisplayPort Output V1.2a Function Lane 0 (p) Lane 0 (n) Lane 1 (p) Lane 1 (n) Lane 2 (p) Lane 2 (n) Lane 3 (p) Lane 3 (n) -
Page 22: X3, X4: Ethernet 1, 2 10/100/1000 (Rj45)
ETT 2144 BUILD-IN TOUCH TERMINAL 6.2.2 X3, X4: Ethernet 1, 2 10/100/1000 (RJ45) Function 6.2.3 X5-X8: USB 2.0 (Type A) Function +5 V, I = 500 mA out,max It should be noted that many of the USB devices on the market do not comply with USB specifications;... -
Page 23: Display
BUILD-IN TOUCH TERMINAL ETT 2144 Display Status LEDs Front LED Status Definition green DCOK not available 12.02.2020 Page 21... -
Page 24: Transport/Storage
ETT 2144 BUILD-IN TOUCH TERMINAL Transport/Storage This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! During transport, temperature and humidity fluctuations may occur. Ensure that no moisture condenses within or on the device be letting the device cli- matize to the room temperature while turned off. -
Page 25: Assembly/Installation
BUILD-IN TOUCH TERMINAL ETT 2144 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3Contents of Delivery for more information. On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 26: Restricted Space Around Rear Trimming
ETT 2144 BUILD-IN TOUCH TERMINAL Restricted Space Around Rear Trimming Symbol Image ETT 1544 A restricted area of 15 mm around the terminal must be ensured. This is required to mount the terminal onto the machine using the screw terminals provided and when necessary, ex- change the module without having to remove the entire device. -
Page 27: Required Cutout For Mounting The Terminal
BUILD-IN TOUCH TERMINAL ETT 2144 Required Cutout for Mounting the Terminal Control cabinet cutout width X 528 mm Control cabinet cutout height Y 320 mm Maximum thickness of control 3 mm cabinet wall Z 12.02.2020 Page 25... -
Page 28: Mounting Position
ETT 2144 BUILD-IN TOUCH TERMINAL Mounting Position Observe the mounting position of 60-120°. The specified installation distances may be reduced if appropriate measures and technical precautions are taken to dissipate the corresponding waste heat. Page 26 12.02.2020... -
Page 29: Wiring
BUILD-IN TOUCH TERMINAL ETT 2144 10 Wiring 10.1 Ground The device must be grounded to protective earth (PE) via the blade terminal provided. In addition, ensure that when installing into the control cabinet, a large grounding surface is provided. It is important to establish a low-Ohm connection to ground to ensure error-free function. -
Page 30: Shielding
ETT 2144 BUILD-IN TOUCH TERMINAL 10.2 Shielding For Ethernet, CAT5e-compliant cables are recommended. The cable shielding is connected to ground via the RJ45 connector. Noise signals can then be prevented from reaching the electronics and affecting the function. 10.3 ESD Protection Typically, USB devices (keyboard, mouse etc.) are not equipped with... -
Page 31: Display "Burn-In" Effect
BUILD-IN TOUCH TERMINAL ETT 2144 11 Display “Burn-In” Effect The “Burn-In” effect describes a pattern burned into the display after displaying the same contents over a longer period of time (e.g. a single screen). This effect is also described mostly as “image sticking”, “memory effect/sticking” or “ghost image”. -
Page 32: Buffer Battery
ETT 2144 BUILD-IN TOUCH TERMINAL 12 Buffer Battery The exchangeable buffer battery ensures that the clock time and customer-defined BIOS settings are preserved in the absence of a supply voltage. A lithium battery is installed at the manufacturer. The battery has enough capacity to preserve data in the absence of a supply voltage for up to 5 years. -
Page 33: Exchanging The Battery
BUILD-IN TOUCH TERMINAL ETT 2144 12.1 Exchanging the Battery Turn off the device supply. Remove the locking screws in the battery cover with a TX10 Torx screwdriver. Remove the battery cover. To remove the battery from the holder press the gold tab of the battery holder away from the battery. -
Page 34: Setting The Ip Addresses
ETT 2144 BUILD-IN TOUCH TERMINAL 13 Setting the IP Addresses 13.1 IP address Network Interfaces The device is preset, so that the IP addresses of the Ethernet interfaces are obtained via DHCP automatically. If this is not desired, the IP address can be changed as follows: Close the browser, which opens during the start, by connecting a keyboard to the device and pressing ALT+F4. -
Page 35: Maintenance
BUILD-IN TOUCH TERMINAL ETT 2144 14 Maintenance During maintenance as well as servicing, the safety instructions from chapter 2 must be observed. 14.1 Cleaning the Touch Screen CAUTION Before cleaning the touch screen, the ETT must be turned off in order to prevent triggering functions or commands unintentionally! The touch screen can only be cleaned with a soft, damp cloth. -
Page 36: Service
ETT 2144 BUILD-IN TOUCH TERMINAL 14.2 Service This product was constructed for low-maintenance operation. 14.2.1 Calibrating the Touch Screen The touch screen is calibrated at the factory. You should therefore only recalibrate the touch screen when press-point changes are noticed. -
Page 37: Modularity
BUILD-IN TOUCH TERMINAL ETT 2144 15 Modularity Through its modular construction, the device is prepared for a simple exchange of compo- nents. This makes it possible in the future, to adapt the touch panel (TP) or panel interface module (PIM) to actual system requirements. -
Page 38: Removing The Pim From The Touch Panel
ETT 2144 BUILD-IN TOUCH TERMINAL 15.1 Removing the PIM from the Touch Panel This product is a sensitive electronic device. When mounting, as well as dis- mantling, note that you come into contact with ESD-sensitive areas of the device. The applicable ESD measures must be taken! -
Page 39: Mounting The Pim Onto The Touch Panel
BUILD-IN TOUCH TERMINAL ETT 2144 15.2 Mounting the PIM onto the Touch Panel To mount the PIM on a TP, follow the steps below: Ensure that an ESD-compliant working method is followed (ESD armband, ESD clothing). Disconnect the device from the supply. -
Page 40: Disposal
ETT 2144 BUILD-IN TOUCH TERMINAL 16 Disposal Should you need to dispose of the device, the national electronic scrap regulation must be observed. The panel cannot be discarded with domestic waste. Page 38 12.02.2020... -
Page 41: Accessories
BUILD-IN TOUCH TERMINAL ETT 2144 17 Accessories 17.1 Battery Description Order Number Lithium battery RENATA with 01-690-055 20 mm tab (one-sided) 12.02.2020 Page 39... - Page 42 ETT 2144 BUILD-IN TOUCH TERMINAL Documentation Changes Change date Affected page(s) Chapter Note 31.01.2020 Document editing 12.02.2020 2.4 Software/Train- Chapter added 4.7 Miscellaneous Salamander operating system 14.2.1 Calibrating CLI command the Touch Screen Page 40 12.02.2020...
