  • Page 1 ETT 771 Build-in Touch Terminal Operating Manual Date of creation: 30.10.2015 Version date: 15.07.2020 Article number: 06-230-771-E...
  • Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsi- ble for technical or printing errors in the handbook and assumes no responsibility for damages that occur through...

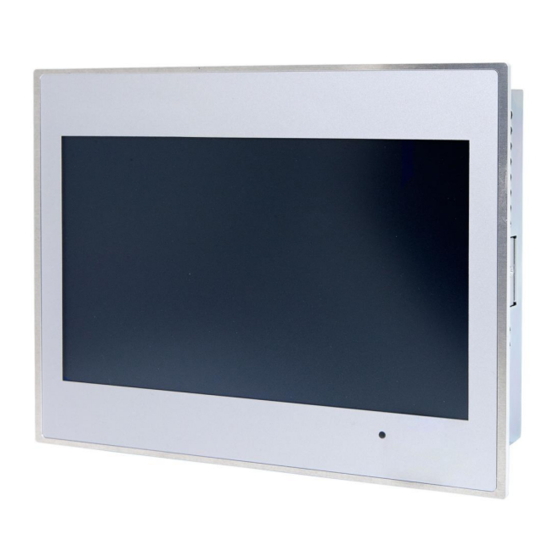

  • Page 3 BUILD-IN TOUCH TERMINAL ETT 771 Build-in Touch Terminal ETT 771 The build-in touch terminal is an intelligent panel for visualizing, operating and monitoring automated processes. A resistive touch screen serves as the input medium for process data and parameters. The output is shown on a 7"...

  • Page 4: Table Of Contents

    ETT 771 BUILD-IN TOUCH TERMINAL Contents Technical Data ................ 4 Performance Data ................. 4 Electrical Requirements ............... 5 Terminal ..................5 Environmental Conditions ............5 Display 7” WVGA incl. Touch ............6 Miscellaneous ................6 Mechanical Dimensions ............7 Up to Hardware 3.0 ............... 7 Starting with Hardware 4.0 ............
  • Page 5 BUILD-IN TOUCH TERMINAL ETT 771 Wiring Guidelines ..............19 Ground ..................19 Shielding ..................19 ESD Protection ................19 USB Interface Connections ............19 RS485 ................... 20 CAN Bus Setup ..............21 CAN Bus Station Number ............21 Number of CAN Bus Participants ..........21 CAN Bus Data Transfer Rate .............

  • Page 6: Technical Data

    ETT 771 BUILD-IN TOUCH TERMINAL Technical Data Performance Data Processor EDGE2 Technology Processor cores Internal cache 32-kbyte L1 Instruction Cache 32-kbyte L1 Data Cache 512-kbyte L2 Cache Internal program and 256-Mbyte data memory (DDR3 RAM) Internal remnant 256-kbyte SRAM (battery buffered)

  • Page 7: Electrical Requirements

    BUILD-IN TOUCH TERMINAL ETT 771 Electrical Requirements Supply voltage typically +24 V DC (+18-30 V DC) Current consumption of power typically 180 mA maximum 290 mA supply at +24 V (without externally connected devices) (with external devices connected) Current consumption of...

  • Page 8: Display 7" Wvga Incl. Touch

    ETT 771 BUILD-IN TOUCH TERMINAL Display 7” WVGA incl. Touch 7“ TFT color display Type Resolution WVGA 800 x 480 pixels Color depth 16 Bit RGB (65K colors) LCD mode normal white LCD Polarizer transmissive Pixel size 0.1926 x 0.1790 mm...

  • Page 9: Mechanical Dimensions

    BUILD-IN TOUCH TERMINAL ETT 771 Mechanical Dimensions Up to Hardware 3.0 15.07.2020 Page 7...

  • Page 10: Starting With Hardware 4.0

    ETT 771 BUILD-IN TOUCH TERMINAL Starting with Hardware 4.0 Page 8 15.07.2020...

  • Page 11: Connector Layout

    BUILD-IN TOUCH TERMINAL ETT 771 Connector Layout Front 3.1.1 Status LEDs green from activation of the voltage supply until processing of the auto- exec.lsl when the application is running (except when controlled through application differently) BLINKS in the CLI, while processing the autoexec.lsl until the application is...

  • Page 12: Backside

    ETT 771 BUILD-IN TOUCH TERMINAL Backside Up to hardware 3.0 Starting with hardware 4.0 X1: Power supply (4-pin Phoenix Contact) Function +24 V DC +24 V DC X2: Ethernet 10/100 (RJ45) Function Tx + Tx - Rx + n.c. n.c.
  • Page 13 By configuring the packet filter (Firewall or Router) accordingly however, it is possible to connect a network with SIGMATEK hardware to a third party network without trig- gering the error mentioned above.
  • Page 14 ETT 771 BUILD-IN TOUCH TERMINAL X3: COM 1 (D-Sub) Function RS232 X4: CAN 1 (6-pin Weidmüller) Function CAN A (LOW) CAN B (High) CAN A (LOW) CAN B (High) CAN GND n.c. X5: COM 3 (6-pin Weidmüller) Function RS485/ModBus RS485/Modbus-A...

  • Page 15: Applicable Connectors

    CD/DAT3 +3V3 DAT0 DAT1 It is recommended that only storage media provided by SIGMATEK (CompactFlash cards, microSD cards etc.) be used. Order number for 512 MByte EDGE2: 12-630-055 Il est recommandé de n’utiliser que les supports de stockage approuvés par SIGMATEK (compact flash, microSD, etc.).

  • Page 16: Cooling

    ETT 771 BUILD-IN TOUCH TERMINAL Cooling The terminal's power loss can reach up to 7.5 Watts. To ensure the necessary air circula- tion for cooling, the following mounting instructions must be followed! Mounting Instructions The following distance from the housing should be maintained:...
  • Page 17 BUILD-IN TOUCH TERMINAL ETT 771 A mounting position of 60-120° is also required. 15.07.2020 Page 15...

  • Page 18: Buffer Battery

    ETT 771 are preserved in the absence of a supply voltage. A lithium battery is installed at the manufacturer. After delivery of the ETT 771 and storage of one year, the lifespan of the battery reaches 10 years. Assuming that the device is in operation (supply connected) most of the time.

  • Page 19: Exchanging The Battery: 1. Option

    BUILD-IN TOUCH TERMINAL ETT 771 Exchanging the Battery: 1. Option 1. Keep supply plugged in 2. Loosen the battery cover screws with a cross-head screw driver and remove cover. When exchanging the battery, caution must be taken to avoid a short circuit. Other- wise, a defect can be caused in the terminal! 3.

  • Page 20: Exchanging The Battery: 2. Option

    The commands can be executed via the remote CLI of LASAL Class 2 or a direct input on the device. CAUTION: If data are not first before, the terminal settings are lost. 2. Disconnect the ETT 771 supply. 3. Loosen the battery cover screws with a cross-head screw driver and remove cover.

  • Page 21: Wiring Guidelines

    BUILD-IN TOUCH TERMINAL ETT 771 Wiring Guidelines Ground The terminal must be connected to ground through the assembly on the control cabinet or over the connection provided. It is important to create a low-ohm ground connection, only then can error-free operation be guaranteed. The ground connection should have a maxi- mum cross section and the largest (electrical) surface possible.
  • Page 22 ETT 771 BUILD-IN TOUCH TERMINAL RS485 • Because the RS485 requires a defined quiescent point, a pull-up and pull-down resistor is required in addition to the termination resistor. The resistors are already implement- ed in the device. • The 120 Ω terminating resistors must be placed at each bus end.

  • Page 23: Can Bus Setup

    BUILD-IN TOUCH TERMINAL ETT 771 CAN Bus Setup This section explains how to correctly configure the CAN bus. The following parameters must first be set: Station number and data transfer rate. CAN Bus Station Number Each CAN bus station is assigned its own station number. With this station number, data can be exchanged with other stations connected to the bus.

  • Page 24: Can Bus Termination

    ETT 771 BUILD-IN TOUCH TERMINAL CAN Bus Termination In a CAN bus system, both end modules must be terminated. This is necessary to avoid transmission errors caused by reflections in the line. The termination is made by an internal 120 Ω resistor between CAN A (LOW) and CAN B (HIGH).

  • Page 25: Process Diagram

    BUILD-IN TOUCH TERMINAL ETT 771 10 Process Diagram 15.07.2020 Page 23...

  • Page 26: Status And Error Messages

    ETT 771 BUILD-IN TOUCH TERMINAL 11 Status and Error Messages Status and error messages are displayed in the LASAL CLASS software status test. POINTER or CHKSUM messages can also be shown on the terminal screen. Number Message Definition Cause/Solution RUN RAM...
  • Page 27 BUILD-IN TOUCH TERMINAL ETT 771 WATCHDOG The program was interrupted via the Possible Causes: watchdog logic. User program interrupts blocked over a longer period of time (STI command forgotten) Programming error in a hardware interrupt. INB, OUTB, INW, OUTW instruc- tions used incorrectly.
  • Page 28 ETT 771 BUILD-IN TOUCH TERMINAL STOP BRKPT The CPU was stopped by a breakpoint Info in the program. CPU STOP The CPU was stopped by the program- Info ming software. INT ERROR The CPU has triggered a false interrupt Cause:...
  • Page 29 OP INSTALLED The operating system has been rein- Info stalled. OS TOO LONG The operating system cannot be loaded; Restart; report error to SIGMATEK. too little memory. NO OPERATING Boot loader message. Restart; report error to SIGMATEK. SYSTEM No operating system found in RAM.
  • Page 30 An error has occurred during a floating- ERROR point operation. DIAS-RISC-ERROR Error from the Intelligent DIASMaster. Restart; report error to SIGMATEK. INTERNAL ERROR An internal error has occurred, all appli- Restart; report error to SIGMATEK. cations are stopped. FILE ERROR An error has occurred during a file operation.
  • Page 31 BUILD-IN TOUCH TERMINAL ETT 771 C-DIAS ERROR A connection error with a C-DIAS mod- Cause: ule has occurred. The cause of the error is docu- mented in the log file Solution: This depends on the cause S-DIAS ERROR A connection error with a S-DIAS mod- Possible causes: ule has occurred.
  • Page 32 ETT 771 BUILD-IN TOUCH TERMINAL C_UNKNOWN_CID An unknown object from a stand-alone or embedded object, or an unknown base class was detected. C_UNKNOWN_CONSTR The operating system class cannot be created; the operating system is proba- bly wrong. C_UNKNOWN_OBJECT Indicates an unknown object in an interpreter program;...
  • Page 33 BUILD-IN TOUCH TERMINAL ETT 771 LSL LOAD CONTINUE PRERUN The application is started. PRERESET The application is ended. CONNECTION BREAK 15.07.2020 Page 31...

  • Page 34: Display "Burn-In" Effect

    ETT 771 BUILD-IN TOUCH TERMINAL 12 Display “Burn-In” Effect The “Burn-In” effect describes a pattern burned into the display after displaying the same contents over a longer period of time (e.g. a single screen). This effect is also described mostly as “image sticking”, “memory effect/sticking” or “ghost image”.

  • Page 35: Cleaning The Touch Screen

    BUILD-IN TOUCH TERMINAL ETT 771 13 Cleaning the Touch Screen CAUTION! Before cleaning the touch screen, the terminal must first be turned off to avoid unin- tentionally triggering functions or commands! ATTENTION! Avant de nettoyer l'écran tactile, le terminal doit d'abord être éteint afin d’éviter un déclanchement involontaire des commandes!
  • Page 36 ETT 771 BUILD-IN TOUCH TERMINAL Documentation Changes Change date Affected page(s) Chapter Note 19.04.2016 1.1 Performance Table updated Data 15.11.2016 11 Status and Error Error code 75 added Messages 28.11.2016 1.5 WVGA Display Pixel size updated 06.12.2016 6 Buffer Battery Added battery surveillance 23.01.2017...
