Summary of Contents for SIGMATEK TAE 1244
- Page 1 TAE 1244 Build-in Touch Terminal Operating Manual Date of creation: 03.06.2020 Version date: 11.11.2020 Article number: 12-200-1244-E...
- Page 2 (print, photocopy, microfilm or in any other process) without express permission. We reserve the right to make changes in the content without notice. SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in this handbook and assumes no responsibility for damages that...

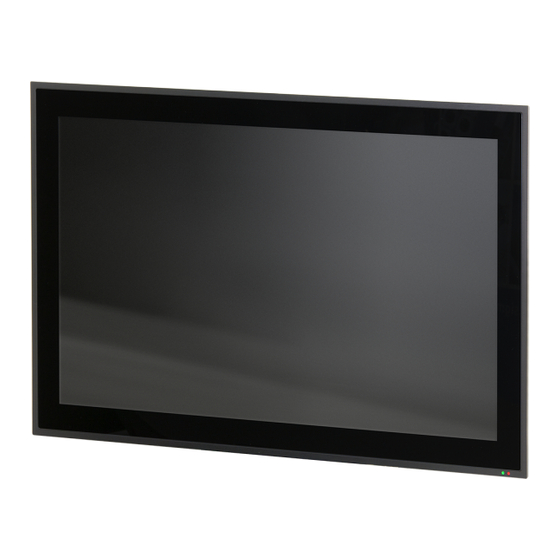

- Page 3 Build-in Touch Terminal TAE 1244 The multi-touch operating panel TAE 1244 is used to visualize automated processes. The operation and monitoring of automated procedures are simplified using this display unit. The projective capacitive touch screen is used to enter process data and parameters. The output is shown on a 12.1“...
-
Page 4: Table Of Contents
TAE 1244 BUILD-IN TOUCH TERMINAL Table of Contents 1 Introduction 1.1 Target Group/Purpose of this Operating Manual 1.2 Important Reference Documentation 1.3 Contents of Delivery 2 Basic Safety Guidelines 2.1 Symbols Used 2.2 Disclaimer 2.3 General Safety Guidelines 3 Standards and Guidelines 3.1 Guidelines... - Page 5 BUILD-IN TOUCH TERMINAL TAE 1244 5.1.5 X6: Panel Interface Connector 5.2 Applicable Connectors 5.3 Status Display LEDs 6 Mechanical Dimensions 7 Assembly/Installation 7.1 Check Contents of Delivery 7.2 Installation 7.3 Mounting Instructions 7.3.1 Restricted Space Around Rear Trimming 7.3.2 Required Cutout for Mounting the Terminal 7.3.3 Mounting Position...
- Page 6 TAE 1244 BUILD-IN TOUCH TERMINAL 12.2 Mounting the PIM onto the Touch Panel 13 Display „Burn-In“ Effect 14 Disposal 15 Accessories 15.1 Touch Pen Page 4 11.11.2020...
-
Page 7: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 8: Basic Safety Guidelines
TAE 1244 BUILD-IN TOUCH TERMINAL 2 Basic Safety Guidelines 2.1 Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes. DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 BUILD-IN TOUCH TERMINAL TAE 1244 CAUTION Caution indicates that moderate to slight injury can occur, if the specified measures are not taken. To avoid moderate to slight injuries, observe the all guidelines. Attention indique une situation dangereuse qui, faute de prendre les mesures adéquates, peut entraîner des blessures assez graves ou...
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Guidelines
2006/42/EG guidelines is correct. As long as the machine with which the product should be used does not comply with the guideline, operating this product is prohibited. Operate the unit with devices and accessories approved by SIGMATEK only. 11.11.2020... - Page 12 TAE 1244 BUILD-IN TOUCH TERMINAL CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened, otherwise it could be damaged! Manipulez l’appareil avec précaution et ne le laissez pas tomber.
-
Page 13: Standards And Guidelines
The product was constructed in compliance with the following European Union guidelines and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product TAE 1244 conforms to the following European guidelines: 2014/35/EU Low-voltage Guideline 2014/30/EU Electromagnetic Compatibility (EMC Guideline) 2011/65/EU “Restricted use of certain hazardous substances in electrical and electronic equipment”... -
Page 14: Technical Data
Interfaces 1x HMI Remote IN (HMI-Link G2.1) 2x USB 2.0 Type A OUT 1x Panel Interface Connector (for connecting a SIGMATEK TP) Internal interfaces USB 2.0 (for touch and front USB, if available on the TP) (via Panel Interface Connector) -
Page 15: Display
BUILD-IN TOUCH TERMINAL TAE 1244 4.3 Display Type 12.1” TN color display Resolution WXGA 1280 x 800 pixels Color depth 18-bit RGB LCD mode normally black LCD Polarizer transmissive Pixel size 0.204 x 0.204 mm Active range 261.12 x 163.2 mm... -
Page 16: Minimum Distance Between Operating Elements For Multi-Touch Applications
TAE 1244 BUILD-IN TOUCH TERMINAL 4.5 Minimum Distance between Operating Elements for Multi-touch Applications To guarantee smooth operation with multi-touch applications, buttons and control elements that should be operated at the same time must have the minimum clearance shown below (depending on the estimated touch point). -
Page 17: Environmental Conditions
BUILD-IN TOUCH TERMINAL TAE 1244 4.6 Environmental Conditions Storage temperature -25 ... +85 °C Environmental temperature 0 ... +50 °C Humidity 10-95 %, non-condensing Installation altitude above sea 0-2000 m without derating level > 2000 m up to a maximum of 5000 m with derating of the maximum environmental temperature by 0.5 °C per 100 m... -
Page 18: Miscellaneous
TAE 1244 BUILD-IN TOUCH TERMINAL 4.7 Miscellaneous Article number 12-200-1244 Hardware version Operating system Standard UL in preparation Approvals CAUTION If the modular components (e.g. TP and PIM) are not bolted together,they are NOT ESD-protected and can only be unpacked and handled in an ESD-safe environment by trained personnel. -
Page 19: Interfaces
BUILD-IN TOUCH TERMINAL TAE 1244 5 Interfaces 5.1 Front Connectors 5.1.1 X1: Supply (4-pin Phoenix RM 3.5) Function +24 V DC +24 V DC 11.11.2020 Page 17... -
Page 20: X2: Hmi Remote-In (Hmi-Link G2.1, Industrial Mini I/O)
= do not use INFORMATION For service purposed only! For the service interface, only a separate cable that can be ordered from SIGMATEK may be used. Using a different cable can lead to malfunction and damage. Page 18 11.11.2020... -
Page 21: X4, X5: Usb 2.0 (Type A)
8-pin Industrial Tyco Mini I/O (not included in delivery) For the service interface, only a separate cable that can be ordered from SIGMATEK may be used. Using a different cable can lead to malfunction and damage. X4, X5: USB 4-pin, Type A (downstream connector) (not included with delivery) Panel Interface Connector (display side) 11.11.2020... -
Page 22: Status Display Leds
TAE 1244 BUILD-IN TOUCH TERMINAL 5.3 Status Display LEDs LED Color Definition green DC OK 2 (OS dependent) Error The status LEDs of a PIM with EDGE2, for example, can be controlled via the application. With standard settings within an application or after starting the PIM’s operating system, the... -
Page 23: Mechanical Dimensions
BUILD-IN TOUCH TERMINAL TAE 1244 6 Mechanical Dimensions Dimensions 313 x 215 x 50 mm (W x H x D) Material front plate: 1.8 mm glass (touch screen) in black anodized aluminum frame Weight 2.1 kg 11.11.2020 Page 21... - Page 24 TAE 1244 BUILD-IN TOUCH TERMINAL INFORMATION Due to the aluminum front, caution must be taken to ensure that it is not damaged during mounting via strong impacts on the edges or corners! Page 22 11.11.2020...
-
Page 25: Assembly/Installation
BUILD-IN TOUCH TERMINAL TAE 1244 7 Assembly/Installation 7.1 Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 26: Restricted Space Around Rear Trimming
TAE 1244 BUILD-IN TOUCH TERMINAL 7.3.1 Restricted Space Around Rear Trimming Symbol Image 15“ A restricted area of 15 mm around the terminal must be ensured. This is required to exchange the module without removing the TP, tightening the screw terminals and ensuring cooling of the TP. -
Page 27: Required Cutout For Mounting The Terminal
BUILD-IN TOUCH TERMINAL TAE 1244 7.3.2 Required Cutout for Mounting the Terminal Control cabinet cutout width X 304 mm Control cabinet cutout height Y 206 mm Maximum thickness of control cabinet wall Z 3 mm 11.11.2020 Page 25... -
Page 28: Mounting Position
TAE 1244 BUILD-IN TOUCH TERMINAL 7.3.3 Mounting Position Observe the mounting position of 60-120°. INFORMATION The specified installation distances may be reduced if appropriate measures and technical precautions are taken to dissipate the corresponding waste heat. Page 26 11.11.2020... -
Page 29: Wiring
8 Wiring 8.1 Grounding The TAE 1244 is grounded via the TP. The device must be grounded to protective earth (PE) via the blade terminal provided. In addition, ensure that when installing into the control cabinet, a large grounding surface is provided. It is important to establish a low- Ohm connection to ground to ensure error-free function. -
Page 30: Esd Protection
TAE 1244 BUILD-IN TOUCH TERMINAL 8.3 ESD Protection CAUTION Typically, USB devices (keyboard, mouse, etc.) are equipped with non- shielded cables. These devices are disrupted by ESD and in some instances, no longer function. Before any device is connected or disconnected, the potential should be equalized (by touching the control cabinet or ground terminal). -
Page 31: Transport/Storage
BUILD-IN TOUCH TERMINAL TAE 1244 9 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. -
Page 32: Storage
TAE 1244 BUILD-IN TOUCH TERMINAL 10 Storage INFORMATION When not in use, store the device according to the storage conditions. See chapter 9 Transport/Storage. During storage, ensure that all protective covers are placed correctly, so that no contamination, foreign bodies or fluids enter the device. -
Page 33: Maintenance
BUILD-IN TOUCH TERMINAL TAE 1244 11 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Guidelines. Lors de l'entretien et de la maintenance, respectez les consignes de sécurité du chapitre 2 Basic Safety Guidelines. -
Page 34: Service
TAE 1244 BUILD-IN TOUCH TERMINAL WARNING If the device is contaminated with toxic or erosive chemicals, it must be carefully cleaned as quickly as possible to prevent personal injury and machine damage! Si l’appareil est contaminé par des produits chimiques toxiques ou érosifs, il doit être soigneusement nettoyé... -
Page 35: Position Series Label Sub Device
BUILD-IN TOUCH TERMINAL TAE 1244 11.4 Position Series Label Sub Device 11.11.2020 Page 33... -
Page 36: Modularity
TAE 1244 BUILD-IN TOUCH TERMINAL 12 Modularity INFORMATION The device is not Hot-Plug capable and can be damaged when the supply is not disconnected before inserting or removing the PIM. Always disconnect the supply before inserting or removing. 12.1 Removing the PIM from the Touch Panel CAUTION This product is a sensitive electronic device. - Page 37 BUILD-IN TOUCH TERMINAL TAE 1244 5. Slide the PIM in the direction of the upward as shown. 6. Remove the PIM from the TP. 12.2 Mounting the PIM onto the Touch Panel To mount the PIM on a TP, follow the steps below: 1.
- Page 38 TAE 1244 BUILD-IN TOUCH TERMINAL 13 Display „Burn-In“ Effect The “Burn-In” effect describes a pattern burned into the display after displaying the same contents over a longer period of time (e.g. a single screen). This effect is also described mostly as “image sticking”, “memory effect/sticking” or “ghost image”.
- Page 39 BUILD-IN TOUCH TERMINAL TAE 1244 14 Disposal INFORMATION Should you need to dispose of the device, the national electronic scrap regulation must be observed. The device appliance must not be disposed of as household waste. 11.11.2020 Page 37...
- Page 40 TAE 1244 BUILD-IN TOUCH TERMINAL 15 Accessories 15.1 Touch Pen Description Order number Touch pen with holder V3 01-690-059-3 Page 38 11.11.2020...
- Page 41 BUILD-IN TOUCH TERMINAL TAE 1244 Changes Chart Change Affected Chapter Note date page(s) 30.07.2020 11.1 Cleaning and Disinfecting the Notes on disinfection added Touch Screen 20.08.2020 11.4 Position Series Label Sub Chapter added Device 31.08.2020 Introduction Text corrected 5.1 Front Connectors X9 =>...
