ETT 1844
Build-in Touch Terminal
Operating Manual
Date of creation: 16.01.2020
Version date: 08.11.2021
Article number: 01-230-1844-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETT 1844 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIGMATEK ETT 1844

Summary of Contents for SIGMATEK ETT 1844

  • Page 1 ETT 1844 Build-in Touch Terminal Operating Manual Date of creation: 16.01.2020 Version date: 08.11.2021 Article number: 01-230-1844-E...
  • Page 2 (print, photocopy, microfilm or in any other process) without express permission. We reserve the right to make changes in the content without notice. SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in this handbook and assumes no responsibility for damages that occur through its...

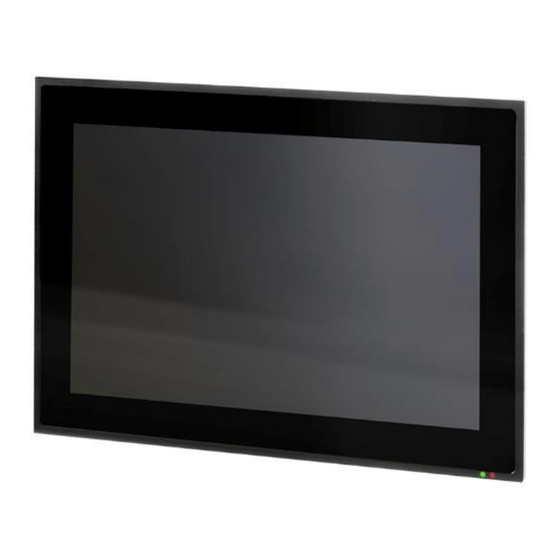

  • Page 3 ETT 1844 Build-in Touch Terminal ETT 1844 The ETT 1844 is an intelligent panel for visualizing, operating and monitoring automated pro- cesses. A capacitive touch screen serves as the input medium for process data and parameters. The output is shown on a 18.5" TFT color display.

  • Page 4: Table Of Contents

    ETT 1844 BUILD-IN TOUCH TERMINAL Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Guidelines ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Guidelines ............9 Software/Training ...............
  • Page 5 BUILD-IN TOUCH TERMINAL ETT 1844 Mechanical Dimensions ............17 Interfaces ................18 Connections Bottom..............18 6.1.1 X1: Supply (4-pin Phoenix RM 3.5) ........... 18 Left Side Connectors ..............19 6.2.1 X2: DisplayPort Output V1.2a ............19 6.2.2 X3, X4: Ethernet 1, 2 10/100/1000 (RJ45) ........20 6.2.3...
  • Page 6 ETT 1844 BUILD-IN TOUCH TERMINAL 10.4 USB Interface Connections ............28 11 Display “Burn-In” Effect ............29 12 Buffer Battery .................30 12.1 Exchanging the Battery .............. 31 13 Maintenance ................32 13.1 Cleaning the Touch Screen ............32 13.2 Service ..................33 13.2.1...

  • Page 7: Introduction

    BUILD-IN TOUCH TERMINAL ETT 1844 Introduction Target Group/Purpose of this Operating Manual This operating manual contains all information required to operate this product. This operating manual is intended for: • Project planners • Technicians • Commissioning engineers • Machine operators •...

  • Page 8: Basic Safety Guidelines

    ETT 1844 BUILD-IN TOUCH TERMINAL Basic Safety Guidelines Symbols Used The following symbols are used in the operator documentation for warning and danger mes- sages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken.
  • Page 9 BUILD-IN TOUCH TERMINAL ETT 1844 Danger for ESD-sensitive components. Les signes de danger pour les composants sensibles aux décharges élec- trostatiques. 08.11.2021 Page 7...

  • Page 10: Disclaimer

    Please thoroughly read the corresponding documentation and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through non-compliance with these instructions or applicable regulations. Page 8...

  • Page 11: General Safety Guidelines

    Operate the unit with devices and accessories approved by SIGMATEK only. CAUTION Handle the device with care and do not drop or let fall.

  • Page 12: Software/Training

    ETT 1844 BUILD-IN TOUCH TERMINAL Software/Training The application is created with the software LASAL CLASS 2 and LASAL SCREEN Editor. Training for the LASAL development environment, with which the product can be configured, is provided. Information on our training schedule can be found on our website.

  • Page 13: Norms And Guidelines

    The product was constructed in compliance with the following European Union guidelines and tested for conformity: 3.1.1 EU Declaration of Conformity EU Declaration of Conformity The product ETT 1844 conforms to the following European guidelines: • 2014/35/EU Low-voltage guideline • 2014/30/EU “Electromagnetic Compatibility” (EMC guideline) •...

  • Page 14: Technical Data

    ETT 1844 BUILD-IN TOUCH TERMINAL Technical Data Performance Data Processor Intel® Celeron® J4005 Processor cores Processor clock 2.0-2.7 GHz Internal cache 4 Mbytes Internal program and data 2-Gbyte DDR4 (SODIMM) memory (RAM) Graphics Intel® UHD Graphics 600 Hard drive 64-Gbyte SATA M.2 SSD Interfaces 4x USB 2.0 (Type A)

  • Page 15: Electrical Requirements

    BUILD-IN TOUCH TERMINAL ETT 1844 Electrical Requirements Supply voltage +18-30 V DC (SELV/PELV), typically+24 V DC UL: Class 2 or LVLC Current consumption of (+24 V) typically 1200 mA maximum 1700 mA power supply (without externally connected de- (with external devices connected)

  • Page 16: Display

    ETT 1844 BUILD-IN TOUCH TERMINAL Display 18.5” TN color display Type Resolution WXGA 1366 x 768 pixels Color depth 18-Bit RGB + Hi-FRC LCD mode normally white LCD Polarizer transmissive Pixel size 0.3 x 0.3 mm Active surface 409.8 x 230.4 mm...

  • Page 17: Minimum Distance Between Operating Elements For Multi- Touch Applications

    BUILD-IN TOUCH TERMINAL ETT 1844 Minimum Distance between Operating Elements for Multi-touch Appli- cations To guarantee smooth operation with multitouch applications, buttons and control elements that should be operated at the same time must have the minimum clearance shown below (depending on the estimated touch point).

  • Page 18: Environmental Conditions

    Gecko Default IP address Intel Ethernet (X3) automatic (DHCP) Realtek Ethernet (X4) automatic (DHCP) Default browser address 10.10.150.1 Approvals the ETT 1844 consists of a TP 1861 ( (E247993) and a PIM 041 (designed according to UL) Page 16 08.11.2021...

  • Page 19: Mechanical Dimensions

    BUILD-IN TOUCH TERMINAL ETT 1844 Mechanical Dimensions Dimensions 464 x 285 x 89 mm (W x H x D) Material front plate: 1.8 mm glass (touch screen) in black anodized aluminum frame housing: sheet steel heat sink: anodized aluminum Weight 4.9 kg...

  • Page 20: Interfaces

    ETT 1844 BUILD-IN TOUCH TERMINAL Interfaces Connections Bottom Symbol Image ETT 1544 6.1.1 X1: Supply (4-pin Phoenix RM 3.5) Function +24 V DC +24 V DC Page 18 08.11.2021...

  • Page 21: Left Side Connectors

    BUILD-IN TOUCH TERMINAL ETT 1844 Left Side Connectors Symbol Image ETT 1544 6.2.1 X2: DisplayPort Output V1.2a Function Lane 0 (p) Lane 0 (n) Lane 1 (p) Lane 1 (n) Lane 2 (p) Lane 2 (n) Lane 3 (p) Lane 3 (n)

  • Page 22: X3, X4: Ethernet 1, 2 10/100/1000 (Rj45)

    ETT 1844 BUILD-IN TOUCH TERMINAL 6.2.2 X3, X4: Ethernet 1, 2 10/100/1000 (RJ45) Function 6.2.3 X5-X8: USB 2.0 (Type A) Function +5 V, I = 500 mA out,max It should be noted that many of the USB devices on the market do not comply with USB specifications;...

  • Page 23: Display

    BUILD-IN TOUCH TERMINAL ETT 1844 Display Status LEDs Front LED Status Definition green DCOK not available 08.11.2021 Page 21...

  • Page 24: Transport/Storage

    ETT 1844 BUILD-IN TOUCH TERMINAL Transport/Storage This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! During transport, temperature and humidity fluctuations may occur. Ensure that no moisture condenses within or on the device be letting the device cli- matize to the room temperature while turned off.

  • Page 25: Assembly/Installation

    BUILD-IN TOUCH TERMINAL ETT 1844 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3Contents of Delivery for more information. On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system.

  • Page 26: Restricted Space Around Rear Trimming

    ETT 1844 BUILD-IN TOUCH TERMINAL Restricted Space Around Rear Trimming Symbol Image ETT 1544 A restricted area of 15 mm around the terminal must be ensured. This is required to mount the terminal onto the machine using the screw terminals provided and when necessary, ex- change the module without having to remove the entire device.

  • Page 27: Required Cutout For Mounting The Terminal

    BUILD-IN TOUCH TERMINAL ETT 1844 Required Cutout for Mounting the Terminal Control cabinet cutout width X 453 mm Control cabinet cutout height Y 274 mm Maximum thickness of control 3 mm cabinet wall Z 08.11.2021 Page 25...

  • Page 28: Mounting Position

    ETT 1844 BUILD-IN TOUCH TERMINAL Mounting Position Observe the mounting position of 60-120°. The specified installation distances may be reduced if appropriate measures and technical precautions are taken to dissipate the corresponding waste heat. Page 26 08.11.2021...

  • Page 29: Wiring

    BUILD-IN TOUCH TERMINAL ETT 1844 10 Wiring 10.1 Ground The device must be grounded to protective earth (PE) via the blade terminal provided. In addition, ensure that when installing into the control cabinet, a large grounding surface is provided. It is important to establish a low-Ohm connection to ground to ensure error-free function.

  • Page 30: Shielding

    ETT 1844 BUILD-IN TOUCH TERMINAL 10.2 Shielding For Ethernet, CAT5e-compliant cables are recommended. The cable shielding is connected to ground via the RJ45 connector. Noise signals can then be prevented from reaching the electronics and affecting the function. 10.3 ESD Protection Typically, USB devices (keyboard, mouse etc.) are not equipped with...

  • Page 31: Display "Burn-In" Effect

    BUILD-IN TOUCH TERMINAL ETT 1844 11 Display “Burn-In” Effect The “Burn-In” effect describes a pattern burned into the display after displaying the same contents over a longer period of time (e.g. a single screen). This effect is also described mostly as “image sticking”, “memory effect/sticking” or “ghost image”.

  • Page 32: Buffer Battery

    ETT 1844 BUILD-IN TOUCH TERMINAL 12 Buffer Battery The exchangeable buffer battery ensures that the clock time and customer-defined BIOS settings are preserved in the absence of a supply voltage. A lithium battery is installed at the manufacturer. The battery has enough capacity to preserve data in the absence of a supply voltage for up to 5 years.

  • Page 33: Exchanging The Battery

    BUILD-IN TOUCH TERMINAL ETT 1844 12.1 Exchanging the Battery Turn device supply. Remove the locking screws in the battery cover with a TX10 Torx screwdriver. Remove the battery cover. To remove the battery from the holder press the gold tab of the battery holder away from the battery.

  • Page 34: Maintenance

    ETT 1844 BUILD-IN TOUCH TERMINAL 13 Maintenance During maintenance as well as servicing, the safety instructions from chapter 2must be observed. 13.1 Cleaning the Touch Screen CAUTION Before cleaning the touch screen, the ETT must be turned off in order to prevent triggering functions or commands unintentionally! The touch screen can only be cleaned with a soft, damp cloth.

  • Page 35: Service

    BUILD-IN TOUCH TERMINAL ETT 1844 13.2 Service This product was constructed for low-maintenance operation. 13.2.1 Calibrating the Touch Screen The touch screen is calibrated at the factory. You should therefore only recalibrate the touch screen when press-point changes are noticed.

  • Page 36: Position Series Label Sub Device

    ETT 1844 BUILD-IN TOUCH TERMINAL 13.4 Position Series Label Sub Device Page 34 08.11.2021...

  • Page 37: Process Diagram

    BUILD-IN TOUCH TERMINAL ETT 1844 14 Process Diagram 08.11.2021 Page 35...

  • Page 38: Status And Error Messages

    ETT 1844 BUILD-IN TOUCH TERMINAL 15 Status and Error Messages Status an error messages are displayed in the LASAL CLASS software status test. POINTER or CHKSUM messages are shown on the screen. Number Message Definition Cause/solution RUN RAM The user program is currently running in Info RAM.
  • Page 39 BUILD-IN TOUCH TERMINAL ETT 1844 WATCHDOG The program was interrupted via the Possible Causes: watchdog logic. User program interrupts blocked over a longer period of time (STI command forgotten). Programming error in a hardware interrupt. INB, OUTB, INW, OUTW instruc- tions used incorrectly.
  • Page 40 ETT 1844 BUILD-IN TOUCH TERMINAL STOP BRKPT The CPU was stopped by a breakpoint in Info the program. CPU STOP The CPU was stopped by the program- Info ming software. INT ERROR The CPU has triggered a false interrupt Causes:...
  • Page 41 OP INSTALLED The operating system has been rein- Info stalled. OS TOO LONG The operating system cannot be loaded; Restart, report error to SIGMATEK. too little memory. NO OPERATING Boot loader message. Restart, report error to SIGMATEK. SYSTEM No operating system found in RAM.
  • Page 42 An error has occurred during a floating- ERROR point operation. DIAS-RISC-ERROR Error from the Intelligent DIAS Master. Restart, report error to SIGMATEK. INTERNAL ERROR An internal error has occurred, all appli- Restart, report error to SIGMATEK. cations are stopped. FILE ERROR An error has occurred during a file opera- tion.
  • Page 43 BUILD-IN TOUCH TERMINAL ETT 1844 C-DIAS ERROR A connection error with a C-DIAS module Cause: has occurred. The cause of the error is docu- mented in the log file Solution: This depends on the cause S-DIAS ERROR A connection error with an S-DIAS Possible Causes: module has occurred.
  • Page 44 ETT 1844 BUILD-IN TOUCH TERMINAL C_UNKNOWN_CID An unknown object from a stand-alone or embedded object, or an unknown base class was detected. C_UNKNOWN_CONSTR The operating system class cannot be created; the operating system is probably wrong. C_UNKNOWN_OBJECT Indicates an unknown object in an inter- preter program;...
  • Page 45 BUILD-IN TOUCH TERMINAL ETT 1844 CONTINUE PRERUN The application is started. PRERESET The application is ended. CONNECTION BREAK 08.11.2021 Page 43...

  • Page 46: Modularity

    ETT 1844 BUILD-IN TOUCH TERMINAL 16 Modularity Through its modular construction, the device is prepared for a simple exchange of compo- nents. This makes it possible in the future, to adapt the touch panel (TP) or panel interface module (PIM) to actual system requirements.

  • Page 47: Removing The Pim From The Touch Panel

    BUILD-IN TOUCH TERMINAL ETT 1844 16.1 Removing the PIM from the Touch Panel This product is a sensitive electronic device. When mounting, as well as dis- mantling, note that you come into contact with ESD-sensitive areas of the device. The applicable ESD measures must be taken!

  • Page 48: Mounting The Pim Onto The Touch Panel

    ETT 1844 BUILD-IN TOUCH TERMINAL 16.2 Mounting the PIM onto the Touch Panel To mount the PIM on a TP, follow the steps below: Ensure that an ESD-compliant working method is followed (ESD armband, ESD clothing). Disconnect the device from the supply.

  • Page 49: Disposal

    BUILD-IN TOUCH TERMINAL ETT 1844 17 Disposal Should you need to dispose of the device, the national electronic scrap regulation must be observed. The panel cannot be discarded with domestic waste. 08.11.2021 Page 47...

  • Page 50: Accessories

    ETT 1844 BUILD-IN TOUCH TERMINAL 18 Accessories 18.1 Battery Description Order Number Lithium battery RENATA with 01-690-055 20 mm tab (one-sided) Page 48 08.11.2021...
  • Page 51 BUILD-IN TOUCH TERMINAL ETT 1844 Documentation Changes Change date Affected Chapter Note page(s) 31.01.2020 Document editing 12.02.2020 2.4 Software/Training Chapter added 4.7 Miscellaneous Salamander operating system 14.2.1 Calibrating the Touch CLI command Screen Angle CR ≥ 10 -> Information amended and footnote 20.04.2020...
  • Page 52 ETT 1844 BUILD-IN TOUCH TERMINAL Page 50 08.11.2021...
