MSA OptimAir TL Instructions For Use And Care Manual

Powered air purifying respirator
Hide thumbs

Advertisement

Quick Links

Download this manual
OptimAir
Powered Air
Purifying Respirator
INSTRUCTIONS FOR USE AND CARE
This manual including the warning and cautions inside, must be read
and followed carefully by all persons who have, or will have, the
responsibility for using or servicing the product. The respirator will
perform as designed only if used and serviced according to the
instructions. Otherwise, the respirator could fail to perform as
designed, and persons who rely on the respirator could sustain seri-
ous personal injury or death.
The warranties made by MSA with respect to the product are voided
if the product is not used and serviced according to the instructions
in this manual. For any additional information relative to use or
repair, call 1-800-MSA-2222 during regular working hours.
See separate insert for NIOSH Approval Information
(P/N 10078677).
TAL 131 (L) Rev. 11
®
WARNING
© MSA 2013
TL
Prnt. Spec. 10000005389(E) Mat. 10077289
Doc. 10077289

Advertisement

loading
Need help?

Need help?

Do you have a question about the OptimAir TL and is the answer not in the manual?

Questions and answers

Related Manuals for MSA OptimAir TL

Summary of Contents for MSA OptimAir TL

  • Page 1 The warranties made by MSA with respect to the product are voided if the product is not used and serviced according to the instructions in this manual.

  • Page 2: Table Of Contents

    B - Not for use in atmospheres immediately dangerous to The OptimAir TL PAPR contains a battery and may not be life or health. taken into or used in atmospheres containing flammable C - Do not exceed maximum use concentrations estab- or explosive gases, vapors, or dusts when the concentra- lished by regulatory standards.
  • Page 3 SCBA. lowing removal of the respirator. 19. DO NOT drop the OptimAir TL PAPR. If the • Do NOT reuse or share maintenance-free respira- OptimAir TL PAPR is dropped leave the contami- tors.
  • Page 4 The tight-fitting OptimAir TL PAPR must be properly pre- pared for use, properly donned, and a negative pressure Note: It is recommended that the OptimAir TL PAPR be used in environments where the temperature is between leak test must be conducted in an area known to be free of contaminants before it can be used.

  • Page 5: General Description

    Hydrogen Fluoride (i.e. facepiece, hood, etc). Particulate The OptimAir TL PAPR is NIOSH approved for use with AM / FM / AG / HE / HF Ammonia MSA Tychem Hoods, OptiVizor Faceshield™ Faceshield Chlorine and tight fitting facepieces noted in this user’s instruction...
  • Page 6 Standard Battery Pack Airflow: When used with the MSA battery pack, the • Standard Battery Charger OptimAir TL PAPR provides a constant filtered airflow of a • User’s Instruction Manual minimum of 170 lpm to the hood and OptiVizor Faceshield, and 115 lpm to the tight fitting facepiece.

  • Page 7: Preparing The Optimair Tl Papr For Use

    Charge Complete Green effective against the contaminant in the use environ- Charge Pending Amber ment. Always use two MSA cartridges of the same type. Charge Failure Red Flash No AC or No Battery CHARGING THE BATTERY PACK When the battery is charging, the LED will be red.
  • Page 8 DO NOT reuse combination cartridges. Combination cartridges are intended for one time use only. Failure to follow this warning can result in serious personal 3. The OptimAir TL PAPR will not operate properly if the injury or death. battery is not installed correctly.

  • Page 9: Optional Accessory

    PREPARING THE OPTIMAIR TL PAPR FOR USE 1. Remove both cartridges from their packaging. 2. Inspect the cartridges to be sure that they are not damaged and the gaskets are present. 3. To ensure proper attachment and prevent cross 4. Grasp the outside of...
  • Page 10 PREPARING THE OPTIMAIR TL PAPR FOR USE INSTALLING THE BREATHING TUBE Attaching the Breathing Tube Assembly to the Tychem Hoods Attaching the Breathing Tube assembly to the Blower There are two methods (locking clamp, threaded connec- tor) of attaching the breathing tube assembly to Tychem material hoods.
  • Page 11 PREPARING THE OPTIMAIR TL PAPR FOR USE Using the Threaded Connector Method 1. Remove the gray lock- 4. The threaded hood connection is ing nut (shown above) designed to swivel. Adjust the orientation of the breathing tube that is screwed onto the end of the hose.
  • Page 12 NOTES TAL 131 (L) Rev. 11 - 10077289...

  • Page 13: Donning And Use

    Failure to follow this warning can result in serious personal injury or death. Audible and Visible Alarms The OptimAir TL PAPR is equipped with audible and visi- ble alarms that indicate low battery voltage and improper 2. Examine the cartridges air flow.
  • Page 14 2. suspension is being worn. Note: MSA recommends use of a buddy system to check Adjusting the headband for proper hood donning. 5. When using a single bib hood, the knit collar must contact the wearer’s skin.
  • Page 15 1. Push the suspension adjustment knob in and counter- PAPR hoods that require a suspension. The V-Gard Cap clockwise to loosen the headband. must be used with the OptimAir TL Hood with V-Gard 2. Ensure the gray fabric is flat up aginst the crown Fastener Kit (P/N 10089665) strap.
  • Page 16 • Once the user leaves the contaminated area, he or USING THE OPTIMAIR TL PAPR she must enter the decontamination area and fol- low the set decontamination procedure. 1. Turn the blower on by depressing and holding the •...

  • Page 17: Removing The Respirator

    DO NOT dispose of batteries as ordinary trash. Follow the instructions included in the Disposal of Cartridges and Batteries section. 1. Clean, inspect, and prepare the OptimAir TL PAPR for the next use. TAL 131 (L) Rev. 11 - 10077289...
  • Page 18 NOTES TAL 131 (L) Rev. 11 - 10077289...

  • Page 19: Cleaning And Inspection

    All components must be thoroughly cleaned after each use. Clean the OptimAir TL with Confidence Plus® Note: Cartridge receptacle Cleaner (P/N 10009971) from MSA. Refer to the label for plugs are available as an accessory to help protect use instructions. A solution as effective as Confidence...
  • Page 20 NOTES TAL 131 (L) Rev. 11 - 10077289...

  • Page 21: Storage

    The cartridge recepta- • Ensure that the unit is working properly before cles may be plugged storage by temporarily installing a battery as with MSA’s cartridge instructed in the Before Use section. Remove the receptacle plugs battery after testing. (optional).
  • Page 22 NOTES TAL 131 (L) Rev. 11 - 10077289...

  • Page 23: Cartridge And Battery Disposal

    2. NiMH cells contained in the MSA battery pack contain recyclable materials. Dispose of or recycle batteries in accordance with all applicable federal, state, and local regulations.
  • Page 24 NOTES TAL 131 (L) Rev. 11 - 10077289...

  • Page 25: Accessories And Reorder Information

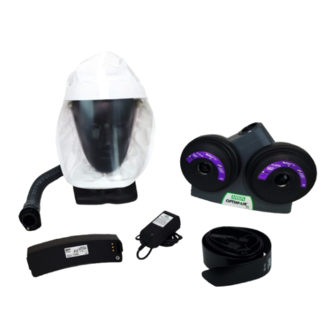

    ACCESSORIES AND REORDER INFORMATION Ship Weight Reorder Part Number (estimated) Item Quantity Photo OptimAir TL PAPR Kit Loose Fitting, Standard Battery (Blower, Battery Standard, Charger Standard, Hood Hose, Decon Belt With Cam Buckle, Instruction Manual) Cartridges not 10081116 4.1 lbs included.
  • Page 26 ACCESSORIES AND REORDER INFORMATION Reorder Ship Weight Part Number (estimated) Item Quantity Photo Hood, Tychem Material SL, Single Bib, Locking Clamp 10083385 3.8 lbs Hood, Tychem Material SL, Single Bib, Threaded Hose Connection 10083381 4.7 lbs Hood, Tychem Material SL, Double 10083386 Bib, Locking Clamp 4.2 lbs...
  • Page 27 Hood, Double Bib, Tychem SL w/o Suspension, Threaded Connector 10083390 4.8 lbs. Hood, Double Bib, Tychem SL w/o Suspension, Locking Clamp 10083394 4.2 lbs. Fastener Kit, OptimAir TL Hood with V-Gard 10089665 0.2 lbs. Sm: 10028999 Facepiece, Advantage 3100, Md: 10028998 Rubber Harness Lg: 10029000 1.6 lbs.
  • Page 28 ACCESSORIES AND REORDER INFORMATION Reorder Ship Weight Part Number (estimated) Item Quantity Photo RD40 Inlet Assembly 10065330 0.2 lbs. Sm: 493072 Facepiece, Ultra Elite, Black Md: 493028 Silicone Lg: 493116 1.9 lbs. Sm: 493064 Facepiece, Ultra Elite, Black Md: 493020 Hycar Rubber Lg: 493108 1.9 lbs.
  • Page 29 ACCESSORIES AND REORDER INFORMATION Reorder Ship Weight Part Number (estimated) Item Quantity Photo Decon Belt with Side - Release Buckle 10078201 0.4 lbs. Spark Cover 10068152 1.5 lbs. Hood Suspension 10078469 2.0 oz. Hood Sweatbands 10083618 1.4 oz. Hood Hose Clamps 10083843 1.0 oz.

  • Page 30: Troubleshooting

    TROUBLESHOOTING Audible alarm – If an alarm sounds, look at the visible hose that is partially removed or one that is installed battery and flow indicator to determine the potential incorrectly will trigger a flow alarm. cause of the alarm. If the fan LED is flashing red continue troubleshooting in the flow alarm section.

  • Page 31: Warranty

    WARRANTY Mine Safety Appliances Company General Express Warranty and Terms of Sale 1. Express Warranty - MSA warrants that the product 2. Exclusive Remedy - It is expressly agreed that the furnished under this order is free from mechanical Purchaser’s sole and exclusive remedy for breach of...
