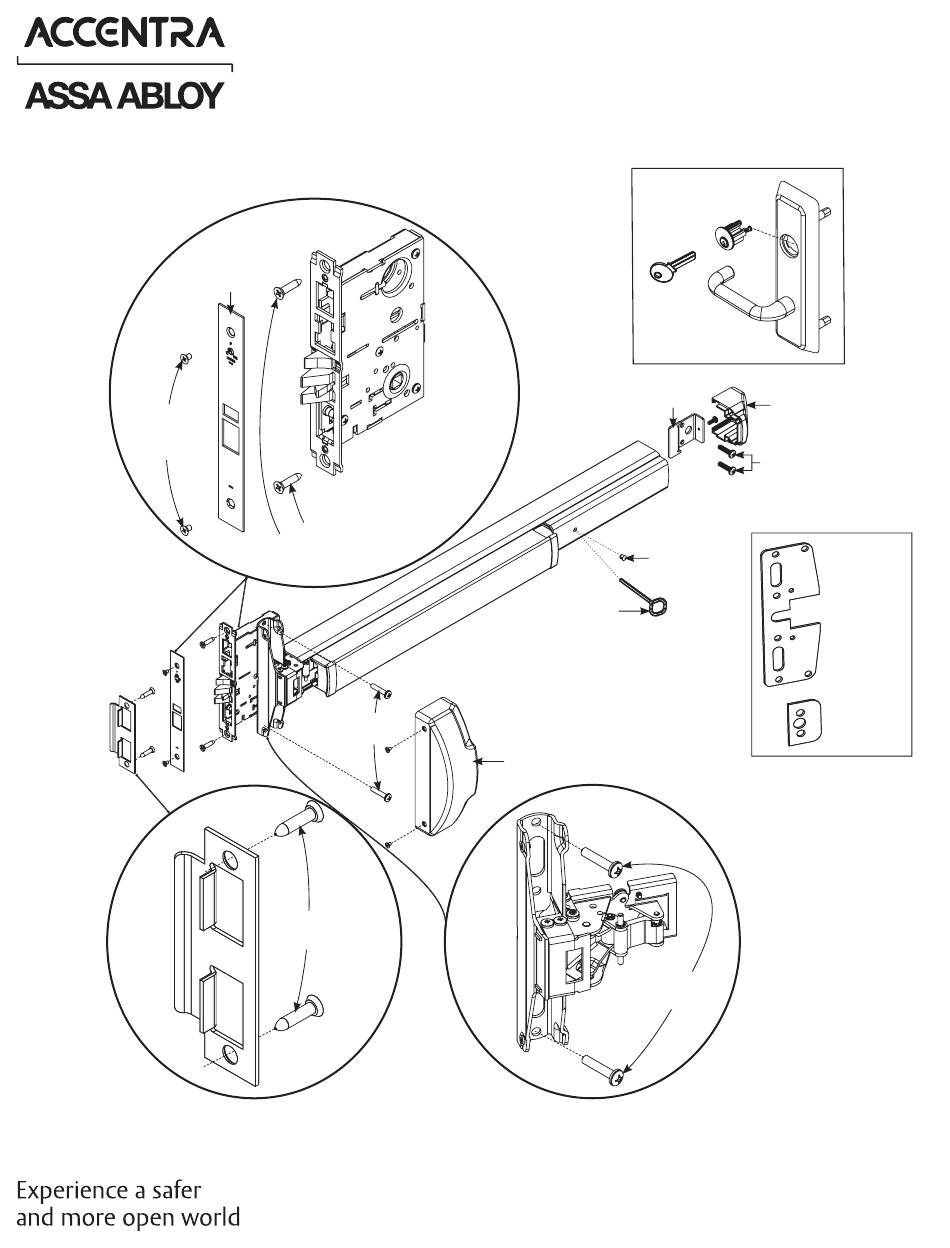

B. Exploded View
Figure 1:

Exploded View

of 6130(F)
Armor Plate
(2)
#8-32 x 1/4"
PFHUMS
#798
Universal
Strike
Plate
80-9460-6004-000 04/24
Mortise Lock
(2) #12-12-24
x 1" FHPWMS
(2) #8-32 x 1/4"
PFHUMS
(2) #12-12-24 x 1"
FHPWMS
Copyright © 2015, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in
whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Trim Assembly
— Keyed (Optional)
Key
(Optional)
Rear Clamp
Hex Key
(Panic Device Only)
6130(F)
Mortise Latch
Head Cover
Mortise Latch
Head Assembly
(2) 1/4-20 x 1"
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
4
6130(F) Series
Mortise Exit Device
Installation Instructions
Device End Cap
(2) 1/4-20 x 1" PPHMS
Hole Plug
(Fire Devices)
PPHMS
Shim Kit
#623SK
for Wide
Device
Assy and
Touch Bar
Bracket
(Optl)
