6130(F) Series
Mortise Exit Device
Installation Instructions
L. Device Assembly Cover Installation
1. Secure latch head cover with two (2) #8-32 x 1/4" (6.35mm) PFHUMS (Figure 10).
2. Install armor plate with two (2) #8-32 x 1/4" (6.35mm) PFHUMS to lockbody.
#8-32 x 1/4"
PFHUMS
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 2015, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in
whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

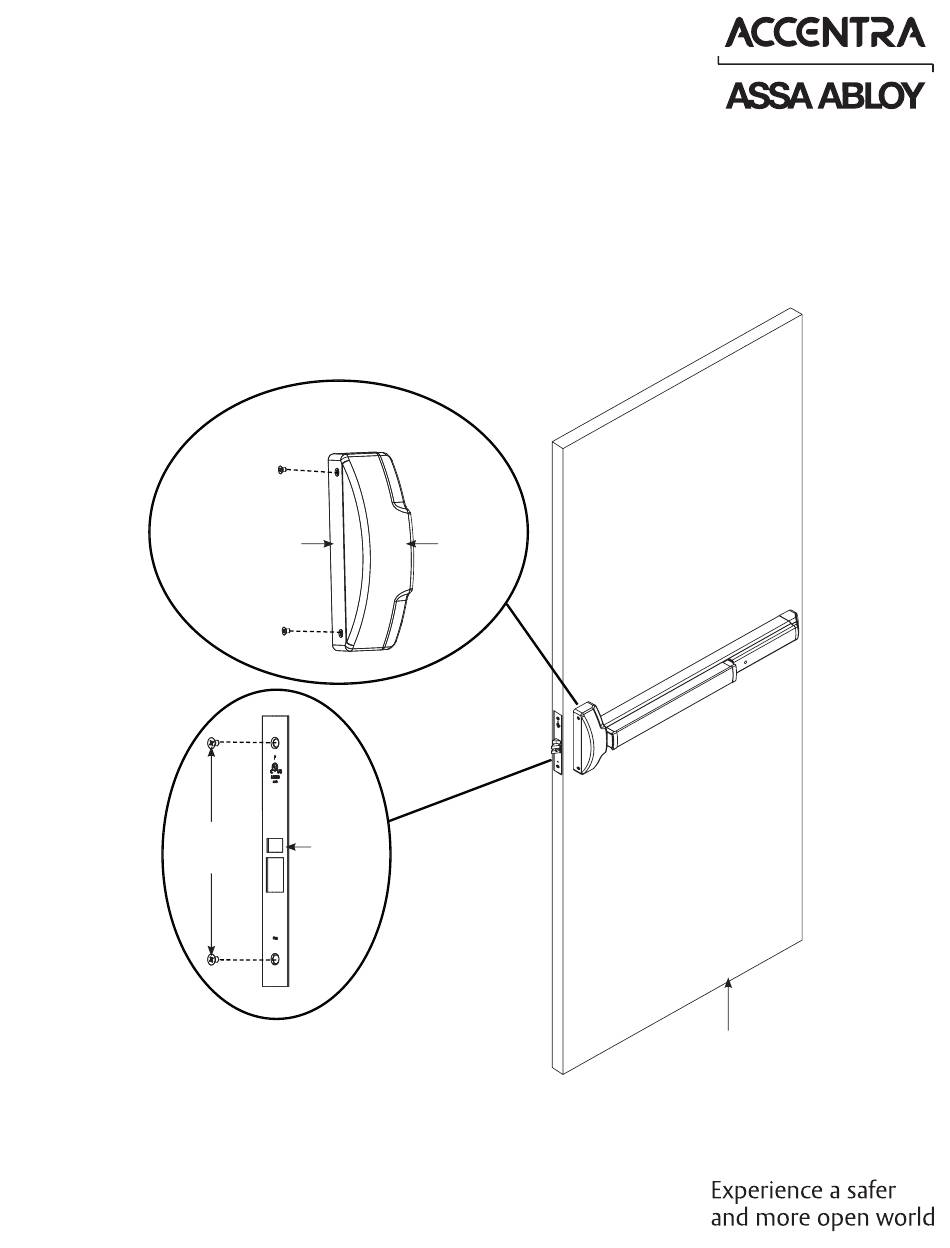

Figure 10: Device Assembly Cover Installation
(2) #8-32 x 1/4"
PFHUMS
(2)
Armor
Plate
Device
Assembly
Cover
13
Assembly
Installed on Door
80-9460-6004-000 04/24
