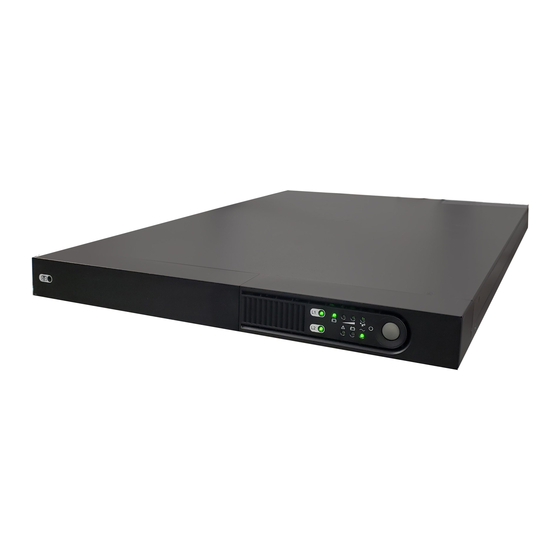

- Page 1 J90 Lithium Ion UPS 1000VA, 1500VA Models User & Installation Manual www.xpcc.com | © 2023 Xtreme Power Conversion Corporation. All rights reserved. (Rev 3/28/23)
-
Page 2: Table Of Contents
2-1. Rear panel view ...........................3 2-2. Setup the UPS ..........................4 3. Operations ............................6 3-1. Button operation .........................6 3-2. LED Indicators ..........................6 3-3. Audible Alarm ..........................7 4. Troubleshooting ..........................8 5. Storage and Maintenance........................9 6. Specifications ..........................10 Xtreme Power Conversion Corporation Page 2... -
Page 3: Important Safety Warning
Caution -risk of electric shock. The battery circuit is not isolated from the input voltage. Hazardous voltages may occur between the battery terminals and the ground. Before touching, please verify that no voltage is present! Xtreme Power Conversion Corporation Page 3... - Page 4 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Xtreme Power Conversion Corporation Page 4...
-
Page 5: Installation And Setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2-1. Rear panel view J90-1000/J90i-1000/J90-1500/J90i-1500 J90-1kLi J90i-1kLi J90-1.5kLi J90i-1.5kLi Xtreme Power Conversion Corporation Page 5... -
Page 6: Setup The Ups
UPS shutdown/start-up and monitor UPS status through PC. The UPS is equipped with intelligent slot perfect for SNMP card. When installing with SNMP card in the UPS, it will provide advanced communication and monitoring options. Xtreme Power Conversion Corporation Page 6... - Page 7 2. Click ViewPower software icon and then choose your required OS to download the software. 3. Follow the on-screen instructions to install the software. 4. When your computer restarts, the monitoring software will appear as an orange plug icon located in the sys- tem tray, near the clock. Xtreme Power Conversion Corporation Page 7...
-
Page 8: Operations
Yellow Flashing LED4 to LED7 indicate bat- Green Lighting tery capacity during battery mode. LED4: battery voltage > 26V LED5: battery voltage > 24.5V LED6: battery voltage > 23V LED7: battery voltage > 21V Xtreme Power Conversion Corporation Page 8... -
Page 9: Audible Alarm
LED 9: indicate input voltage is Lighting too high 3-3. Audible Alarm Battery Mode Sounding every 4 seconds Low Battery Sounding every second Overload Sounding twice every second Fault Continuously sounding Bypass Mode Sounding ever 10 seconds Xtreme Power Conversion Corporation Page 9... -
Page 10: Troubleshooting
Battery defect. Replace the battery with the same type of battery. Fault LED is on and alarm is UPS fault. Please contact local dealer sounding continuously. directly. Xtreme Power Conversion Corporation Page 10... -
Page 11: Storage And Maintenance
Before storing, charge the UPS 5 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C -50°C Every 3 months 1-2 hours 50°C -55°C Every 2 months 1-2 hours Xtreme Power Conversion Corporation Page 11... -
Page 12: Specifications
ViewPower software, horizontal brackets, user manual Bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit AVAILABLE OPTIONS Rack depth is front bracket to unit panel. Add 1” for depth including front bezel. Xtreme Power Conversion Corporation Page 12... -
Page 13: Obtaining Service
RMA number marked on the outside of the boxes. 4. Return the UPS by insured, prepaid carrier to the address provided by the Technician. 5. Refer to the Warranty statements in this manual for additional details on what is covered. Xtreme Power Conversion Corporation Page 13... -
Page 14: Xtreme Power Conversion Limited Warranty
(USA & Canada) or three years (outside USA & Canada) for J90-Series products from the date of purchase. XPC Corporation warrants internal batteries for a period of five years from the date of purchase. For equipment sites within the United States and Canada, this warranty covers repair or replacement, at the sole discretion of XPC Corporation.
