TECHNICAL MANUAL
TRIAL2K - TRIALV2K - TRIALH2K
Wireless outdoor dual/triple technology
detectors for intrusion detection systems
managed by NG-TRX control units
TRIAL2K (and its variants TRIALH2K and TRIALV2K) is a
wireless detector belonging to the NG-TRX product family. It
can be integrated in systems managed by Villeggio NG-TRX
control units, Pregio control units (using the GATEWAY2K
optional device) and other expressly compatible models.
The TRIAL family for NG-TRX systems includes the following
detectors:
TRIAL2K: triple technology, volumetric protection;
TRIALH2K: triple technology, horizontal curtain protection;
TRIALV2K: dual technology, vertical curtain protection.
The detectors feature two sectors operating in AND mode.
Infrared (IR) section: IR transparent lens and 1 or 2 digital
PIR sensors with temperature compensation, protected by
silicon filter against white light.
Microwave (MW) section: DRO planar antenna operating at
10.525 GHz (9.9 GHz alternative version available).
TRIAL2K and TRIALV2K implement the under-crawl function
by means of a specific lens (the lower one).
All the detectors can be entirely programmed using the
BrowserOne software.
A kit of optional swivel mounts and brackets is also available
(SNDTRIAL).

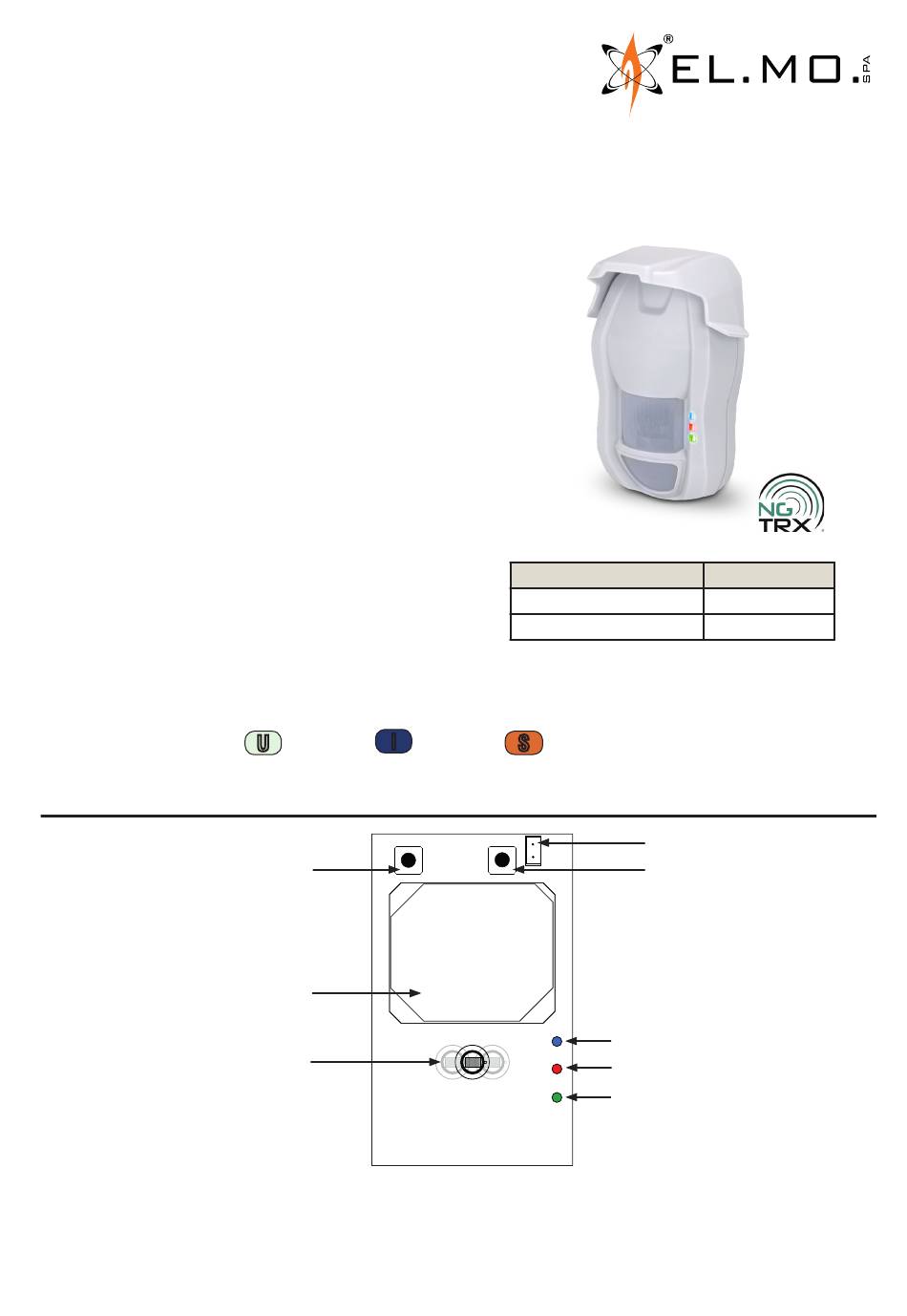

1. ELECTRONIC BOARD
Addressee for this information:
I
U
User
P1
1
2
3
1.
Acquisition button (P1)
2.
MW antenna
3.
PIR sensor(s)
4.
Green LED
Compatible control units
Villeggio
Pregio (with GATEWAY2K)
S
Installer
Technical Assistance
J1
P2
5.
Red LED
6.
Blue LED
7.
Tamper button (P2)
8.
Terminal for battery connection
1
Firmware vers.
8.3.2 or higher
2.3.2 or higher
8
7
6
5
4
