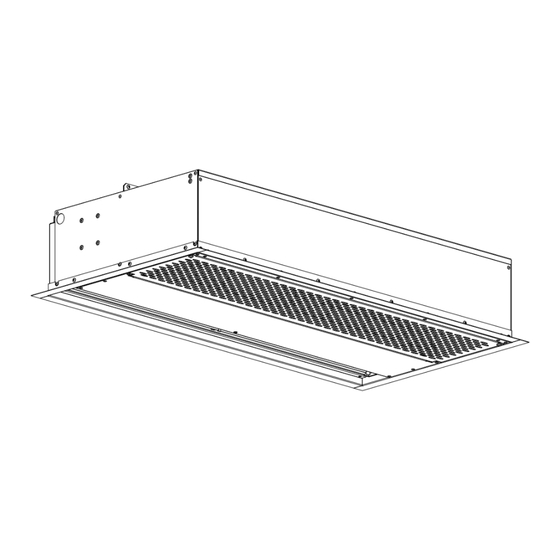

Mars PHANTOM 8 PH842-1EQG-OB Installation, Operation And Maintenance Manual

Please read and save these instructions. Read carefully before attempting to assemble, install, operate, or maintain
the product described. Protect yourself and others by observing all safety information. Failure to comply with these
instructions could result in personal injury and/or property damage. Retain these instructions for future reference.
OVERVIEW
Mars Air Curtains are
designed to cover
door openings,
providing both
temperature
control/environmental
separation and flying
insect control when
the building's doors
are opened. Typical
installation heights
are up to 7' for flying insect control and up to 8' for
environmental separation for PH8 models. The units are
typically installed horizontally above the door opening
and can either be mounted to the wall or suspended from
the ceiling. All models are ETL Listed to Canada and US
standards; unheated models are approved for inside and
outside installation, while heated units must be installed
on the inside (protected) side of the opening. The motors
used in all PH8 models are 1/6HP.
WARNING
When servicing the product, motor may be hot enough
to cause pain or injury. Allow motor to cool before
servicing.
All Phantom Models come standard with a stamped air
intake screen(s) and can be configured with aluminum
mesh filter(s) as an option.
PHANTOM 8 (PH8) COMMERCIAL SERIES
Installation, Operation and Maintenance Manual
a clear understanding of these instructions and should be
aware of general safety
installation can result in electric shock, injury due to
contact with moving parts, and other potential hazards.
WARNING
To reduce the risk of fire, electric shock, or injury to
persons, observe the following.
A. Always disconnect, lock and tag power source before
installing or servicing product.
B. Installation work or electrical wiring must be done by
qualified person(s) in accordance with all applicable
codes and standards, including fire-rated construction.
C. The combustion airflow needed for safe operation of
fuel burning equipment in the area may be affected by
the product's operation. Follow the heating equipment
manufacturer's guideline and safety standards, such
as those published by the National Fire Protection
Agency (NFPA), the American Society of Heating,
Refrigeration and
(ASHRAE) and local code authorities.
D.
When cutting or drilling into a wall or ceiling, be careful
not to damage electrical wiring and other hidden
utilities.
WARNING
Precaution should be taken in explosive atmospheres.
Document No: PH8-IOM
Date: 6/10/24
GENERAL SAFETY
INFORMATION
Use this product only in
the manner intended
by the manufacturer. If
you have
questions, contact the
manufacturer.
qualified personnel
should install
product. Installing
personnel should have
precautions. Improper
Air Conditioning Engineers
any
Only
this
