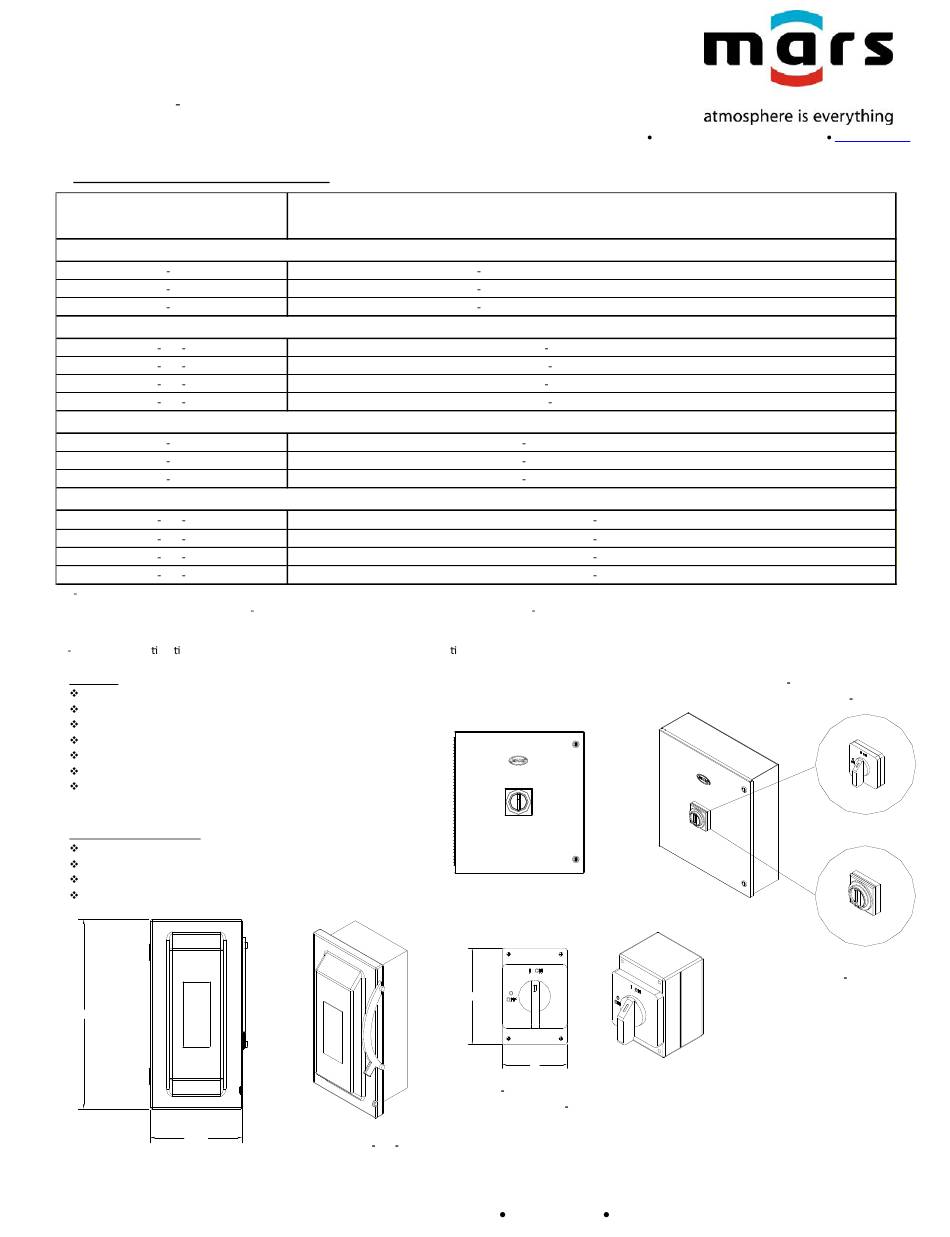

Mars QP10 Series Manual

Disconnect Switches
Fused and Non fused
Disconnect Switches
Switch Model Number
Standalone - Non-fused Disconnects (Remote Mounted )
99 176
99 122
99 148
Standalone - Fused Disconnects Kits with Fuses (Remote Mounted)
99 008 **
99 009 **
99 010 **
99 011 **
Panel/Unit* Mounted - Non-fused Disconnects (Internally Mounted)
99 165
99 144
99 145
Panel/Unit* Mounted - Fused Disconnects Kits with Fuses (Internally Mounted)
99 153 **
99 154 **
99 144 **
99 145 **
** Specify the nearest higher amperage to the motor nameplate amperage. (multiples of 5). ie. "05" for units with 5 total amp or less.
*Note: Unit mounted Fused and Non fused disconnects are available for models as follows STD2/HV2/EP2: 60A Max, LPV2 (Unheated): 32A Max, LPV2 (Electric
heat): 3Ø 60A Max, 1Ø N/A
† Limited compa bili es for the WM and BD Series due to space considera ons. Only available as panel mounted.
Features:
UL Listed components
Compact Size
Disconnects and locks out power for servicing and inspection
Circuit protection disconnect switches available for 300V or 600V
Disconnect switch amperage rating listed in table description
Kits available for varying load capacities as required
Unit mounted disconnects have standard mounting configuration
on right hand side of unit
Options and Accessories: Contact Factory
Additional NEMA, voltage and amperage ratings available
Rotary or Handle options available
Lockable switches or covers available
Factory installation and wiring of remote switches available
14 7/8"
6 3/4"
NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.
Switch, Disconnect, Non Fused, 600v, 20A, 3 Pole, NEMA 1 Enclosure (Rmt Mntd By Others)
Switch, Disconnect, Non Fused, 600v, 32A, 3 Pole, NEMA 1 Enclosure (Rmt Mntd By Others)
Switch, Disconnect, Non Fused, 600v, 80A, 3 Pole, NEMA 1 Enclosure (Rmt Mntd By Others)
Kit, Switch, Disconnect, Fused, 240v, 5 30A, 3 Pole, NEMA 3R Enclosure (Rmt Mntd By Others)
Kit, Switch, Disconnect, Fused, 240v, 35 60A, 3 Pole, NEMA 3R Enclosure (Rmt Mntd By Others)
Kit, Switch, Disconnect, Fused, 600v, 5 30A, 3 Pole, NEMA 3R Enclosure (Rmt Mntd By Others)
Kit, Switch, Disconnect, Fused, 600v, 35 60A, 3 Pole, NEMA 3R Enclosure (Rmt Mntd By Others)
Switch, Disconnect, Non Fused, 600v, 20A, 3 Pole, NEMA 1 (Pnl/Unit Mntd)
Switch, Disconnect, Non Fused, 600v, 32A, 3 Pole, NEMA 1 (Pnl/Unit Mntd)
Switch, Disconnect, Non Fused, 600v, 60A, 3 Pole, NEMA 1 (Pnl/Unit Mntd)
Kit, Switch, Disconnect, Fused, 300v, 5 30A, 3 Pole, NEMA 1 (Pnl/Unit Mntd)
Kit, Switch, Disconnect, Fused, 300v, 35 60A, 3 Pole, NEMA 1 (Pnl/Unit Mntd†)
Kit, Switch, Disconnect, Fused, 600v, 5 30A, 3 Pole, NEMA 1 (Pnl/Unit Mntd)
Kit, Switch, Disconnect, Fused, 600v, 35 60A, 3 Pole, NEMA 1 (Pnl/Unit Mntd†)
Fused Disconnect,
Remote Mounted (99 009 ** shown)
MARS AIR SYSTEMS, LLC GARDENA, CA USA
14716 S. BROADWAY, GARDENA, CA 90248
Description
5"
4"
Non Fused Disconnect,
Remote Mounted (99 122 shown)
Ph: (310)532-1555 Fax: (310)-532-3030 www.marsair.com
© Copyright Mars Air Systems, LLC 2014
Non Fused Disconnect,
Remote Mounted (99 165 shown)
Fused Disconnect,
Panel Mounted (99 144 shown)
