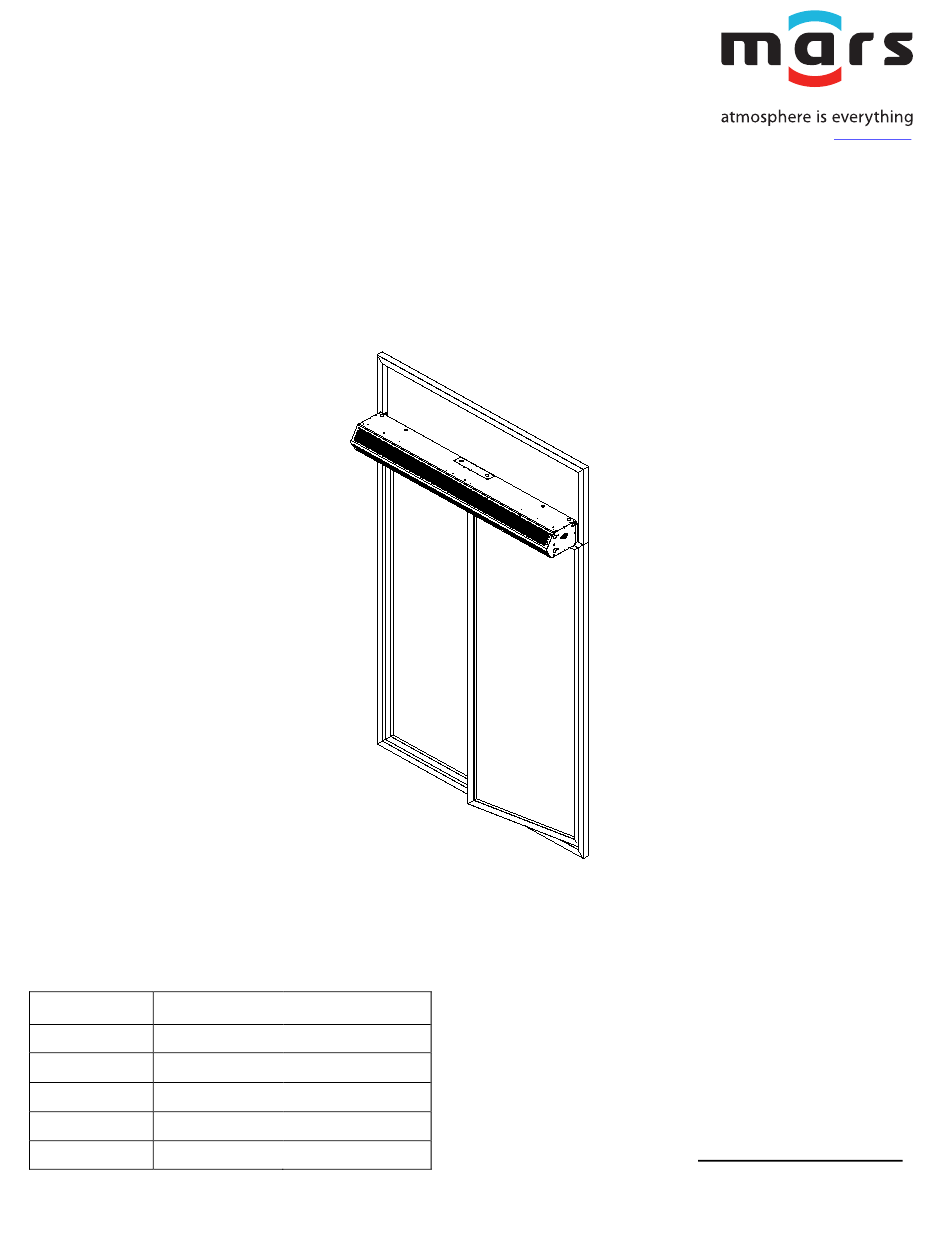

LoPro2 Submittal Package
LPV2 Unheated Series 2
P.O.#
S.Q.
Company
Print Name
Signature
Date
(Electronic Signature Preferred)
NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements
for previously purchased equipment.
14716 S. BROADWAY, GARDENA, CA 90248 ● Ph: (310)532-1555 Fax: (310)-532-3030 ●
LoPro Series 2
Air Curtain
Submittal Package
Submitted by:
Mars Air Systems, LLC
14716 S. Broadway
Gardena, CA 90248
MARS AIR SYSTEMS, LLC
GARDENA, CA
●
© Copyright Mars Air Systems, LLC 2014
Company Seal or Stamp
USA
●
www.marsair.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mars LPV2 2 Series
Summary of Contents for Mars LPV2 2 Series
- Page 1 Company Seal or Stamp (Electronic Signature Preferred) NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
-
Page 2: Table Of Contents
CSI Spec Reference Links NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment. MARS AIR SYSTEMS, LLC GARDENA, CA ●... -
Page 4: Copyright Mars Air Systems, Llc 2014
(25” & 36”) - 49 dBA, (42”) - 50 dBA, (48”) - 52 dBA, (60”-96”) - 53 dBA & (108”-144”) - 54 COLOR NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment. - Page 6 LPV2/LPN2 115V Unheated Wiring diagram with Door switch LPV2 Wiring LPN2 Wiring Main power from circuit breaker at 115v 1MTR 1MTR...
- Page 7 LPV2/LPN2 208/230V Unheated Wiring diagram with Door switch LPV2 Wiring LPN2 Wiring Main power from circuit breaker at 208/230v 1MTR 1MTR...
-
Page 8: Accessory Installation Supplement
3. All wiring must be per local and NEC (National Electric Code) codes. 1. Mars door limit and magnetic reed switches are 4. Panels or controllers may be required. Refer to wiring available with NEMA 1, 4X and 7 ratings. Contact the diagram inside the control panel box. - Page 9 Document No: ACC-IOM Date: 04/13/2013 Bracket Installation 1. Side Extension Plates: For doorways wider than the air curtain, use combination of Side Extension Plates and Adjustable Mounting Brackets. (FIG. 5) FIG. 7 (WMI/WMH Shown) FIG. 5 (LPV SHOWN) 2. Adjustable Mounting Brackets: For installation of air curtain over drum-style roll-up door, use Extended Wall Mounting Brackets.
-
Page 10: Installation, Operation And Maintenance
Protect yourself and others by observing all safety information. Failure to comply with these instructions could result in personal injury and/or property damage. Retain these instructions for future reference. OVERVIEW GENERAL SAFETY INFORMATION Mars Air Curtains are Use this product only in designed cover the manner intended door openings, by the manufacturer. - Page 11 Verify that all parts, components and accessories, and the correct quantities of each have been received. If any FIG. 1 items are missing, report shortages to Mars Air Systems directly to arrange for obtaining the missing items. Again, verify quantities received against those on the Bill of Lading only, as multiple shipments may be involved.
- Page 12 NOTE 6. Use four (4) threaded rods for overhead installation or For accessory installation, reference Accessory four (4) threaded bolts for wall installation. All hardware Installation Supplement. is field provided by others. (FIG. 3) For heated products, reference Heated Products Supplement.
- Page 13 DISCLAIMER use. On average, under normal use conditions, the product should require a thorough cleaning once every Mars reserves the right to change specifications and six (6) months. product design without notice. Such revisions do not entitle...
- Page 14 TROUBLESHOOTING PROBLEM CAUSE SOLUTION NO AIR BLOWING - No power being supplied to the unit OUT OF DISCHARGE - Confirm power source / check if in on position from the electrical power source NOZZLE -Circuit breaker is tripped - Reset circuit breaker - Blown fuses on power supply - Replace fuses - Allow the motor to cool down;...
- Page 15 TROUBLESHOOTING MOTOR To determine if the motor is in good operating condition, compare measured motor resistance at the motor terminals to the values shown below. MARS MOTOR RESTANCE READINGS Single Phase Motors MOTOR WIRES OR TERMINAL (T) OHM READINGS HIGH SPEED (1750) MEDIUM SPEED (1650) LOW SPEED (1450) Applicable Black Motor Wire &...
- Page 16 Mars is not responsible. The warranty does not cover damages caused by mishandling during transportation. The warranty is voided by removal or alteration of Mars...
- Page 17 Mars Low Profile Series 2-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC SECTION 23 34 33 AIR CURTAINS Important Note: This specification contains hidden text appearing in red. To show or remove hidden text in MSWord, click the “File” tab or “Office” icon on the top-left corner, select “Options,” select “Display,”...
- Page 18 Mars Low Profile Series 2-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Section 26 05 00 – Equipment Wiring: Connections to building power distribution. REFERENCES ASTM A240 / A240M -10 – Standard Specification for Chromium and Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications.
-
Page 19: Troubleshooting Guide
Mars Low Profile Series 2-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC LEED Submittals: Provide documentation of how the requirements of Credit will be met: List of proposed materials with recycled content. Indicate post-consumer recycled content and pre-consumer recycled content for each product having recycled content. -
Page 20: Warranty
PART 2 PRODUCTS MANUFACTURER Acceptable Manufacturer: Mars Air Systems, LLC; 14716 South Broadway St., Gardena, CA 90248. Tel: (310) 532-1555 or (800) 421-1266. Fax: (310) 324-3030. Email: info@marsair.com. Web: www.marsair.com. Delete one of the following two paragraphs: coordinate with requirements of Division 1 section on product options and substitutions. - Page 21 Mars Low Profile Series 2-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Unheated: 8-7/8 inches deep by 8 inches high (including discharge nozzle) by width of unit. Electric Heated: 11-3/4 inches deep by 8 inches high (including discharge nozzle) by width of unit.
- Page 22 Mars Low Profile Series 2-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC LPV272-1: 72 Inch (1830 mm) Wide Units: 1800 feet/min (9.1 m/s) single 1/6HP motor/fan assembly. LPV284-2: 86 Inch (2184 mm) Wide Units: 1800 feet/min (9.1 m/s) two 1/6HP motor/fan assembly.
- Page 23 Mars Low Profile Series 2-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC LPN2108-2: 110 Inch (2794 mm) Wide Units: 1800 feet/min (9.1 m/s) two 1/6HP motor/fan assembly. LPN2120-2: 122 Inch (3099 mm) Wide Units: 1800 feet/min (9.1 m/s) two 1/6HP motor/fan assembly.
- Page 24 Mars Low Profile Series 2-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Thermostat: Wall-mounted 208-Volt operation, with heater on/off selection. Thermostat: Wall-mounted 230-Volt operation, with heater on/off selection. Thermostat: Wall-mounted optional 24-Volt operation, with heater on/off selection. Hot Water Heaters: Provide finned tube water coils for field mounting on air intake side of the air curtain cabinet with opposite end connections.
- Page 25 Mars Low Profile Series 2-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Summer-Winter modes 24/7 timer Maintenance schedule alerts Status display showing date, time, temperature and air curtain mode Multi-unit control capability English (IP) or Metric (SI) display readings Password protected...
- Page 26 Mars Low Profile Series 2-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Install door limit switches and adjust for correct operation. Provide connection to piped services and utilities as specified in Section 22 10 00 and 23 21 00. FIELD QUALITY CONTROL Adjust air curtains to function properly.
-
Page 27: Reference Links
LPV2 Series CSI spec (Word doc) NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
