Mars QuietPro QP10 Series Manual
Hide thumbs
Also See for QuietPro QP10 Series:
- Manual (36 pages) ,
- Installation, operation and maintenance manual (4 pages) ,
- Manual (30 pages)
Table of Contents
Advertisement
Quick Links
QP10 Submittal Package
14716 S. BROADWAY, GARDENA, CA 90248 ● Ph: (310)532-1555 Fax: (310)-532-3030 ●
www.marsair.com
© Copyright Mars Air Systems, LLC 2014

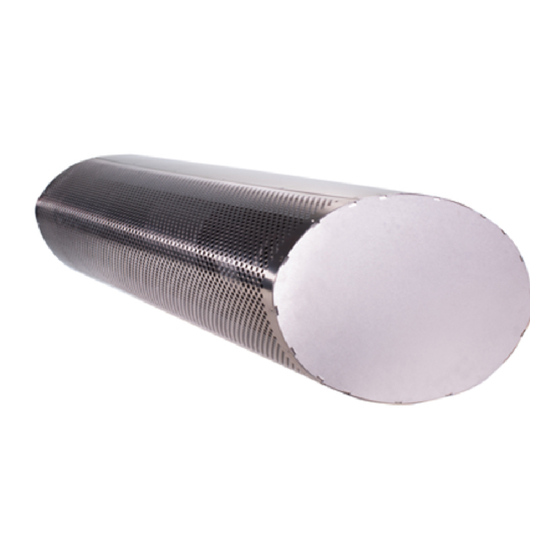

QP10 Unheated Series
QuietPro 10 Series
Commercial Air Curtain

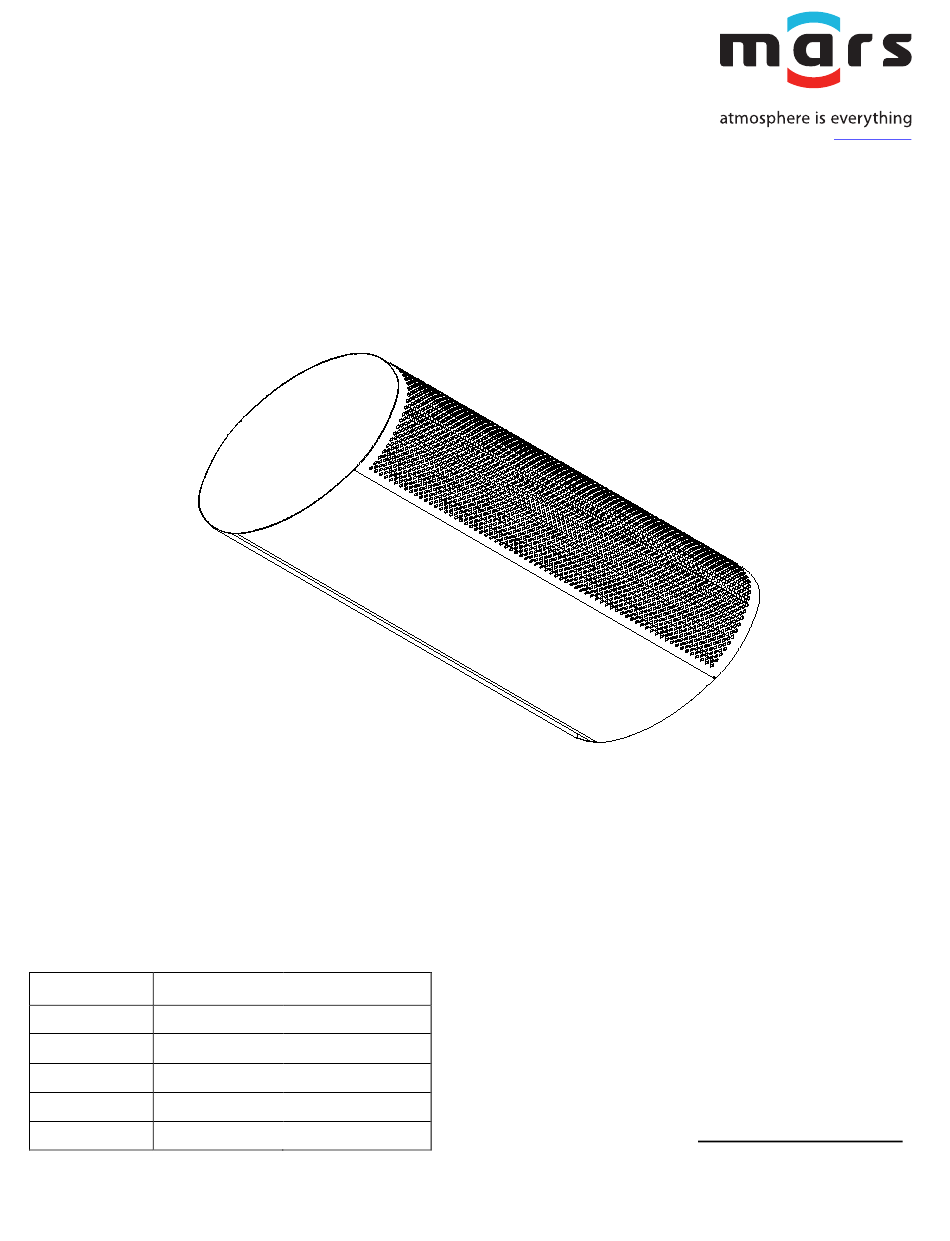

Submittal Package
Submitted by:
Mars Air Systems, LLC
14716 S. Broadway
Gardena, CA 90248
P.O.#
S.Q.
Company
Print Name
Signature
Date
Company Seal or Stamp
(Electronic Signature Preferred)
NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements
for previously purchased equipment.
MARS AIR SYSTEMS, LLC
GARDENA, CA
USA
●
●
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Mars QuietPro QP10 Series
Summary of Contents for Mars QuietPro QP10 Series
- Page 1 Company Seal or Stamp (Electronic Signature Preferred) NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
- Page 2 CSI Spec Reference Links NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment. MARS AIR SYSTEMS, LLC GARDENA, CA ●...
- Page 4 60" 1158 NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment. MARS AIR SYSTEMS, LLC GARDENA, CA ●...
- Page 6 3. All wiring must be per local and NEC (National Electric Code) codes. 1. Mars door limit and magnetic reed switches are 4. Panels or controllers may be required. Refer to wiring available with NEMA 1, 4X and 7 ratings. Contact the diagram inside the control panel box.
- Page 7 Document No: ACC-IOM Date: 04/13/2013 Bracket Installation 1. Side Extension Plates: For doorways wider than the air curtain, use combination of Side Extension Plates and Adjustable Mounting Brackets. (FIG. 5) FIG. 7 (WMI/WMH Shown) FIG. 5 (LPV SHOWN) 2. Adjustable Mounting Brackets: For installation of air curtain over drum-style roll-up door, use Extended Wall Mounting Brackets.
-
Page 8: General Safety Information
Protect yourself and others by observing all safety information. Failure to comply with these instructions could result in personal injury and/or property damage. Retain these instructions for future reference. OVERVIEW GENERAL SAFETY INFORMATION Mars Air Curtains are designed to cover door Use this product only in openings, providing the manner intended by... -
Page 9: Receiving And Inspection
Verify that all parts, components and accessories, and the correct quantities of each have been received. If any items are missing, report shortages to Mars Air Systems directly to arrange for obtaining the missing items. Again, verify quantities received against those on the Bill of Lading only, as multiple shipments may be involved. - Page 10 10-15° towards the outside, or the wind load. (FIG. 4) POWER Typical Door Limit PANEL Switch Installation for Split Sliding Doors MARS Typical Door Limit Switch Installation for Commercial Swing Doors CONTROL PANEL Typical Door Limit Switch Installation for...
-
Page 11: Maintenance
Mars reserves the right to change specifications and 3. To access the interior of the product, remove the air product design without notice. Such revisions do not intake grille and/or air intake filter. -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION NO AIR BLOWING - No power being supplied to the unit OUT OF DISCHARGE - Confirm power source / check if in on position from the electrical power source NOZZLE - Circuit breaker is tripped - Reset circuit breaker - Blown fuses on power supply - Replace fuses - Allow the motor to cool down;... -
Page 13: Troubleshooting Motor
TROUBLESHOOTING MOTOR To determine if the motor is in good operating condition, compare measured motor resistance at the motor terminals to the values shown below. MARS MOTOR RESISTANCE READINGS Single Phase Motors MOTOR WIRES OR TERMINAL (T) OHM READINGS HIGH SPEED (1750) MEDIUM SPEED (1650) LOW SPEED (1450) Applicable Black Motor Wire &... -
Page 14: Warranty
Mars’ warranty coverage, period, extent, and limitations apply to the product only. It does not apply Date Purchased: ____________________________ to labor. Mars warrants that the Mars product 1) is Dealer Purchased From: ______________________ free from defects in materials and workmanship, and 2) conforms to Mars’... - Page 15 Mars QuietPro 10-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC SECTION 23 34 33 AIR CURTAINS Important Note: This specification contains hidden text appearing in red. To show or remove hidden text in MSWord, click the “File” tab or “Office” icon on the top-left corner, select “Options,” select “Display,”...
- Page 16 Mars QuietPro 10-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Section 26 05 00 – Equipment Wiring: Connections to building power distribution. REFERENCES ASTM A240 / A240M -10 – Standard Specification for Chromium and Chromium. ASTM A591 / A591M -98 – Standard Specification for Steel Sheet, Electrolytic Zinc- Coated, for Light Coating Weight (Mass) Application (Withdrawn in 2005, replaced by A879/A879M).
-
Page 17: Quality Assurance
Mars QuietPro 10-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Verification Samples: For each finish product specified, two samples, minimum size 6.25 inches (160 mm) square, representing actual product, color, and patterns. Manufacturer's Certificates: Certify products meet or exceed specified requirements. - Page 18 MARS AIR SYSTEMS, LLC PART 2 PRODUCTS MANUFACTURER Acceptable Manufacturer: Mars Air Systems, LLC; 14716 South Broadway St., Gardena, CA 90248. Tel: (310) 532-1555 or (800) 421-1266. Fax: (310) 324-3030. Email: info@marsair.com. Web: www.marsair.com. Delete one of the following two paragraphs: coordinate with requirements of Division 1 section on product options and substitutions.
- Page 19 Mars QuietPro 10-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Unheated: 20 inches deep by 12 inches high (including discharge nozzle) by width of unit. Electric Heated: 20 inches deep by 12 inches high (including discharge nozzle) by width of unit.
- Page 20 Mars QuietPro 10-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC QP10120-3: 120 Inch (3050 mm) Wide Units: 2084 feet/min (10.6 m/s) three 1/2HP motor/fan assemblies. QP10144-3: 144 Inch (3660 mm) Wide Units: 1730 feet/min (8.8 m/s) three 1/2HP motor/fan assemblies. Air Speed at Floor: Minimum of 400 fpm (2 m/s) at 3 feet (914 mm) from the floor.
- Page 21 Mars QuietPro 10-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Coils: Certified in accordance with AHRI 410. Connections: Opposite end. Connections: Same end, right hand. Connections: Same end, left hand. Casing: One-piece unpainted galvanized steel, bolted to air curtain housing. Supply and return fittings on top of casing.
- Page 22 Mars QuietPro 10-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Remote Mounted High Resolution 5” Color LCD Display with Capacitive Touch technology Fully programmable controller Pre-set and fully customizable programs Time delay (Passive & Adaptive) Factory Integrated temperature control sensors. No external thermostat required.
- Page 23 Mars QuietPro 10-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Auto Lock display Emergency shut-off button High temperature lock from fan failure Low voltage control signal for door activation Integrated BMS controls VFD compatible with 0-10VDC output Optional BACnet option Optional adaptive fan speed control and heat control based on existing field conditions.
- Page 24 Mars QuietPro 10-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Install air curtains plumb, level, square, true to line, and weathertight, without warp or rack. Anchor air curtains securely in place to supports. Coordinate with sheet metal flashing as specified in Section 07 62 00.
- Page 25 QuietPro Series CSI spec (Word doc) NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
