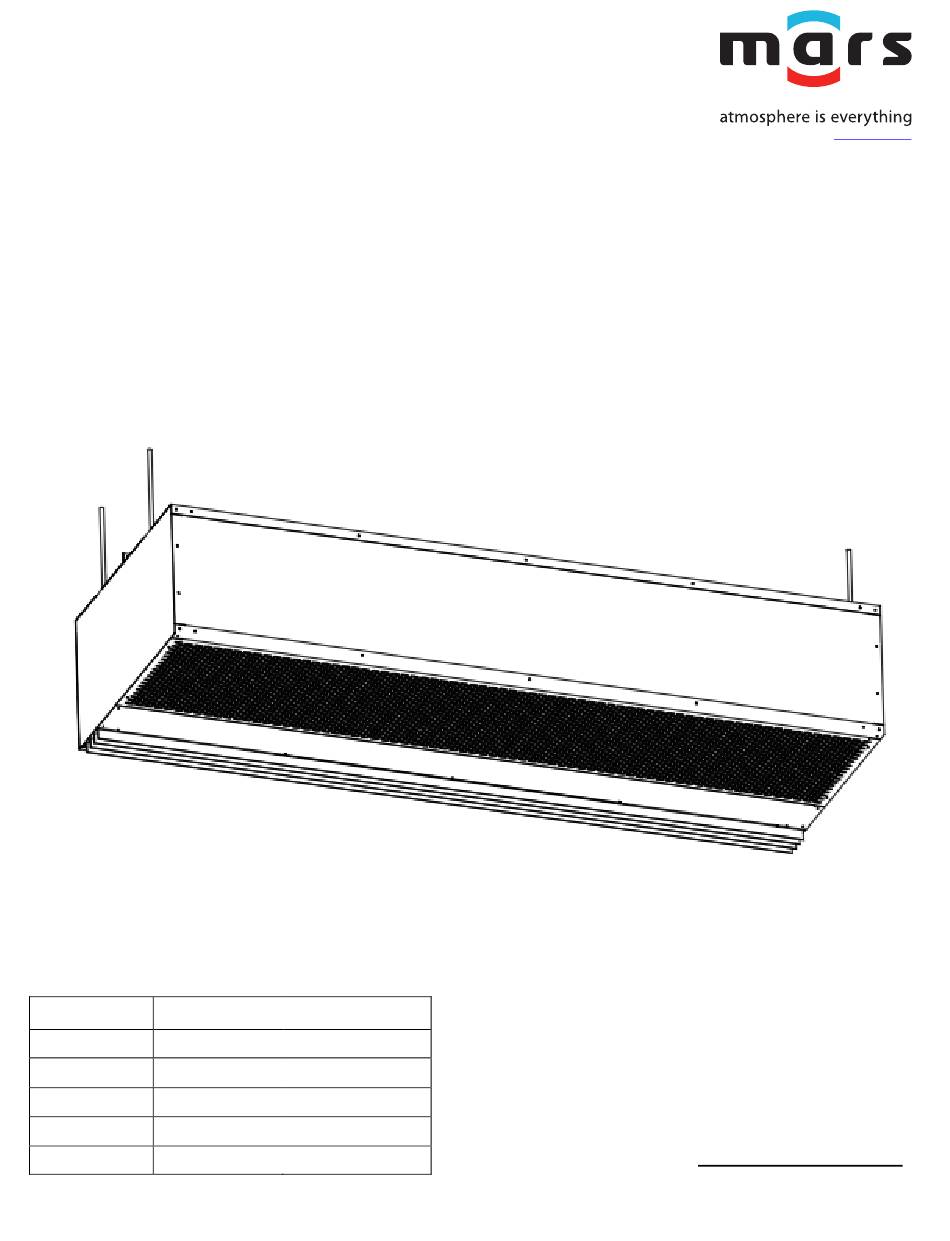

PH12 Submittal Package

PH12 Electric Heated

P.O.#

S.Q.

Company

Print Name

Signature

Date

(Electronic Signature Preferred)

NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements

for previously purchased equipment.

14716 S. BROADWAY, GARDENA, CA 90248 ● Ph: (310)532-1555 Fax: (310)-532-3030 ●

Series

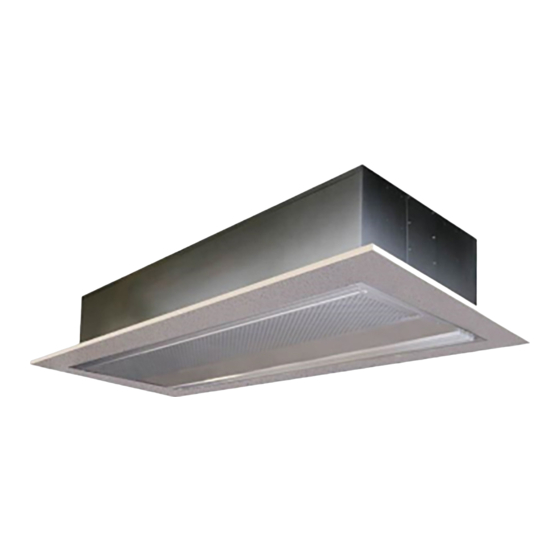

Phantom 12 Series

Commercial Air Curtain

Submittal Package

Submitted by:

Mars Air Systems, LLC

14716 S. Broadway

Gardena, CA 90248

MARS AIR SYSTEMS, LLC

GARDENA, CA

●

Company Seal or Stamp

USA

●

www.marsair.com

Need help?

Do you have a question about the Phantom 12 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Mars Phantom 12 Series

Page 1 Company Seal or Stamp (Electronic Signature Preferred) NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
Page 2 CSI Spec Reference Links NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment. MARS AIR SYSTEMS, LLC GARDENA, CA ●...
Page 4 NOTE: Models PH1260-1 & PH12120-2 are not AMCA Certified. NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
Page 7 99-277 – Thermostat, 24 Volt, Single Stage, R.W. 99-182 - Cover, Lockable, Clear NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
Page 8 3. All wiring must be per local and NEC (National Electric Code) codes. 1. Mars door limit and magnetic reed switches are 4. Panels or controllers may be required. Refer to wiring available with NEMA 1, 4X and 7 ratings. Contact the diagram inside the control panel box.
Page 9 Document No: ACC-IOM Date: 04/13/2013 Bracket Installation 1. Side Extension Plates: For doorways wider than the air curtain, use combination of Side Extension Plates and Adjustable Mounting Brackets. (FIG. 5) FIG. 7 (WMI/WMH Shown) FIG. 5 (LPV SHOWN) 2. Adjustable Mounting Brackets: For installation of air curtain over drum-style roll-up door, use Extended Wall Mounting Brackets.
Page 10 To reduce the risk of fire, electric shock, or injury to inside or the protected side of the opening. The motors persons, observe the following. used in the Phantom 10 and Phantom 12 series are 1/2 A. Always disconnect, lock and tag power source before HP and 1 HP, respectively.
Page 11 Verify that all parts, components and accessories, and FIG 1 the correct quantities of each have been received. If any items are missing, report shortages to Mars Air Systems directly to arrange for obtaining the missing items. Again, verify quantities received against those on the Bill of Lading only, as multiple shipments may be involved.
Page 12 WARNING The following items must all be completed by a qualified installer and checked off when completed A. Re-check that the product has been installed properly and is level and secure. B. Check all terminal screws are tight and field wiring is connected in accordance to National Electrical Code and wired per the enclosed wiring diagram.
Page 13 (6) months. DISCLAIMER To clean the product, perform the following: Mars reserves the right to change specifications and product design without notice. Such revisions do not 1. Verify the product has been disconnected from the entitle...
Page 14 Document No: HT-IOM Date: 04/09/2020 HEATED PRODUCTS SUPPLEMENT NOTE Before proceeding, refer to the units specific IOM Manual for safety, installation and start information. Verify proper voltage to the product per local and NEC codes. Ensure proper rotation for units with three phase motors.
Page 15 Steam and Hot Water Coil Heated Products Steam/Hot Water Coil (coil) heated products must be mounted on the inside of the building. The coil(s) for Low Profile, Standard, High Velocity, Extra Power and Phantom units are shipped internally mounted to the unit. Wind Stopping and WindGuard units are shipped with coil(s) factory mounted.
Page 16 TROUBLESHOOTING PROBLEM CAUSE SOLUTION NO AIR BLOWING - No power being supplied to the unit OUT OF DISCHARGE - Confirm power source / check if in on position from the electrical power source NOZZLE - Circuit breaker is tripped - Reset circuit breaker - Blown fuses on power supply - Replace fuses - Allow the motor to cool down;...
Page 17 TROUBLESHOOTING MOTOR To determine if the motor is in good operating condition, compare measured motor resistance at the motor terminals to the values shown below. MARS MOTOR RESISTANCE READINGS Single Phase Motors MOTOR WIRES OR TERMINAL (T) OHM READINGS HIGH SPEED (1750) MEDIUM SPEED (1650) LOW SPEED (1450) Applicable Black Motor Wire &...
Page 18 Mars’ warranty coverage, period, extent, and limitations apply to the product only. It does not apply Date Purchased: ____________________________ to labor. Mars warrants that the Mars product 1) is Dealer Purchased From: ______________________ free from defects in materials and workmanship, and 2) conforms to Mars’...
Page 19 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC SECTION 23 34 33 AIR CURTAINS Important Note: This specification contains hidden text appearing in red. To show or remove hidden text in MSWord, click the “File” tab or “Office” icon on the top-left corner, select “Options,” select “Display,”...
Page 20 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Section 26 05 00 – Equipment Wiring: Connections to building power distribution. REFERENCES ASTM A240 / A240M -10 – Standard Specification for Chromium and Chromium. ASTM A591/A591M Standard Specification for Steel Sheet, Electrolytic Zinc-Coated, for Light Coating Weight Applications ASTM B209 –...
Page 21 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC LEED Submittals: Provide documentation of how the requirements of Credit will be met: List of proposed materials with recycled content. Indicate post-consumer recycled content and pre-consumer recycled content for each product having recycled content.
Page 22 PART 2 PRODUCTS MANUFACTURER Acceptable Manufacturer: Mars Air Systems, LLC; 14716 South Broadway St., Gardena, CA 90248. Tel: (310) 532-1555 or (800) 421-1266. Fax: (310) 324-3030. Email: info@marsair.com. Web: www.marsair.com. Delete one of the following two paragraphs: coordinate with requirements of Division 1 section on product options and substitutions.
Page 23 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Provide resilient isolation dampening mountings between motor frame and motor mounting pan. Factory balanced blower wheel assembly statically and dynamically. Housing: Self-contained one-piece type for units up to 72 inches in length with sufficient strength for mounting from pre-punched mounting holes at both ends to ceiling without intermediate support.
Page 24 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC PH12 84-2: 84 Inch (2133 mm) Wide Units: 2824 feet/min (14.3 m/s) two 1HP motor/fan assemblies. PH12 96-2: 96 Inch (2440 mm) Wide Units: 2534 feet/min (12.9 m/s) two 1HP motor/fan assemblies.
Page 25 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Hot Water Heaters: Provide finned tube water coils for field mounting on air intake side of the air curtain cabinet with opposite end connections. Meets NEC and CEC tested by ETL Certified to conform to UL1995(US) and CSA22.2 (Canada) Standards.
Page 26 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Optional Digital Programmable Controller: Remote Mounted High Resolution 5” Color LCD Display with Capacitive Touch technology Fully programmable controller Pre-set and fully customizable programs Time delay (Passive & Adaptive) Factory Integrated temperature control sensors. No external thermostat required.
Page 27 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC Password protected Auto Lock display Emergency shut-off button High temperature lock from fan failure Low voltage control signal for door activation Integrated BMS controls VFD compatible with 0-10VDC output Optional BACnet option Optional adaptive fan speed control and heat control based on existing field conditions.
Page 28 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC INSTALLATION Install air curtains in accordance with approved shop drawings and manufacturer's printed installation instructions. Install air curtains plumb, level, square, true to line, and weathertight, without warp or rack. Anchor air curtains securely in place to supports.
Page 29 Mars Phantom 12-CSI-Spec Revised 2/3/2021 MARS AIR SYSTEMS, LLC SCHEDULES Refer to Air Curtain Schedule appended to this section. END OF SECTION 23 34 33 – 11...
Page 30 Phantom Series CSI spec (Word doc) NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
