Eaton COOPER POWER Series Installation Instructions Manual
Two-position sidewall (horizontal) and cover (vertical) mounted loadbreak switches
Hide thumbs
Also See for COOPER POWER Series:
- Installation, operation and maintenance manual (189 pages) ,
- Installation, operation and maintenance instructions (128 pages) ,
- Installation and operation instructions manual (52 pages)
Related Manuals for Eaton COOPER POWER Series
Summary of Contents for Eaton COOPER POWER Series

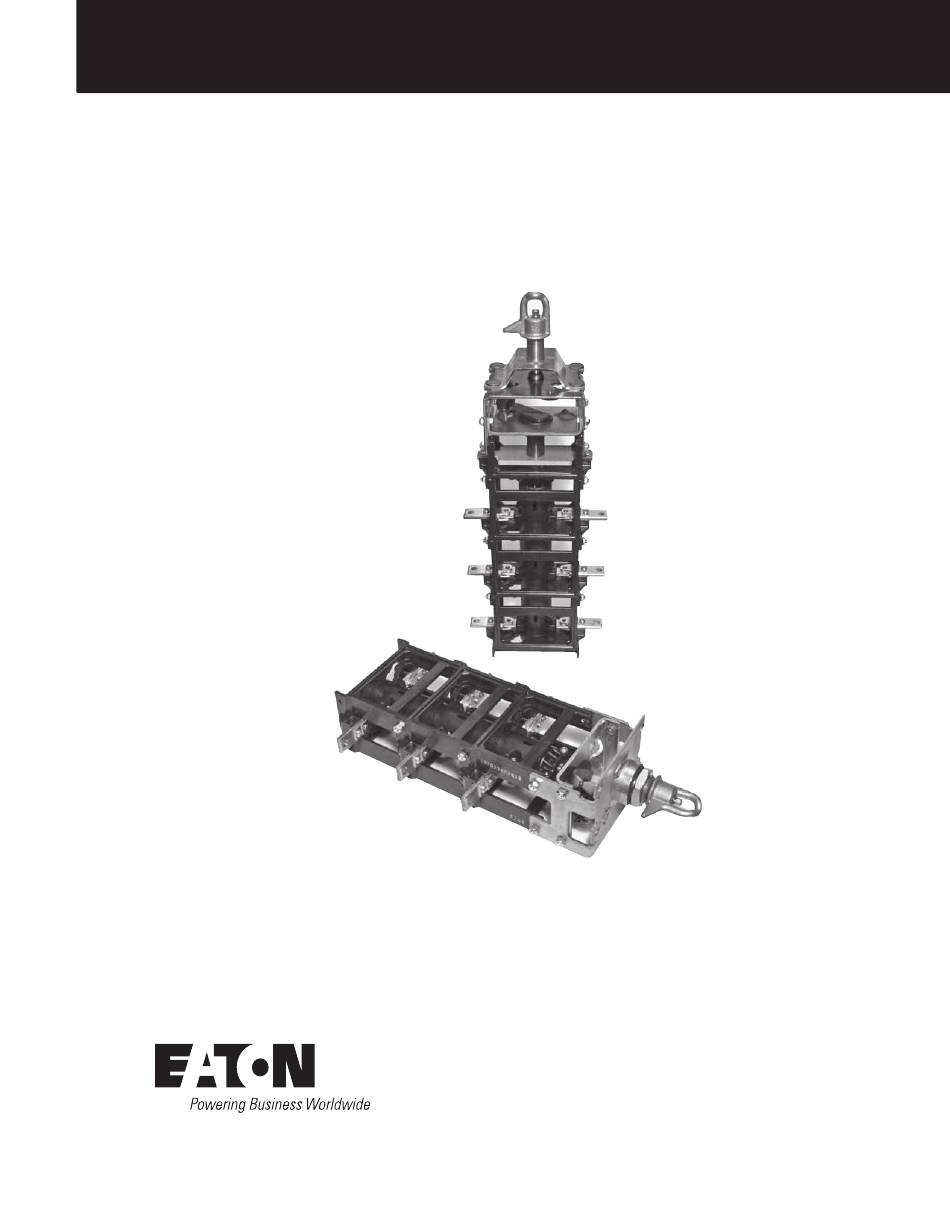

- Page 1 COOPER POWER OEM Equipment SERIES Effective July 2015 MN800004EN Supersedes S800-65-2 August 2012 Two-position sidewall (horizontal) and cover (vertical) mounted loadbreak switches installation instructions...
-
Page 2: Disclaimer Of Warranties And Limitation Of Liability
CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other- wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to damage or... -
Page 3: Table Of Contents
Contents SAFETY INFORMATION Safety Information ................iv PRODUCT INFORMATION Introduction . -
Page 4: Safety Information
FOR LIFE FOR LIFE Eaton meets or exceeds all applicable industry standards relating to product safety in its Cooper Power™ series products. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing, and service. -
Page 5: Product Information
Product information Introduction HANDLE Eaton's Cooper Power™ series compact two-position mounted loadbreak/loadmake switch is designed for use in RING MOUNT transformer oil, Envirotemp™ FR3™ fluid, or an approved ASSEMBLY TERMINAL PAD equivalent fluid-filled “Class 1”... -
Page 6: Electrical Ratings And Characteristics Table
.629" (16 installed unless approved by your Eaton representative. mm) plug gauge to assure proper clearances have been maintained for acceptance of switch shaft. -
Page 7: Ring-Mount Assembly
Ring mount assembly (horizontal and vertical mount) HEX SOCKET ote: The tank wall should have a 1.320" (33.5 mm) CAP SCREW LOCKWASHER (FURNISHED) diameter hole with an anti-rotation key. Switch should (FURNISHED) be located to ensure recommended clearances in HANDLE Figure 5 are maintained. -
Page 8: Connect Internal Leads
This information is not intended as a substitute for adequate training and experience in such design. Should clarification or further information be required for the user’s purposes, contact your Eaton representative. 3.50" 6.0" 6.0" (89 mm) 1.75"... -
Page 9: Dimensional Information
Dimensional information Table 4. Dimensional Information for Figure 6 Dimensions w/Standard Configuration Dimensions w/Short Dimensions w/Full Dimensions w/Short ( 1 / 2 ) Deck Extension ( 1 / 2 ) Deck + Full Deck (No Extensions) Deck Extension Number of Inches/(mm) Inches/(mm) Inches/(mm) -
Page 10: Ring-Mount Assembly
Table 5. Dimensional Information for Figure 7 Ring Mount w/Standard Configuration (No Extensions) Ring Mount w/Full Deck Extension Inches/(mm) Inches/(mm) Number of Decks Number of Decks or Phases "A" "B" or Phases "A" "B" 7.83 11.6 (198 mm) (295 mm) 11.64 15.4 10.2... -
Page 11: Operation
Failure to do so will constitute a waiver of all warranty and indemnity obligations which may be attributable to Eaton. TWO-POSITION SIDEWALL AND COVER MOUNTED LOADBREAK SWITCHES INSTALLATION INSTRUCTIONS MN800004EN July 2015... - Page 12 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton and Cooper Power are valuable Eaton.com trademarks of Eaton, in the U.S. and other countries. You are not permitted to use Eaton’s Cooper Power Systems these trademarks without the prior Division written consent of Eaton.
