Allmatic BIOS2 230V RNS Installation And Use Manual

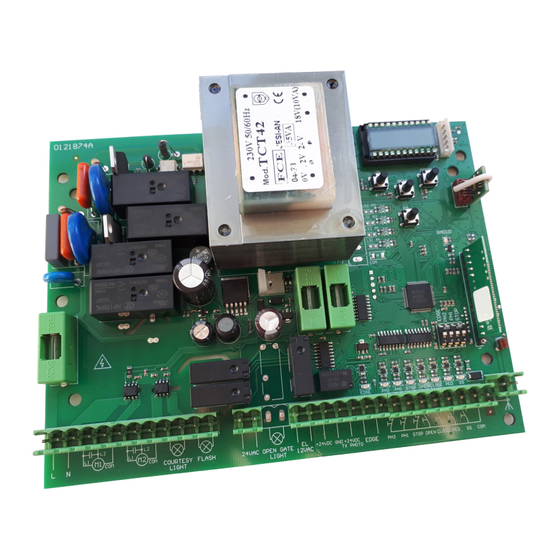

Control unit for swing gates
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BIOS2 RNS
CONTROL UNIT FOR SWING GATES
CONTROL UNIT FOR SWING GATES
INSTALLATION AND USE MANUAL
BIOS2 230V RNS
BIOS2 120V RNS
6-1622470M - rev. 0 - 10/06/2024
ENGLISH - Translated from the original language

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIOS2 230V RNS and is the answer not in the manual?

Questions and answers

Related Manuals for Allmatic BIOS2 230V RNS

Summary of Contents for Allmatic BIOS2 230V RNS

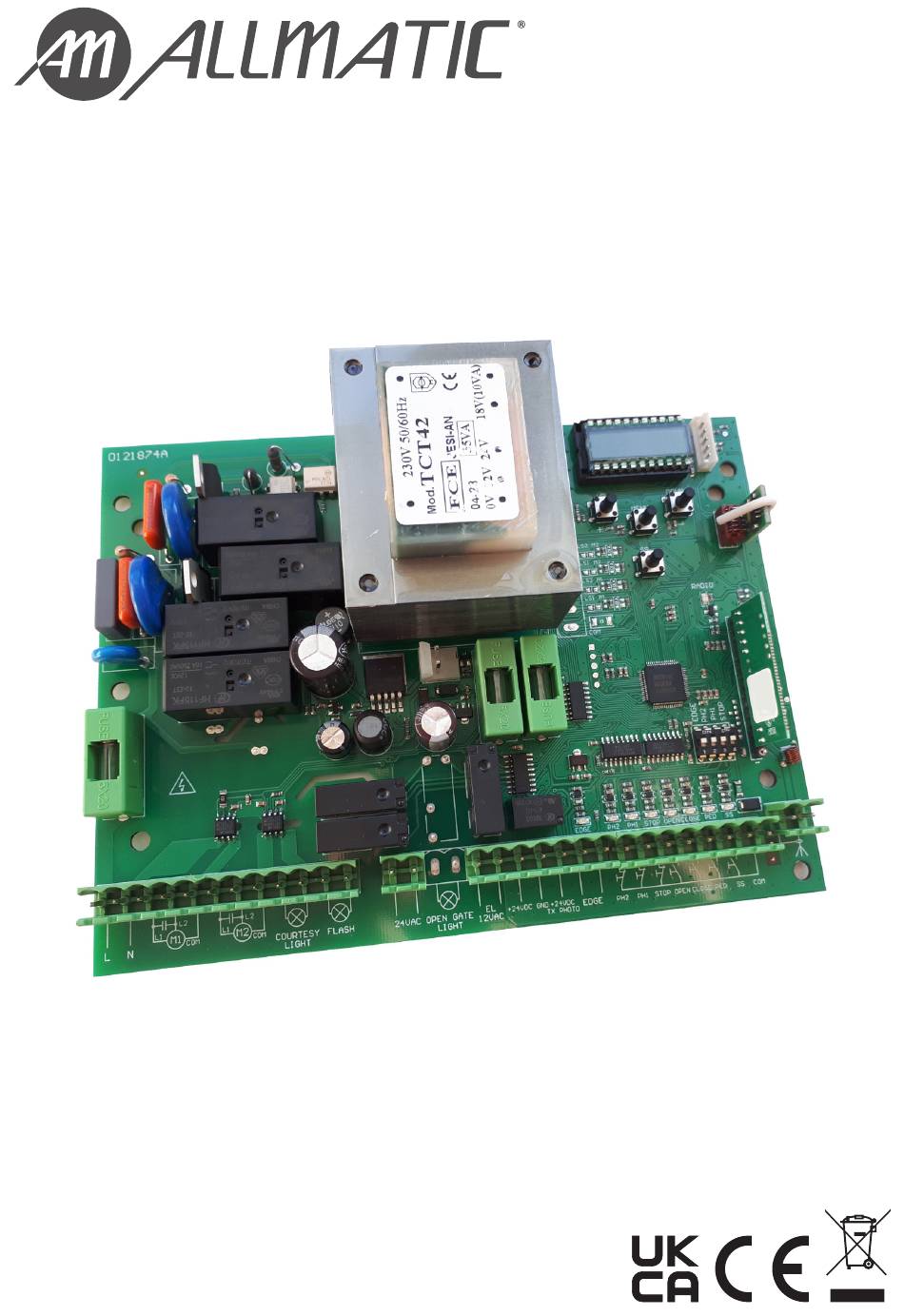

  • Page 1 BIOS2 RNS CONTROL UNIT FOR SWING GATES CONTROL UNIT FOR SWING GATES INSTALLATION AND USE MANUAL BIOS2 230V RNS BIOS2 120V RNS 6-1622470M - rev. 0 - 10/06/2024 ENGLISH - Translated from the original language...
  • Page 2 INDEX 1. GENERAL WARNINGS FOR THE INSTALLER 1.1 - GUIDELINES ON ELECTRICAL CONNECTIONS 2. PRODUCT DESCRIPTION 2.1 - INTENDED USE 2.2 - TECHNICAL CHARACTERISTICS 2.3 - DIMENSIONS AND ANCHORAGE POINTS 2.4 - VIEW OF THE ELECTRONIC BOARD 3. ELECTRICAL CONNECTION 3.1 - CONNECTION OF MAIN POWER SUPPLY 3.2 - MOTOR CONNECTION 3.3 - ELECTRICAL CONNECTIONS OF SIGNALLING DEVICES...
  • Page 3 1. GENERAL WARNINGS FOR THE INSTALLER DANGER RISK OF ELECTRIC SHOCK, EXPLOSION OR ELECTRIC ARC • Shut down all equipment, including connected devices, before removing any lid or door, or before installing/uninstalling accessories, hardware, cables or wires, except for the conditions specified in the user manual for this equipment.
  • Page 4 WARNING GENERAL ASPECTS OF SAFETY AND REGULATORY INCOMPATIBILITY • Any use of this product other than the permitted use /intended use is prohibited. • The manufacturer cannot be held responsible for any damage that occurs as a result of improper use or as a result of an installation that does not comply with the requirements of this manual.

  • Page 5: Clamp Position

    1.1 - GUIDELINES ON ELECTRICAL CONNECTIONS Prepare cable ducts on the installation site. The cables for the connection of the various devices in a typical plant are listed in the table below and must be suitable for the type of installation, for example we recommend a cable type H07RN-F for outdoor installation. CONNECTION CABLE LENGTH...

  • Page 6: Product Description

    Control unit for geared motors with two-phase electric motors, installed on gates with hinged doors. DANGER Any installation or use other than as indicated in the following manual is prohibited. 2.2 - TECHNICAL CHARACTERISTICS Commercial name BIOS2 230V RNS BIOS2 120V RNS Construction of the device Independent electronic control device Purpose of the device...
  • Page 7 2.3 - DIMENSIONS AND ANCHORAGE POINTS WARNING • Grommets and gaskets must be installed to ensure IP65 protection of the box. • Replace the grommets with plugs on the holes that are not used. IP65 • Install the box so that the output of the cables is facing down. •...
  • Page 8 2.4 - VIEW OF THE ELECTRONIC BOARD   30 31 3 4 5 6 7 8 9 10 11 12 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 Display and buttons Radio memory Radio LED Radio module DIP-SWITCH selector for the exclusion of safety inputs...
  • Page 9 3. ELECTRICAL CONNECTION 3.1 - CONNECTION OF MAIN POWER SUPPLY # TERMINAL FUNCTION DESCRIPTION L - Phase cable Connect power from network distribution (Valim). N - Neutral cable 3.2 - MOTOR CONNECTION WARNING • Connect to the output MOTOR 1 the gear motor that must be activated first during opening. •...
  • Page 10 3.3 - ELECTRICAL CONNECTIONS OF SIGNALLING DEVICES # TERMINAL FUNCTION DESCRIPTION 9 - 10 Courtesy light MAX 100W 11 - 12 Flashing light MAX 60W The outputs are active during the opening and closing phases of the automation. Refer to the advanced parameters to configure the flashing mode and the lighting time of the courtesy light. 3.4 - POWER SUPPLY CONNECTION FOR ACCESSORIES # TERMINAL FUNCTION...
  • Page 11 3.5 - CONNECTION OF AN ELECTRIC LOCK # TERMINAL FUNCTION DESCRIPTION 15 - 16 Electric Lock 12Vac 15VA MAX Terminal for the connection of an electric lock. Provides tension before performing the opening movement starting from the position of "CLOSED GATE". Refer to advanced parameters to enable output and customize its usage.
  • Page 12 # TERMINAL FUNCTION DESCRIPTION PHOTOCELL INPUT PH2 Connect a clean contact (voltage free) Normally PHOTOCELL INPUT PH1 Closed. STOP Signal LED Normally On. COMMON CONTACT STOP button When it intervenes it completely stops the automation and prevents any automated or user command. PHOTOCELL input PH1 During the closing movement, it stops the movement of the automation and performs a reversal until the gate reaches the OPEN GATE position.

  • Page 13: Partial Opening

    3.7 - ELECTRICAL CONNECTIONS OF CONTROL DEVICES # TERMINAL FUNCTION DESCRIPTION OPEN CLOSE Connect a clean contact (voltage free) Normally PARTIAL OPENING Open. LED signal Normally OFF. STEP-BY-STEP COMMON CONTACT OPEN function Performs a full opening. If kept active, keep the gate in the "GATE OPEN" position and ignore any other commands. CLOSE function Performs a complete closing.

  • Page 14: Installation Tips

    3.8 - ANTENNA CONNECTION AND RADIO COMMUNICATION WARNING • Do not place the control unit inside metal containers. • The maximum range may vary significantly in the presence of metal parts, in the presence of shielding between the transmitter and the control unit or in the presence of other devices that communicate at the same radio frequency.
  • Page 15 4. PROGRAMMING DANGER The operations described in this chapter to finalize the installation must be carried out in the presence of voltage, therefore they must be carried out only by experienced personnel, qualified and taking all neces- sary precautions to ensure safe execution. Check that the operating area is free from any obstacles.
  • Page 16 4.2 - DISPLAY MODE The display available in the control unit allows you to view a lot of information such as the status of the automation, the number of movements performed, anomalies detected, etc. There are 6 types of views available. To switch from one type to another press the DOWN button.

  • Page 17: Standard View

    4.3 - STANDARD VIEW DISPLAY DESCRIPTION Standing by after power supply connection. Automation in CLOSED GATE position. Automation stops in OPEN GATE position, without automatic closing. Automation stops in the PARTIAL OPENING position, without automatic closing. Automation in opening movement. Automation in closing movement.
  • Page 18 4.4 - LEARNING OF A REMOTE CONTROL The learning of a transmitter can be activated via the UP button of the control unit or via the hidden button of a transmitter already stored. The control unit can store up to 1000 remote controls (with memory card) and each of them can associate up to 4 functions, no more than one function per key available.
  • Page 19 LEARNING WITH THE HIDDEN BUTTON OF A LEARNED TRANSMITTER NOTE • The use of the hidden button, if present, of a transmitter already learned involves the entry in learning mode of all the automations in which it is associated. Make sure that unwanted remote controls are not learned.
  • Page 20 4.5 - LEARNING OF THE STROKE At the first installation it is necessary to check the presence of mechanical stops for the open gate and closed gate positions. Refer to the installation manual of the electric motor. Once the tests are completed, the learning procedure must be performed to detect the total length of the stroke, the length of the slowdowns and all the other areas of the installation necessary for the correct functioning of the automation.
  • Page 21 STANDARD PROCEDURE FOR LEARNING With the standard learning, the control unit performs independently the calculation of the slowdown areas, which will be regulated with the same amplitude both in opening and closing (see basic parameter "Lsi"). In this procedure you need to provide the limit points with a step-by-step control. NOTE •...
  • Page 22 MENU DOWN Once you have reached the closing mechanical stop, press the SS button. At this stage the M1 motor moves by learning the opening time.  The display shows " LOP ". MENU DOWN Once you have reached the closing mechanical stop, press the SS button.
  • Page 23 LEARNING WITH CUSTOMISED SLOWDOWNS With personalized learning, the amplitudes of the slowdowns are adjusted by the user during the learning procedure. In this proce- dure you need to provide the limit points with a step-by-step control. NOTE • If the procedure starts while the limit switches are active, or if a safety device is involved during move- ment, the procedure is stopped and the words "L-- "...
  • Page 24 At this stage the M1 motor moves by learning the closing time. The display shows "LCL".  When the door reaches the desired position of slowdown start providing a step-by-step command. MENU DOWN Once you have reached the closing mechanical stop, press the SS button.

  • Page 25: Parameter List

    4.6 - MENU OF BASIC FUNCTIONS To access the basic function menu, press and hold the MENU button for 1 to 3 seconds. Use the UP and DOWN buttons to scroll through the available features. While displaying a function, the control unit will alternate the display of the item to the value set in it. To change the value of the parameter you are viewing proceed as follows: •...
  • Page 26 Sensitivity on obstacle at full speed NOTE • Too high a level of sensitivity could cause an abnormal behavior of the automation depending on the force that the gear motor needs to move the automation. • Adjust this parameter according to current regulations. Set the sensitivity level for the impact sensor to intervene during gate movement.
  • Page 27 Configuration of the STEP-BY-STEP function NOTE • By setting the CONDOMINIUM functionality you must set an automatic closing time to make the gate close. Customize the action mode of the STEP-BY-STEP function. Normal: ("OPEN" - "STOP" - "CLOSE" - "STOP" - ...) Classic operation of the STEP-BY-STEP mode.
  • Page 28 Width of the slowdown area Adjusts the width of the opening and closing slowdown area as a percentage of the total stroke length. With the value "P" you can set custom areas during the learning of the races (see paragraph LEARNING WITH PERSONALIZED SLOWDOWNS).
  • Page 29 4.7 - MENU OF ADVANCED FUNCTIONS To access the advanced features menu, press and hold the MENU button for longer than 5 seconds. Use the UP and DOWN buttons to scroll through the available features. While displaying a function, the control unit will alternate the display of the item to the value set in it. To change the value of the parameter you are viewing proceed as follows: •...
  • Page 30 Duration of the acceleration ramp Time it takes the gate to switch from stationary to moving speed. PARAMETER VALUES DEFAULT from 0 to 30 multiplied by 100 ms 15 = 1500 ms Duration of the deceleration ramp It takes the gate time to change from normal speed to slowdown speed. PARAMETER VALUES DEFAULT...
  • Page 31 Auto-test function of the photocell input WARNING • Activation of the self-test function of the photocell input contributes to the achievement of safety stand- ards throughout the connected control line. Refer to the instruction manual of the connected device for the degree of safety achieved.
  • Page 32 Slowdown ramp on EDGE input intervention It determines how long the gear motor stops its movement following the stop caused by the intervention of the EDGE input. PARAMETER VALUES DEFAULT from 0 to 10 multiplied by 100 ms 10 = 1000 ms Reversal time on EDGE input intervention Determines how long the gear motor performs the movement in the opposite direction following the stop caused by the intervention of the EDGE input (only with IED = 1).
  • Page 33 Amplitude of the partial opening Adjusts the amplitude of the partial opening as a percentage of the total stroke length. Partial opening is possible only starting from the position of "CLOSED GATE", using the appropriate command. Once reached the position of "PARTIAL OPENING" the display shows " PE ". PARAMETER VALUES DEFAULT...
  • Page 34 Courtesy light output configuration Customize the mode of action of the courtesy light output. Value 0: The light goes out at the end of a maneuver, after waiting for the time set in the parameter tCY. Value 1: The light turns off at automation in the position of "CLOSED GATE", after waiting for the time set in the parameter tCY. Value 2: With each command received, the light remains lit only for the time set in the tCy parameter regardless of the position where the gate is located.
  • Page 35 Flashing light for assistance request Enable flashing for service request. PARAMETER VALUES DEFAULT OFF = disabled ON = enabled Water hammer in the opening This function is linked to the use of the electric lock. It consists in performing a short pressure against the mechanical closing stop, while the electric lock is active, to allow its disconnection.
  • Page 36 How to use the electric lock Customize the output activation mode for electric lock connection. This parameter also affects the operation of the connector for the R1 module. Value 0: Deactivated output. Value 1: The electric lock is activated when the automation performs an opening movement. Value 2: The electric lock is activated with a safety advance of 1.5 seconds before performing an opening movement.
  • Page 37 Viewer memory location of a learned transmitter With this parameter you can view the memory location assigned to a transmitter by the control unit during learning. To do this follow the following steps: • Access the parameter by holding down the MENU button for 3 seconds. •...

  • Page 38: Password Management

    4.8 - PASSWORD MANAGEMENT WARNING • Carefully store the 5-digit sequence used to set the password. • If you lose your password, please contact your reseller to restore the system. A 5-digit password can be set using the advanced PASS parameter. Once the setting is made, access to all the parameter menus will always be preceded by the request to enter the password.

  • Page 39: Basic Menu

    ENTER THE PASSWORD TO ACCESS THE MENUS When you press the MENU button, the control panel prompts you to  enter the password to access it. After 2 minutes of inactivity, the control panel automatically exits the password entry screen. Use the UP and DOWN keys to change the digit value.

  • Page 40: Error Messages

    5. ERROR MESSAGES NOTE Message reporting persists as long as the event persists or until the DOWN key is pressed or a handling command is executed. DISPLAY DESCRIPTION SOLUTION • Check the integrity and good condition of the entire gate and automation. Movement stopped by the impact sensor.

  • Page 41: Maintenance

    9. DECLARATION OF CONFORMITY The manufacturer ALLMATIC s.r.l declares that the type of equipment BIOS2 RNS in the intended use complies with the essential requirements set out in Directive RED 2014/53/EU.
  • Page 42 /allmaticsrl ALLMATIC S.r.l 32026 Borgo Valbelluna - Belluno – Italy @allmaticsrl Via dell’Artigiano, n°1 – Z.A. Tel. 0437 751175 – 751163 r.a. Fax 0437 751065 E-mail: info@allmatic.com @AllmaticSrl www.allmatic.com...

This manual is also suitable for:

Bios2 120v rns
