BAXS900
Control Unit for Rolling Shutters
6-1622623 /v. 4 15/09/2020
1. PRODUCT DESCRIPTION
Control unit for rolling shutters with integrated radio receiver. BAXS900 can be controlled via radio, via wired buttons and through
buttons on the front panel. Photocell inputs and safety coast (sensitive edge) are also available.
2. SAFETY WARNINGS
WARNING! This manual is for qualified personnel only
WARNING! The cover can be removed only by qualified personnel because inside there are live
parts
WARNING! Before installation, disconnect the device from the power supply, connect the device
only after having made all the electrical connections

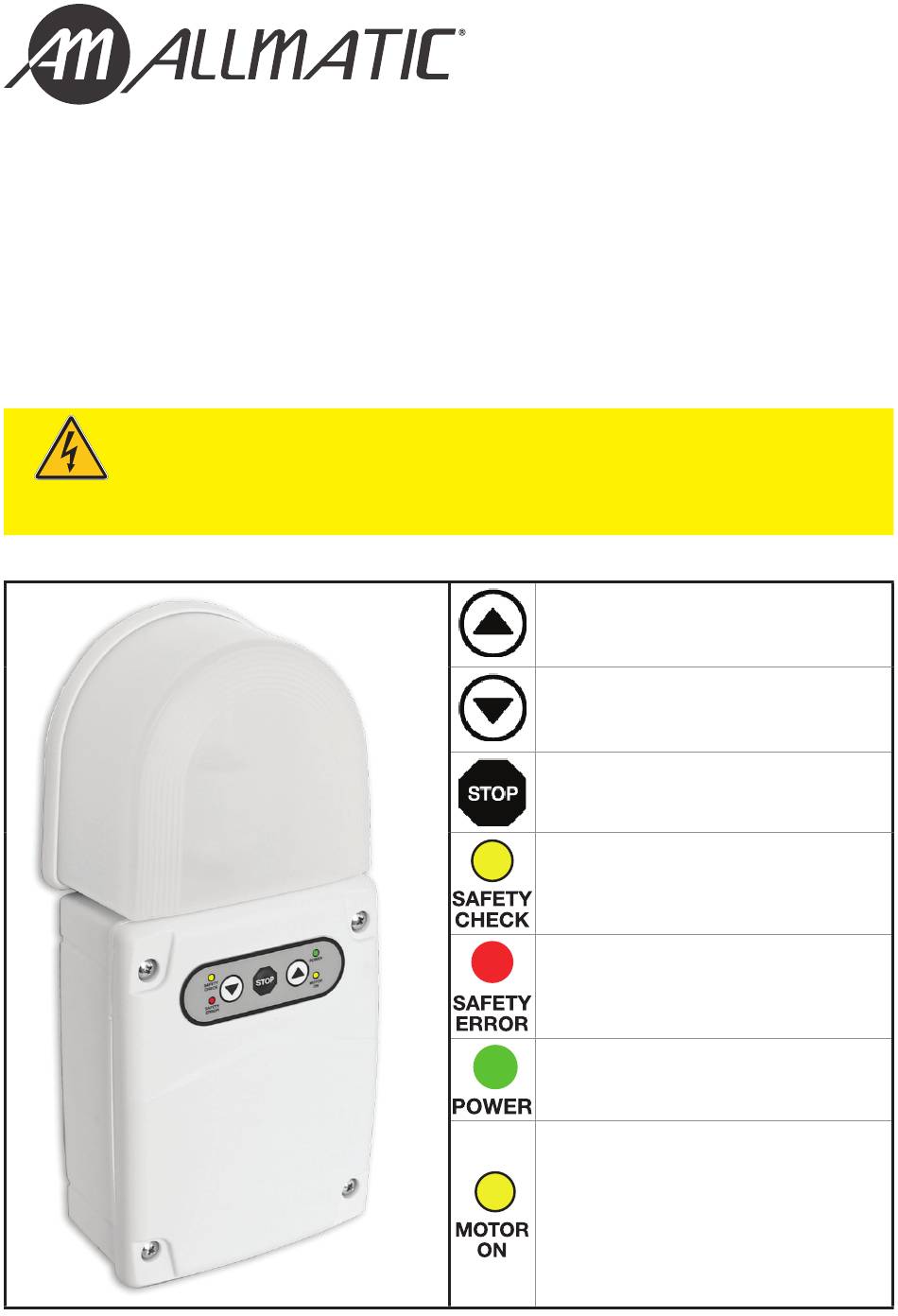

3. DETAIL OF THE FRONT PANEL
UP COMMAND (ASCENT)
(configurable by DIP 1, DIP 4)
DOWN COMMAND (DESCENT)
(configurable by DIP 2, DIP 4) absence of alarms
(DEAD MAN MODE in presence of alarms)
STOP COMMAND
SAFETY CHECK
SECURITY ERROR (PHOTOCELLS, EDGE)
PRESENCE OF POWER SUPPLY
ACTIVE MOTORS
