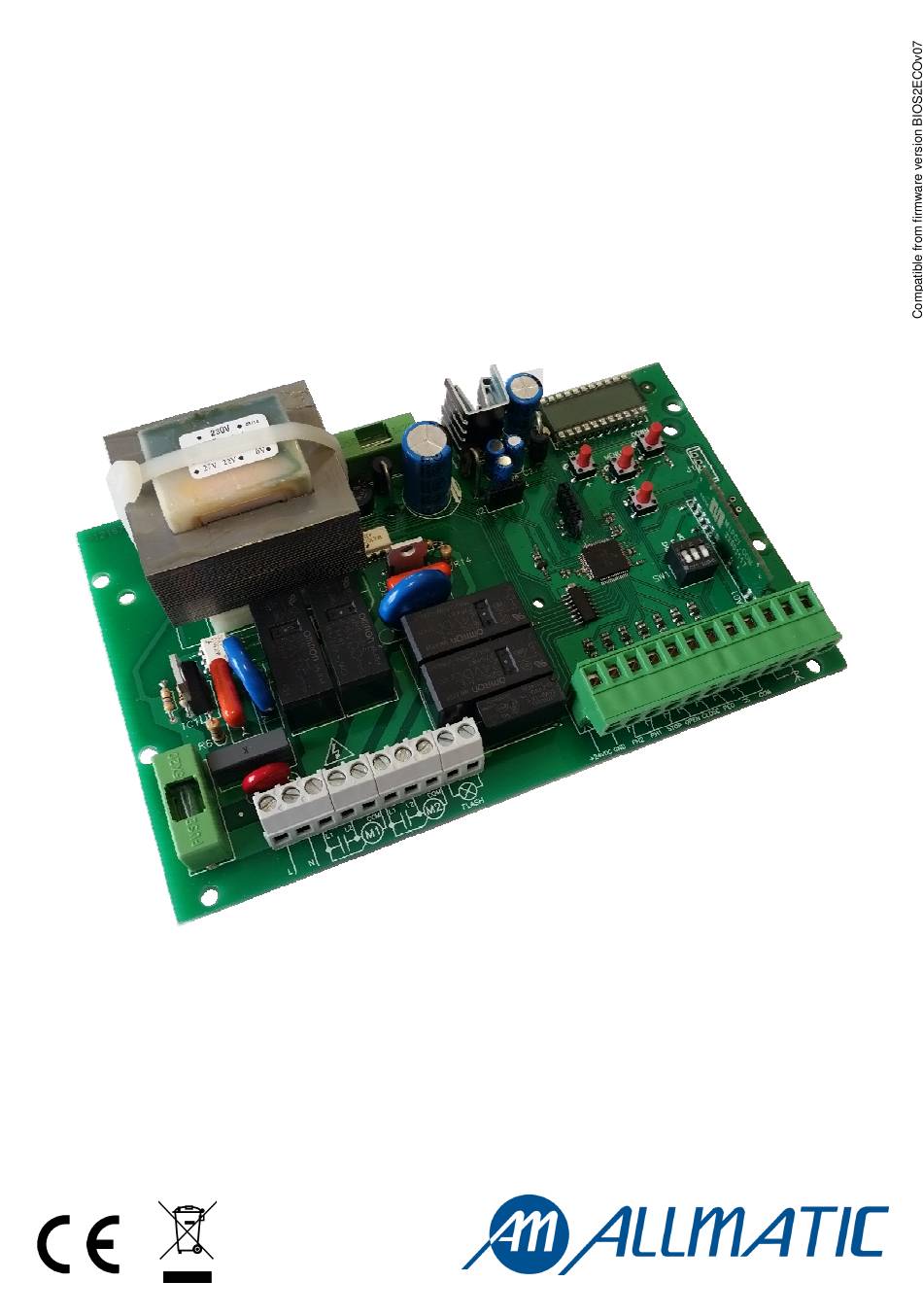

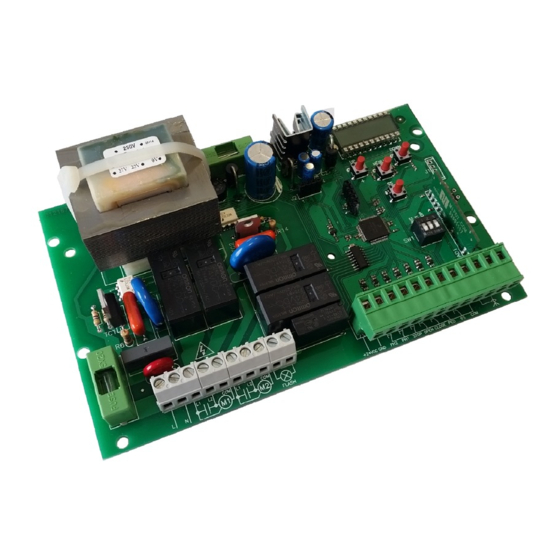

- Page 1 CONTROL UNIT BIOS2 ECO Programmable Control board for wings gates Manual for installation...
- Page 2 1. Introduction The control unit BIOS2 ECO is particularly indicated for the installation of 1 or 2 wing gates with 230 Vac motors with maximum power absorbed of 700W.The control unit equipped with a display that allows a precise regulation of the thrust of the gate. It is also possible to adjust the delay in closure of the second wing in the base settings menu.
- Page 3 ACCESSORIES OUTPUTS Accessories output 24Vdc, to the clamps 11 e and 12 of the control unit 6 W max. OPENING PHOTOCELL INPUT Functioning: Connect the NORMALLY CLOSED contact - Closing: Stops the movement and waits until the of the photocell (PHOTO) between the clamps beam is freed, then moves in opening 13 and 20 of the control unit.
- Page 4 4. Remote control learning 4. Remote control learning 4.1 Learning of one transmitter The 1st memorized key performs the STEP by STEP function (opening and closing of the gate), the 2 key performs the partial opening, the 3 performs the OPEN function, 4 key performs the CLOSE function.
- Page 5 For a correct functioning of the system, it is absolutely indispensable the use of mechanical stops in opening and closing. 5.2 Advanced settings of the wings stroke (parameter LsI LsI = P P P P ) Connect to the MOTOR 1 output the wing which beats. Install an aventual electrical lock on this wing. MOTOR 1 is always activated first during opening phase and in second during closing phase.
- Page 6 6. Menu Ex. Base menu Entering the menu: To enter the base menu settings keep pressed the MENU button for at least one second To enter the advanced menu settings keep pressed the MENU button for at least five seconds Ex.
-
Page 7: Advanced Menu
6.2 Advanced menu: SELECTABLE MENU DESCRIPTION VALUES DEFAULT UNITS min-max LP LP o o o o Partial opening 0-100 r r r r tP tP Pre-flashing time (0 = disabled) 0-10 Courtesy ligth settings Y Y Y Y FC FC 0 = At the end of movement for a TCY time 1 = Open gate light on/off Y Y Y Y... - Page 8 6.3 Menu description: 6.3.1 Base settings menu tCL Auto reclosing time Active when the gate is in the completely open position, the gate automatically closes after tCL seconds. In this phase the display shows with the blinking dash, that during the last 10 seconds will be replaced by the count down. ttr Auto reclosing time after transit If in the opening phase or in the completely open position the beam of the photocells is obscured and freed, the gate automatically closes after ttr seconds when the completely open position is reached, In this phase the display shows...
- Page 9 6.3.2 Advanced menu Lp.o. Partial opening Partial opening can be performed only starting from closed. The parameter sets the opening like a percentage of the total stroke of the first wing. tp.r. Pre-flashing time Pre-flashing before each movement in both directions, tp.r. seconds of pre-flashing fC.y.
- Page 10 7. Display and control unit state 7.1 Normal functioning: Standby - Gate closed Opening phase Closing phase Gate closed by user during opening Gate closed by user during closing Gate stopped by an external event (fotocellule, stop) Gate opened without automatic reclosing Gate opened in partial opening position without automatic reclosing Gate opened waiting for auto reclosing, last 10 seconds the dash will be replaced by the countdown Gate opened in partial opening position waiting for auto reclosing, last 10 seconds the dash will be replaced...
- Page 11 7.3 Input LED and safety devices 8. Technical features POWER SUPPLY AND CONSUMPTION Power supply voltage 230 Vac - 50/60 Hz Absorption from line (Standby) 55 mA @ 230 Vac Standard configuration (2 couple of photocells, RX radio safety edge) Line fuse F6.3A MOTOR POWER SUPPLY...
- Page 12 9. Motors The correct functioning is guaranteed only in the event of Allmatic motors. For a greater safety, it is suggested to insert a fuse (T 3,15A) in series to the common of both the motors. It is available a pre-wired kit (optional) that can be inserted as shown in the drawing below.
