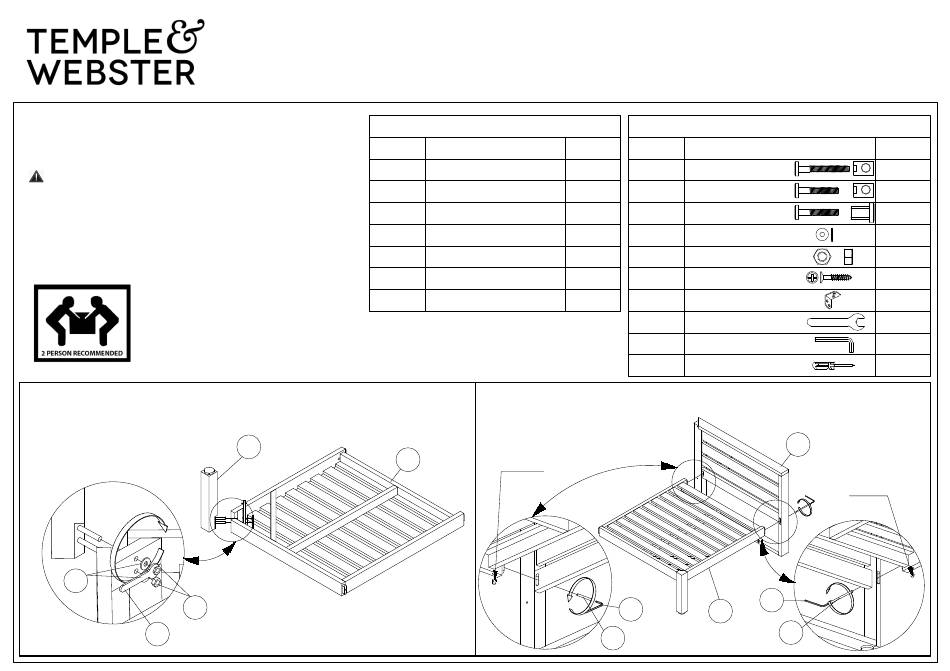

Read these instructions and follow steps carefully to ensure you assemble the
product correctly and avoid damages. Check that all parts and
hardware have been provided before assembling the product. Place all
contents on a clean, soft-flat surface to avoid scratching the product.
CAUTION:
Only tighten bolts to 80% at first. Once all parts have been assembled, fully tighten all
hardware.
To prevent damage to threads, do not use a power tool and do not overtighten bolts.
Use two people to lift and turn the product when assembling.
Do not attempt with only one person and do not roll onto legs.
Keep all hardware and small parts away from children.
STEP 1: Attach leg (A) to base (B). Install washers (4) and lock nuts (5) on each bolt of the
legs as shown below. Use wrench (8) to secure.
4
5
8
ITEM DESCRIPTION
A
B
C
D
E
F
G
A
B

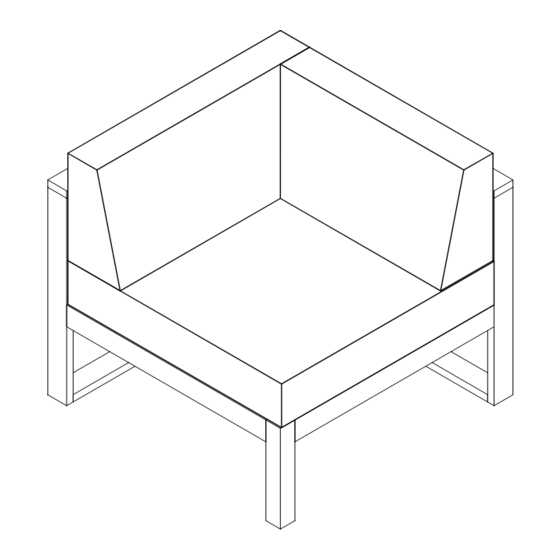

ASSEMBLY INSTRUCTIONS
GLCBCN

PART LIST

QTY
LEG
1PC
BASE
1PC
FRAME LEG 1
1PC
FRAME LEG 2
1PC
BACK CUSHION 1
1PC
BACK CUSHION 2
1PC
BASE CUSHION
1PC
STEP 2: Attach frame leg 1 (C) to base (B). Insert nut (1) & nut (2) into base (B). Then
insert bolt (1) & bolt (2) through frame leg 1 (C) into base (B) as shown below. Tighten with
allen key (9).
NUT
2

HARDWARE LIST

ITEM DESCRIPTION
1
BOLT M6X120
2
BOLT M6X55
3
BOLT M6X55
4
WASHERS
5
LOCK NUT
6
SCREW M4X15
7
BRACKET
8
KEY
9
ALLEN KEY
10
SCREWDRIVER
C
9
9
B
1
QTY
2PCS
1PC
3PCS
2PCS
2PCS
16PCS
4PCS
1PC
2PCS
1PC
NUT
