Ducati Panigale V4
2018-
S U P P L E M E N T A R Y M A N U A L
for BLP-U04

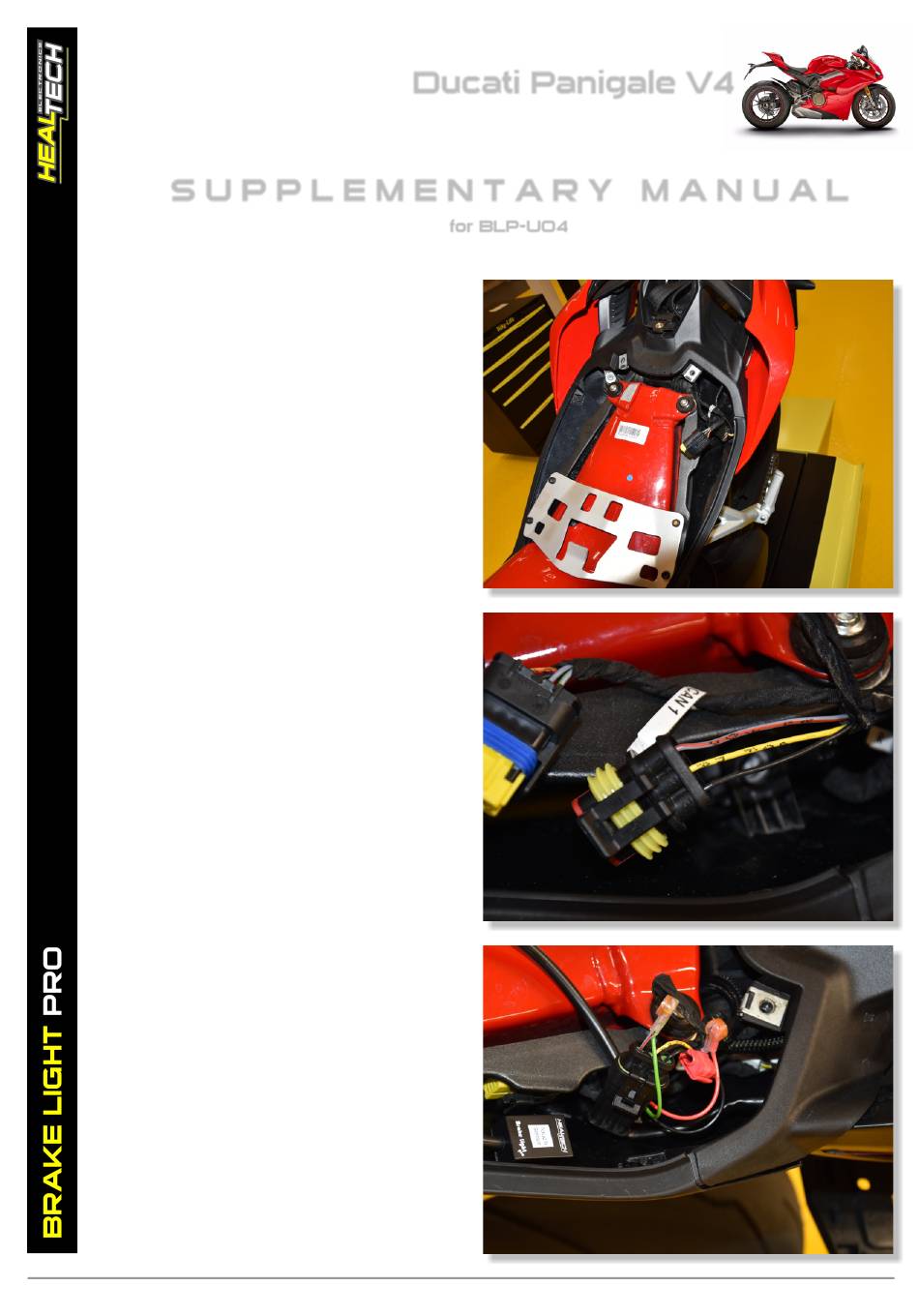

Remove the seats.
Locate the rear light assembly
connector.
(Black, 3-pole connector, next to the
diagnostic port)
Connect the BLP black wire
to the black wire.
Cut the gray/red wire.
Connect the BLP red wire to
the gray/red wire end,
which goes to the bike wiring
harness side.
Connect the BLP green wire to
the gray/red wire end,
which goes to the rear light
assembly.
www.healtech-electronics.com
PAGE 1/2
