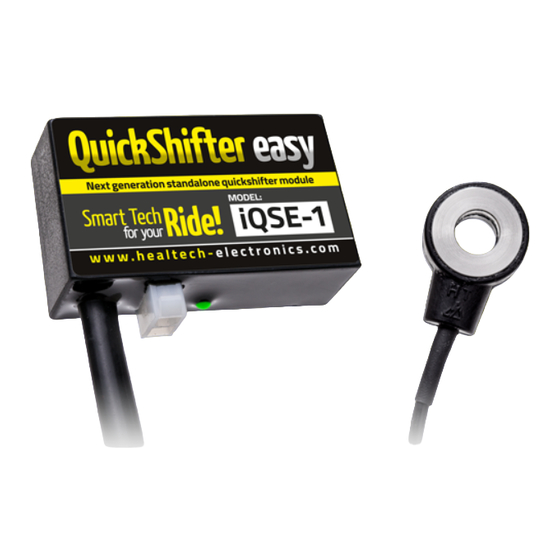

- Page 1 QuickShifter easy Supplementary Manual Kawasaki ZX-10R 2004-2005 (iQSE-1 + QSH-P4A) Remove the passanger seat. Remove the cover between the seats. Remove the main seat. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
- Page 2 QuickShifter easy Supplementary Manual Kawasaki ZX-10R 2004-2005 (iQSE-1 + QSH-P4A) Remove the frame covers below the fuel tank and the main seat. Remove the fuel tank. Remove the airbox. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
- Page 3 QuickShifter easy Supplementary Manual Kawasaki ZX-10R 2004-2005 (iQSE-1 + QSH-P4A) Plug the QSH connectors in-line with the ignition coil connectors. (Black, 2-pole connectors below the airbox) Connect the QSH Black wire terminal to the chassis ground. Mount the QSE sensor.
- Page 4 Supplementary Manual Kawasaki ZX-10R 2004-2005 (iQSE-1 + QSH-P4A) Typical position for the QuickShifter easy. Secure the unit properly. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
