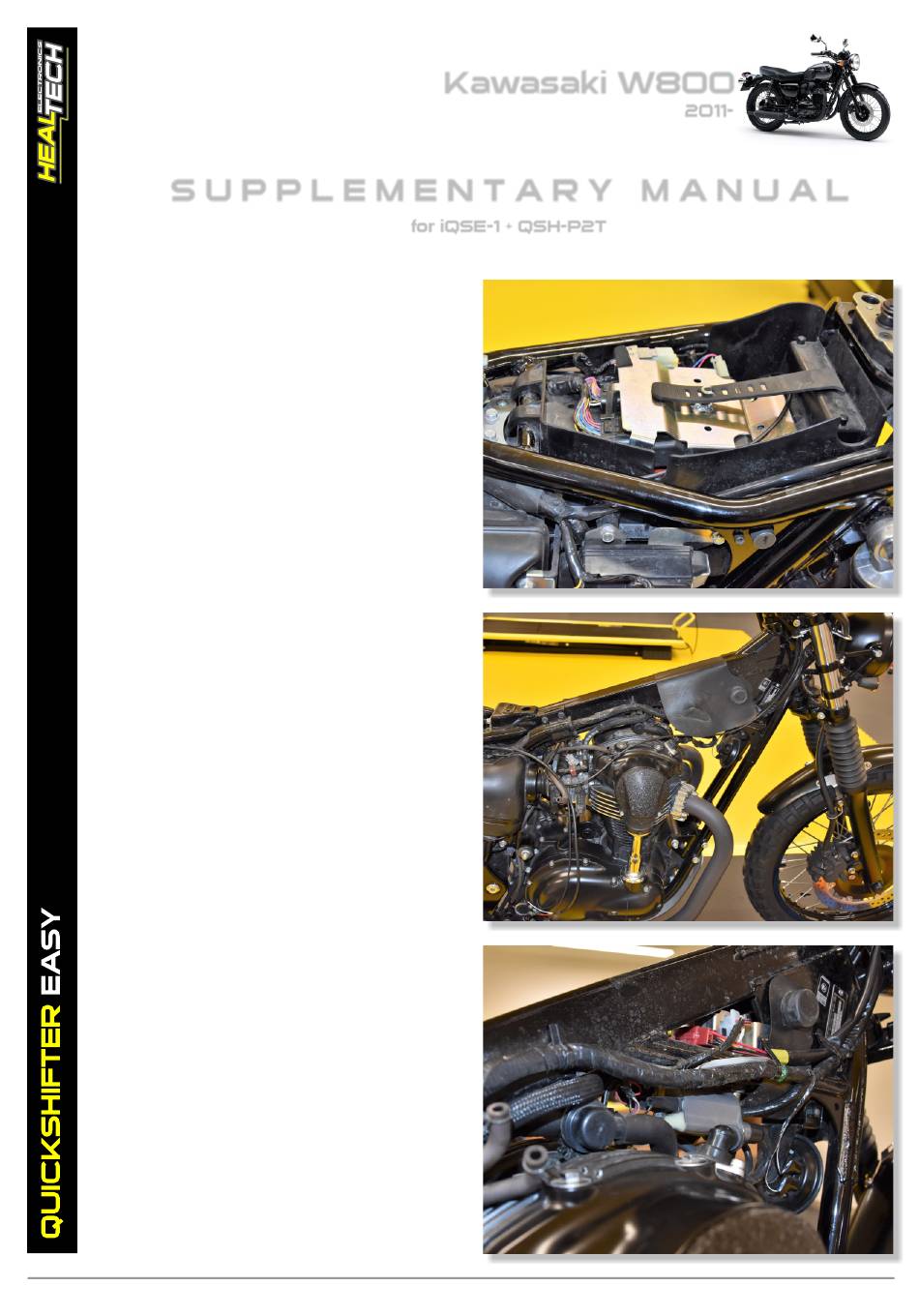

- Page 1 Kawasaki W800 2011- S U P P L E M E N T A R Y M A N U A L for iQSE-1 + QSH-P2T Remove the seat. Lift up or remove the fuel tank. locate the ignition coil terminals on the right side.
- Page 2 Kawasaki W800 2011- S U P P L E M E N T A R Y M A N U A L for iQSE-1 + QSH-P2T Take off the red terminal from the coil. Connect the QSH green terminal to this coil terminal.
- Page 3 Kawasaki W800 2011- S U P P L E M E N T A R Y M A N U A L for iQSE-1 + QSH-P2T Mount the QSE sensor. (Replace the bolt with the one supplied. Tighten the bolt in this position by about 5-6 Nm.
