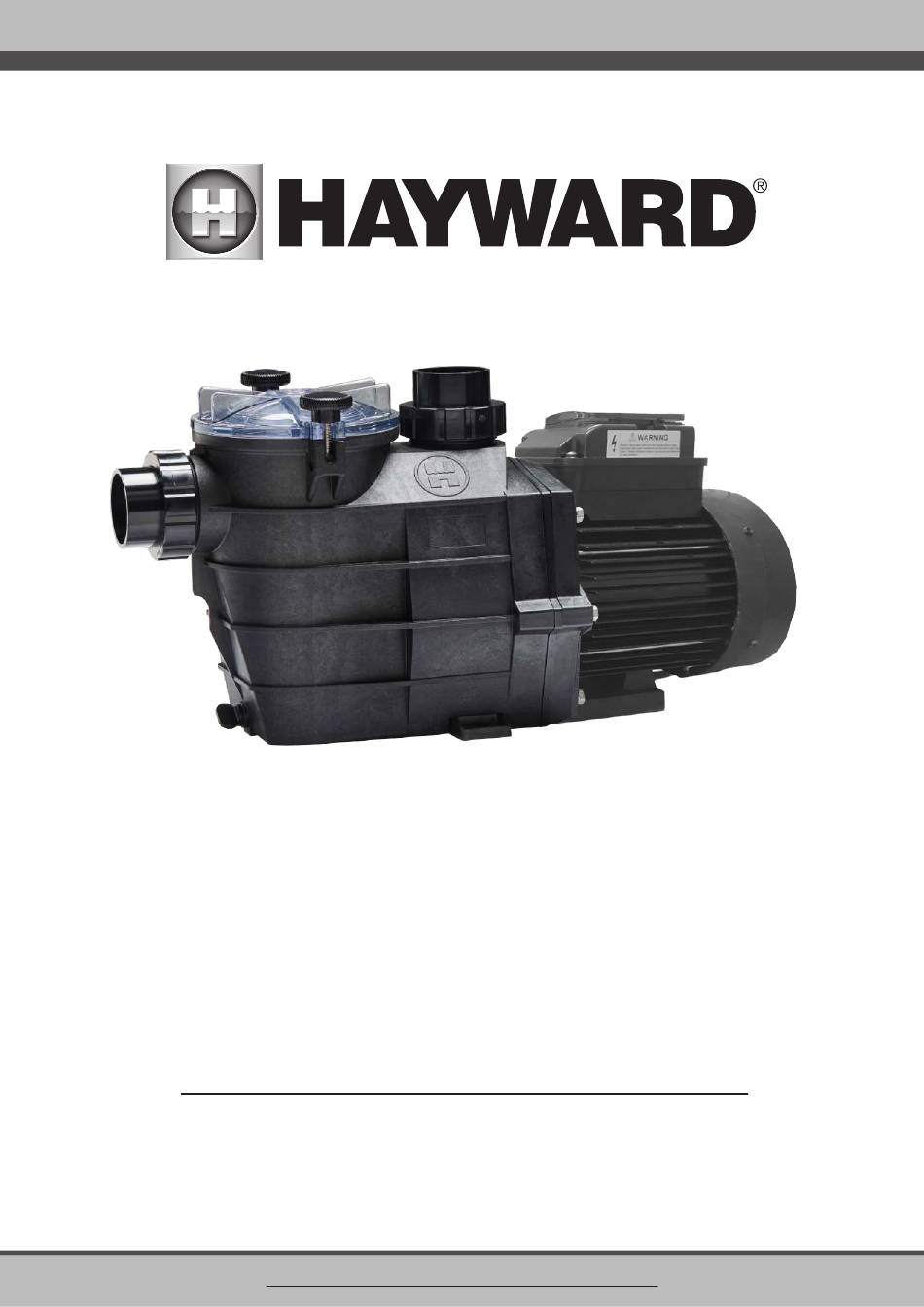

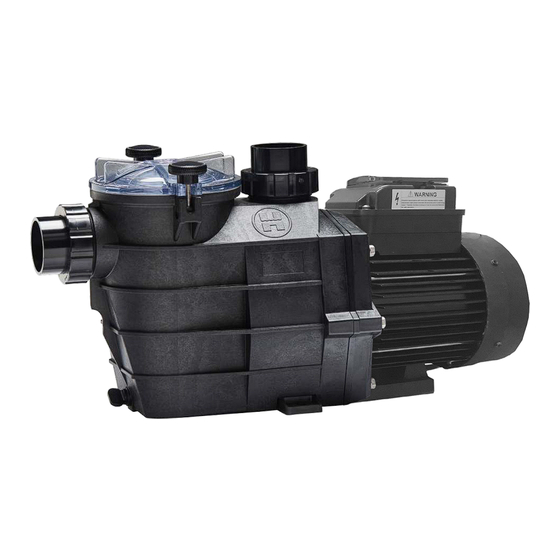

- Page 1 Super Fit II Variable Speed Pump Owner’s Manual To prevent potential injury and to avoid unnecessary service calls read this manual carefully and completely. SAVE THIS INSTRUCTION MANUAL code USE ONLY HAYWARD GENUINE REPLACEMENT PARTS ®...
-
Page 2: Important Safety Instructions
Automatic Restart. The pump motor is automatically protected from overload and overheating. If such an error occurs the controller will automatically try to restart the pump. If a power failure occurs while the pump is running, it will automatically restart once the power has been restored. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS ®... - Page 3 In addition to installing two or more suction outlets per pump, follow all National, State and Local regulations and » AS 1926.3 Latest Edition. Installation of a vacuum release or vent system, which relieves entrapping suction, is recommended. » USE ONLY HAYWARD GENUINE REPLACEMENT PARTS ®...
-
Page 4: Specifications
Flow (Litres/Minute) SUPER FIT II 1HP 2850RPM SUPER FIT II 1.5HP 2850RPM SPECIFICATIONS Model Maximum Total Input Input Noise Weight Ingress Head Amps (kg) Protection 15.8m/155kPa 800W 5.5A SFP3011DIVSP <70 11.5kg IP25 16.5m/160kPa 1300W 8.5A <70 13kg IP25 SFP3015DIVSP USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 5: Installation
INTRODUCTION This manual contains information for the proper installation and operation of the Hayward Super Fit II Variable Speed Pump. The instructions in this manual MUST be followed precisely. Failure to install according to defined instructions will void warranty. Product Dimensions 601 (1HP/1.5HP) - Page 6 Re-apply fresh sealing compound and re-install the threaded fitting. Note: If the pump is being installed using the standard Hayward Universal Union that is supplied with the pump then there is no need to apply any type of thread sealant. The union gasket supplied will seal sufficiently.
-
Page 7: Maintenance
MAINTENANCE The pump is an electrical device and as such should not be disassembled or serviced by anyone other than a Hayward authorised Service Technician or a qualified electrician. An experienced Pool Service Technician should attend to any other problems that cannot be corrected by routine maintenance. - Page 8 High speed (HIGH) is set to a speed of 2850 RPM. The default speeds of the Super Fit II VS can be adjusted to accomodate an individual’s swimming pool requirements. This is achieved Holding down the desired speed button (LOW, MED, or HIGH) for five (5) seconds until the speed displayed on the LCD screen begins flashing.
- Page 9 Disconnect the pump motor power cord from the power outlet before beginning the shaft seal replacement. » Only qualified personnel should attempt to replace the shaft seal. Contact your local authorised Hayward Dealer or » service center if you have any questions.
-
Page 10: Components & Parts
BOLT-3/8-16 X 7/8, 300 SS, HEX SPX0125Z4 MOTOR MOUNTING PLATE SPX3000FDI MOTOR VS 1 HP PMB3D029STH MOTOR VS 1.5 HP PMB3F019STH MOTOR VS 2 HP PMB3K003RFHP BOLT 316 SS 3/8” UNC* 2” LONG SPX1600Z4 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 11: Troubleshooting
Motor Cuts Out Your Hayward pump motor is equipped with Automatic Thermal Overload Protection. The motor will automatically shut-off before heat damage build up can occur due to abnormal operating conditions. The motor will auto-restart when a safe heat level is reached. If the motor fails to restart, switch the power off... - Page 12 - Inspect all equipment/ piping in the system connected to Er04 trip has tripped. the pump for blockages . - If problem persists, contact Hayward for repair/warranty. Over Voltage The line voltage has - The controller will reboot after voltage comes below Er05...
-
Page 13: Standard Conditions
Hayward Pool Products (Australia) warrants that its products are free from defects in materials and manufacture for 12 months from date of supply by Hayward Pool Products (Australia) plus 90 days to allow for installation and supply materials of manufacture or alternatively pay the cost of repair or replacement within 90 days of the receipt of the purchaser and does not pass to any subsequent purchaser(s). - Page 14 Local Branch Customer Service Manager to dispose of them. Hayward Pool Products (Australia) reserves the right to provide replacement or credit for any items authorised under this warranty program.
- Page 15 NOTES USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
