2300 SERIES SELF-PRIMING
MaxFlo VS
™
Owner's Manual
Model SP2300VS

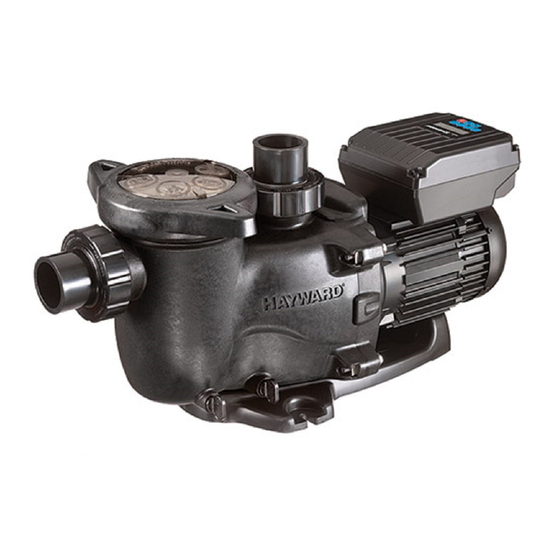

MaxFlo Variable Speed Pump
The Hayward MaxFlo Variable Speed Pump is specifically engineered for the demanding requirements
of today's in-ground/above-ground swimming pool/spa that is equiped with large capacity filters,
heaters, and pool cleaning equipment. The variable speed, totaly enclosed permanment magnet
motor, combined with its advanced hydraulic design provides unparalled energy savings.
MaxFlo VS is designed for pools of all types and sizes, featuring 40mm or 50mm union connection
tails to match a variety of plumbing configurations, and a cam and ramp strainer cover that seals with
less than a quarter turn. The MaxFlo VS is an ideal choice for both new construction or as a
replacement pump on existing pools and spas.
NOTE: To prevent potential injury and to avoid unnecessary service calls,
read this manual carefully and completely.
SAVE THIS INSTRUCTION MANUAL
Hayward Pool Products (Australia) Pty Ltd.
Melbourne-Sydney-Brisbane-Perth
Email: sales@hayward-pool.com.au Website: www.hayward-pool.com.au
P.O Box 4384, Dandenong South, VIC. 3164
ABN 66 083 413 414
Sales Ph 1300POOLS1 Fx 1300POOLS2
30-LITINSB006 Rev-C
Advertisement
Table of Contents
Related Manuals for Hayward MaxFlo VS 2300 Series
Summary of Contents for Hayward MaxFlo VS 2300 Series
- Page 1 Model SP2300VS MaxFlo Variable Speed Pump The Hayward MaxFlo Variable Speed Pump is specifically engineered for the demanding requirements of today’s in-ground/above-ground swimming pool/spa that is equiped with large capacity filters, heaters, and pool cleaning equipment. The variable speed, totaly enclosed permanment magnet motor, combined with its advanced hydraulic design provides unparalled energy savings.
-
Page 2: Important Safety Instructions
All electrical wiring MUST be performed by a qualified electrical contractor, and must conform to local electrical regulations and AS/NZS 3000 Wiring Rules. Use of non-Hayward replacement parts voids warranty. ATTENTION INSTALLER – THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST BE FURNISHED TO THE END USER OF THIS PRODUCT. - Page 3 - In addition to installing two or more suction outlets per pump, follow all national, state and local codes applicable. - Installation of a vacuum release or vent system, which relieves entrapping suction, is recommended. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS 30-LITINSB006 Rev-B...
-
Page 4: Product Dimensions
Introduction This manual contains information for the proper installation and operation of the Hayward MaxFlo Variable Speed Pump. The instructions in this manual MUST be followed precisely. Failure to install according to defined instructions will void warranty. Product Dimensions *Note: All dimensions in millimetres... -
Page 5: Electrical Specifications
Note - If the pump is being installed using the standard Hayward Universal Union that is supplied with the pump then there is no need to apply any type of thread sealant. The union gasket supplied is suffice to seal. -
Page 6: User Interface Overview
Note: Scroll through a - g using DISP/FUNC button and adjust each parameter using the arrow buttons. ▲ ▼ Holding the arrow buttons down will enable fast scrolling of the values. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS MaxFlo Variable Speed Pump Page 6 30-LITINSB004 Rev-B... -
Page 7: Initial Start-Up
V3 displaying real being used is displayed remaining for that speed screen showing rpm. time rpm. in Watts (±10%). is displayed. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS MaxFlo Variable Speed Pump Page 7 30-LITINSB004 Rev-B... -
Page 8: Configuration Menu
The new speed is only saved by pressing simultaneously the ▲ arrow buttons and then the LED for that speed ▼ will illuminate solid. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS MaxFlo Variable Speed Pump Page 8 30-LITINSB004 Rev-B... -
Page 9: Start-Up And Operation
• Have a professional perform this test. • Ensure all Hayward pump and system components are removed from the system prior to performing the test. WARNING All suction and discharge valves MUST be OPEN, as well as the filter air relief valve (if available) on filter, when starting the circulating pump system. -
Page 10: Maintenance
• Keep the motor clean. Ensure the air vents and fan are free from obstruction to avoid damage. Do NOT use water to hose off the motor. • Occasionaly, shaft seals must be replaced due to wear or damage. Replace with genuine Hayward seal assembly kit. -
Page 11: Shaft Seal Change Instructions
• Disconnect the pump motor power cord from the power outlet before beginning the shaft seal replacement. • Only qualified personnel should attempt to replace the shaft seal. Contact your local authorized Hayward Dealer or service center if you have any questions. -
Page 12: Parts Diagram
Optional Riser Base SPX3200UG Union Gasket - Not shown SPX2300VSM Motor, suit SP2300VS SPX0327 “Jack’s formula 327 Multilube” Silicone lube for O-Rings - 1 ounce (28 gram) tube USE ONLY HAYWARD GENUINE REPLACEMENT PARTS MaxFlo Variable Speed Pump Page 12 30-LITINSB006 Rev-B... -
Page 13: Noisy Pump
4. Refer to an Authorised Service Agent or another qualified professional. Motor Cuts Out Your Hayward pump motor is equiped with Automatic Thermal Overload Protection. The motor will automaticly shut-off before heat damage buildup can occur due to abnormal operating conditions. The motor will auto-restart when a safe heat level is reached. -
Page 14: Service Mode
In this mode only the RPM of the motor can be changed between 600 rpm and 3000rpm and no speeds will be saved in this mode. To exit Service Mode simply cycle the power to the pump on and off. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS MaxFlo Variable Speed Pump 30-LITINSB004 Rev-B... - Page 15 3000 RPM Hayward MaxFlo VS™ Pump 2400 RPM 1500 RPM FLOW l/min Performance curves for Hayward MaxFlo VS SP2300VS pump. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS MaxFlo Variable Speed Pump Page 15 30-LITINSB006 Rev-B...
- Page 16 Hayward Pool Products (Australia) Pty Ltd. Melbourne-Sydney-Brisbane-Perth Email: sales@hayward-pool.com.au Website: www.hayward-pool.com.au P.O Box 4384, Dandenong South, VIC. 3164 ABN 66 083 413 414 Hayward and MaxFlo VS are registered trademarks of Hayward Industries, Inc. Sales Ph 1300POOLS1 Fx 1300POOLS2 © 2015 Hayward Industries, Inc.
