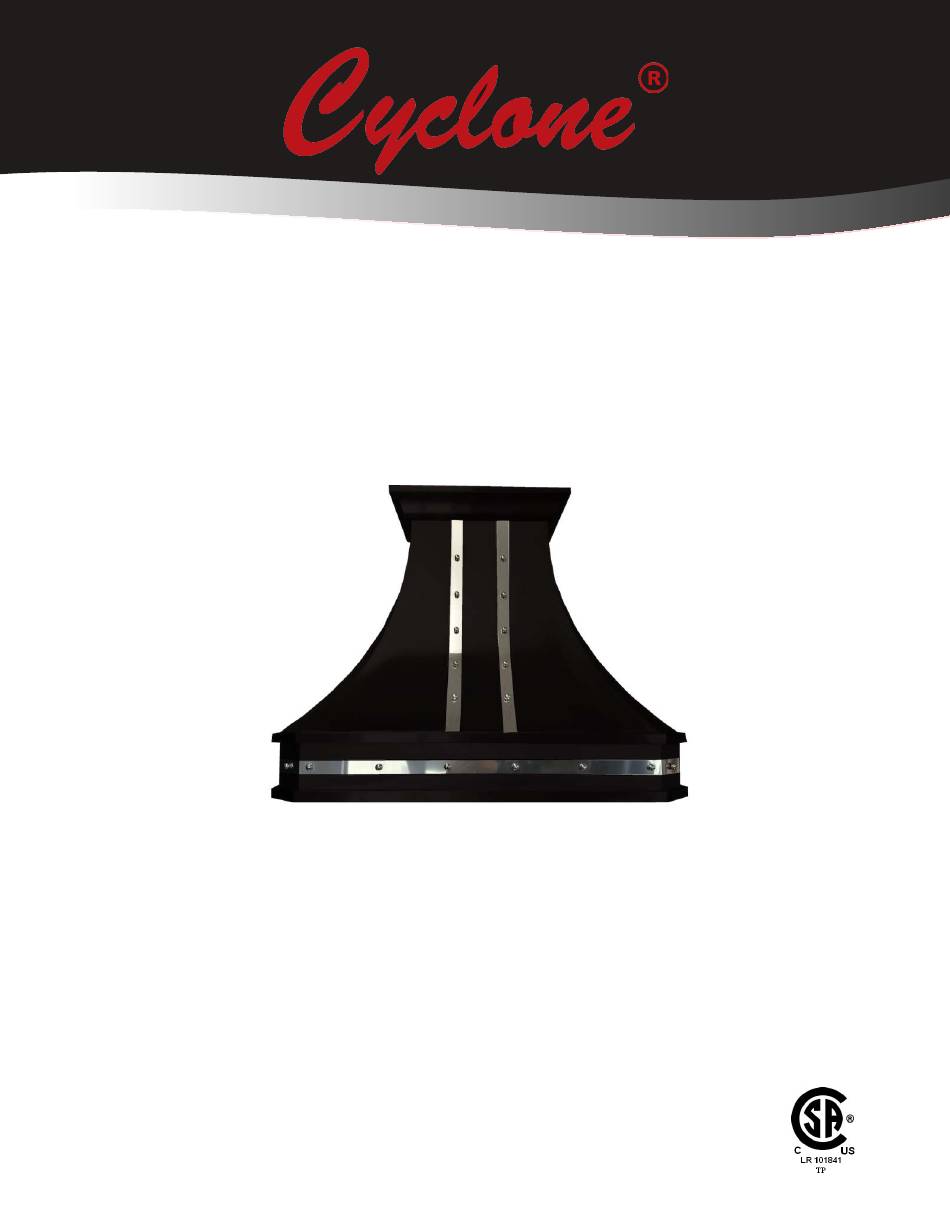

- Page 1 Self-Cleaning Range Hoods DCB Series Range Hoods Installation and Operation Instructions Please read all instructions before installing and operating. All wiring and installation must be in accordance with CEC, NEC and local electrical codes. READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Important Safety Instructions.........3 Damage Inspection............4 Ducting................4 Mounting Heights and Clearance........5 Wiring Installation............5 Tools and Materials Required..........6 Parts supplied..............6 Preparing for Installation..........7 Installation...............8 DCB Series Specifications..........9 Troubleshooting..............10 Maintenance..............11 Control Panel..............11 Cyclone Range Hoods Limited Warranty......12 Cyclone DCB Series Installation - English... -
Page 3: Important Safety Instructions
Do not connect this fan • Use proprietary LED puck lights ONLY. 12 Volt, with any solid-state speed control device. 1.4 Watt maximum per light, for DCB series. Always keep the duct clear to maintain proper airflow for venting. •... -
Page 4: Damage Inspection
Before making cutouts make sure there is proper clearance within the ceiling or wall for the exhaust vent. Additional parts not provided. Cyclone DCB Series Installation - English 4... -
Page 5: Mounting Heights And Clearance
Connect the black power wire to the black wire supplied with the hood. Connect the white neutral wire to the white wire supplied with the hood. Black: Power M a x . White: Neutral Green: Ground Cyclone DCB Series Installation - English... -
Page 6: Tools And Materials Required
6 × 14.7mm #2 Phillips Screws (DCB406 Models) 2 x 32mm #2 Phillips Screws 2 x 18.3mm #2 Phillips Screws 2 x 6.3mm Diameter Washers 10 x 14.7mm #2 Phillips Screws (DCB409 / DCB4012 Models) Cyclone DCB Series Installation - English 6... -
Page 7: Preparation For Installation
If there is no wooden stud present behind these markings, it is recommended that you cut a hole in the wall and install wooden braces (not included) or use the anchoring hardware provided to ensure the insert is properly secured to the wall. Cyclone DCB Series Installation - English... -
Page 8: Installation
HVAC professional. size is less than what is recommended for your product, the performance of your Cyclone Range Hood will be reduced and the Depending on the specific model, a 6”, 8" or 10" diameter warranty can be rendered null and void. -
Page 9: Dcb Series Specifications
LED Puck Light 120V 120V 120V AC INPUT 60Hz 60Hz 60Hz Min. Min. Min. Electric 28” Electric 28” Electric 28” MOUNTING Gas 30" Gas 30" Gas 30" HEIGHT Max. 36” Max. 36” Max. 36” Cyclone DCB Series Installation - English... -
Page 10: Troubleshooting
TROUBLESHOOTING For additional service inquiries, contact Cyclone servicing department at 1-888-293-5662 or Service@CycloneRangeHoods.com ISSUE CAUSE SOLUTION Unit doesn’t work after The power source is not turned ON. Ensure power is ON at the circuit breaker and installation. unit. The power line and the cable locking connector Check the power connection within the unit are not connected properly. -
Page 11: Maintenance
Line up the two metal tabs on the underside of the light with the corresponding slots on the body of the hood; vii. Apply firm upward pressure to secure the puck light in place; viii. Reconnect the white plastic male and female connectors; LIGHT HIGH Cyclone DCB Series Installation - English... -
Page 12: Cyclone Range Hoods Limited Warranty
CYCLONE RANGE HOODS INC. LIMITED WARRANTY - RANGE HOOD PRODUCTS (2022) Cyclone Range Hoods Inc. (hereunder called “The Company”) provides a warranty that its products are free from defects in workmanship and materials for a period of two (2) years from the date of purchase. This warranty includes in-home service (where applicable) for the first year and workshop service for the second year.
