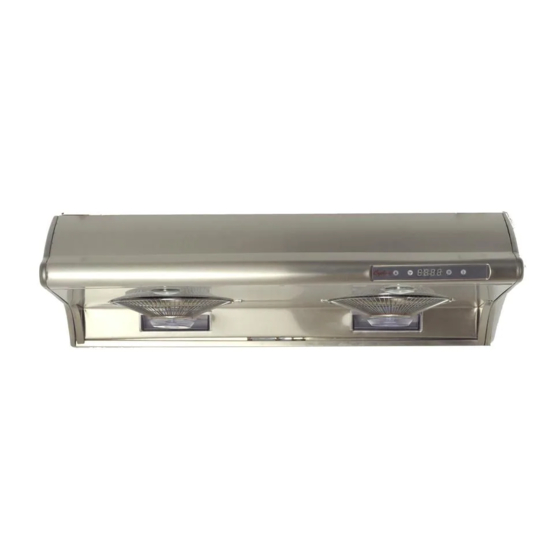

CyClone CY3000R Use And Care Manual

OPERATION INSTRUCTIONS

Fan Operation

Fan Speeds: There are six speed settings. The screen will light up once the touch sensitive control
power button has been pressed. The first button beside the screen to the left is the LOW speed setting
and on the opposite side is the HIGH speed setting button.
Lights: The last button on the right is the light control. There are two light settings, simply press once for
high intensity and twice for low intensity.
Clock: To set the clock on the machine, start by turning the machine off. Press down the power bottom
until the screen begins to flash. Once it begins to flash, set clock by using the HIGH and LOW speed buttons. The LOW speed of the screen controls
the hours and the HIGH speed controls the minutes
Timer: The timer on the machine can be set while the machine is running at the desired speed level. Press down the power button until the screen
begins to flash and then use the HIGH/LOW buttons to set your desired timer up to 99 minutes.
Energy Saving Tip: If you are cooking on one side of the stove, turn the same side on HIGH while running the other fan on LOW.

Grease Disposal

wARNING!
Do not remove grease cups immediately after cooking or if grease is still hot.
Your new fan features a unique, completely filter-less design. Oil and grease are separated from the
airflow via non-stick coated fan blades. The grease is then pushed through rubber tubing into convenient
easily-removable grease cups for hassle-free, environmentally-friendly cleaning. Simply remove the
cups when grease builds up and clean them in the top rack of your dishwasher.
Tip: Soak all parts in soapy water if there is heavy grease.

Changing Lightbulbs

wARNING!
Ensure that lights have fully cooled before changing bulbs.
Firmly press your fingers against the light bulb and twist in a clockwise direction until loosened.

MAINTENANCE

Cleaning

wARNING!
Ensure that all power leading to your range hood has been disconnected
before cleaning your fan.
Fan Blades: Fill a spray bottle with a mixture of dishwasher soap and water and spray into the
fan blades while the machine is running. The soapy water will run the same path through the
machine as the grease, effectively cleaning all of its internal components. The cleaning solution
will be dispensed in the grease traps for convenient, hassle-free disposal.
Exterior: The exterior of the machine can be maintained by wiping the surface area. Use a
stainless steel cleaner and a very gentle cloth for stainless steel machines. A gentle cleaning
agent, such as Windex, and a damp cloth can be used to wipe and buff a machine with colored
finishes.
Fan Guard: To clean fan guard, unscrew two screws from the side of the fan guard, then soak
and hand-wash with dish soap.
USE AND CARE GUIDE
MODELS
CY3000R
HIGH
Timer/24 Hour Clock
LOW
speed
speed
Power
Light
