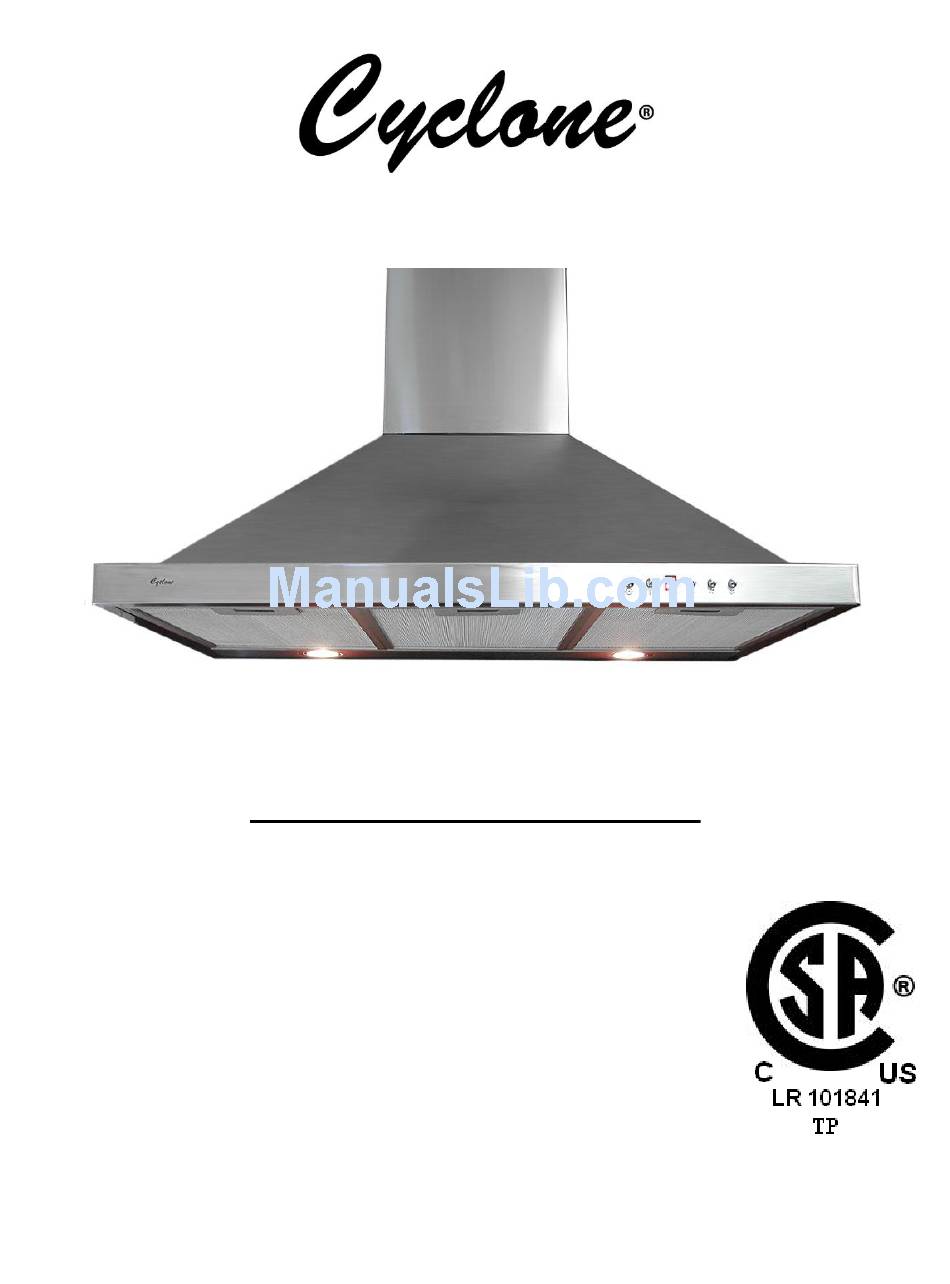

Self-Cleaning Range Hoods
Installation and Operating Instructions
Please read all instructions before installing and operating.
All wiring and installation must be in accordance with CEC, NEC and local
electrical codes.
Attention : All Cyclone range hoods require a 6''ducting. You must use no less
than 6 '' ducting for your warranty to be active. If you use any size ducting less
than mentioned above your warranty is automatically voided.
ONLY CYS1000R may use a 4'' ducting.
Advertisement
Table of Contents
Related Manuals for CyClone sc707
Summary of Contents for CyClone sc707
- Page 1 All wiring and installation must be in accordance with CEC, NEC and local electrical codes. Attention : All Cyclone range hoods require a 6’’ducting. You must use no less than 6 ‘‘ ducting for your warranty to be active. If you use any size ducting less than mentioned above your warranty is automatically voided.
- Page 2 Mounting the Island Range Hood Pg. 11) Diagram Pg. 14) Island Surface Maintenance/Filters/ Replacing Light Bulbs Pg. 15) Cyclone Warranty All rights reserved to North America Range Hoods Inc. 110 Silver Star Blvd., Unit 105, Scarborough, Ontario, Canada, M1V5A2 TEL: 416.293.0933 FAX: 416.293.4793 www.cyclonerangehoods.com...
- Page 3 READ AND SAVE THESE INSTRUCTIONS Caution: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZORDOUS OR EXPLOSIVE MATERIALS OR VAPORS. This appliance must be installed by a qualified technician. The manufacturer declines all responsibility in case of failure to adhere to safety standards. Ensure that exhausted air not directed into flue that is uses for venting fumes from other appliances.
-
Page 4: Before Installing The Hood
BEFORE INSTALLING THE HOOD For the most efficient airflow exhaust use a straight run or as few elbows as possible. Vent unit to the outside only. Two people are required for installation Ducting Always use rigid type metal ducts. Flexible ducts can restrict airflow by more than 50%. 6”... - Page 5 Hood installation height above cook top is the user’s preference. The lower the hood is above the cook top the more efficient it will be in drawing out cooking odours, grease and smoke. THE HOOD SHALL BE INSTALLED AT 28” MINIMUM TO 36” ABOVE THE COUNTERTOP. Check your ceiling height and the hood height maximum before you select your hood.
-
Page 6: Installation
Installation: Determine the necessary height for the conduit and cut a 1-1/4” hole. Run wires through the hole according to local codes and ordinances. Use caulking to seal all openings. Do not turn the power on until completion of installation. Find studs behind drywall by tapping wall or using a stud finder. -
Page 7: Electrical Grounding Instructions
Electrical Grounding Instructions This appliance is fitted with an electrical junction box with 3 wires, one of which (green/yellow) serves to ground the appliance. To protect you against electric shock the green and yellow wire must be connected to the grounding wire in your home electrical system and it must not be cut or removed under any circumstances. -
Page 8: Specifications
550 CFM Air Flow Volume 120V, 60Hz Electrical Connections 200 Watts Power Consumption Fan Speed / 1550 RPM / One motor # Of Motor(s) Stainless Steel Colours Venting SC-500. SC-501, SC-502 SI-521, SI-522, SI-520, SI-523, SI- SC-503, SC-510 530, SI-531 Dimensions SC-500 SC-501/... -
Page 9: Surface Maintenance
SURFACE MAINTENANCE Always switch off power and unplug before cleaning and maintenance. Clean with warm soapy water and clean cloth. Do not use corrosive or abrasive detergent or steel wool pads that can scratch the surface of the machine. Use non-abrasive stainless steel polish to buff out the luster and grain. Scrub lightly. The stainless steel filters trap residue and grease from cooking. - Page 10 Island Hoods installation instructions: Warning: For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow National electrical codes or prevailing local codes and ordinances. Electrical Supply This appliance requires a 120V 60 Hz electrical supply, and must be connected to an individual properly grounded branch circuit, protected by a 15 or 20-ampere circuit breaker or time delay fuse.
- Page 11 All rights reserved to North America Range Hoods Inc. 110 Silver Star Blvd., Unit 105, Scarborough, Ontario, Canada, M1V5A2 TEL: 416.293.0933 FAX: 416.293.4793 www.cyclonerangehoods.com...
- Page 12 Installing island range hood: 1. Remove kitchen ceiling tiles etc. and locate/create ducting hole. 2. Locate wooden beams adjacent to ducting hole. 3. Insert and attach two wooden pieces forming a square frame around the ducting hole with the already existing beams. 4.
- Page 13 All rights reserved to North America Range Hoods Inc. 110 Silver Star Blvd., Unit 105, Scarborough, Ontario, Canada, M1V5A2 TEL: 416.293.0933 FAX: 416.293.4793 www.cyclonerangehoods.com...
-
Page 14: Replacing Light Bulbs
SURFACE MAINTENANCE FOR ISLAND RANGE HOOD Always switch off power and unplug before cleaning and maintenance. Clean with warm soapy water and clean cloth. Do not use corrosive or abrasive detergent or steel wool pads that can scratch the surface of the machine. Use non-abrasive stainless steel polish to buff out the luster and grain. -
Page 15: Cyclone Range Hood Limited Warranty
Warranty does not cover the costs of removal, installation and transportation of defective product. The warranty on your Cyclone range hood begins on the date of original purchase. In order to register your purchase, please fill out both the customer and manufacturer copies of the Limited Warranty Registration card below.
