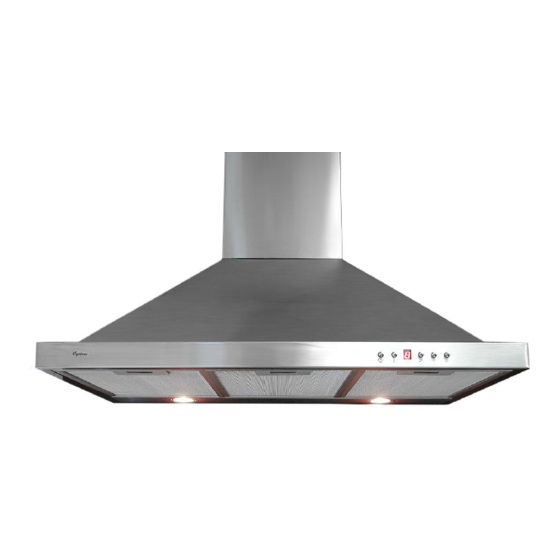

Self-Cleaning Range Hoods
Wall Mount and Island Range Hoods
Models:
SC(B)500, SC(B)501, SC(B)502, SC(B)503, SC510,
SC(B)513, SC(B)514, SI(B)323, SI(B)520, SI(B)521,
SI(B)522, SI(B)523, SI530, SI531, SI532
SCB711, SC322, SCB722, SC712, SC(B)715,
SCB717, SCB718, SC720, SC(B)722

Installation and Operation Instructions

Please read all instructions before installing and operating.
All wiring and installation must be in accordance with CEC, NEC and local electrical codes.

READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC322 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyClone SC322

Summary of Contents for CyClone SC322

  • Page 1: Installation And Operation Instructions

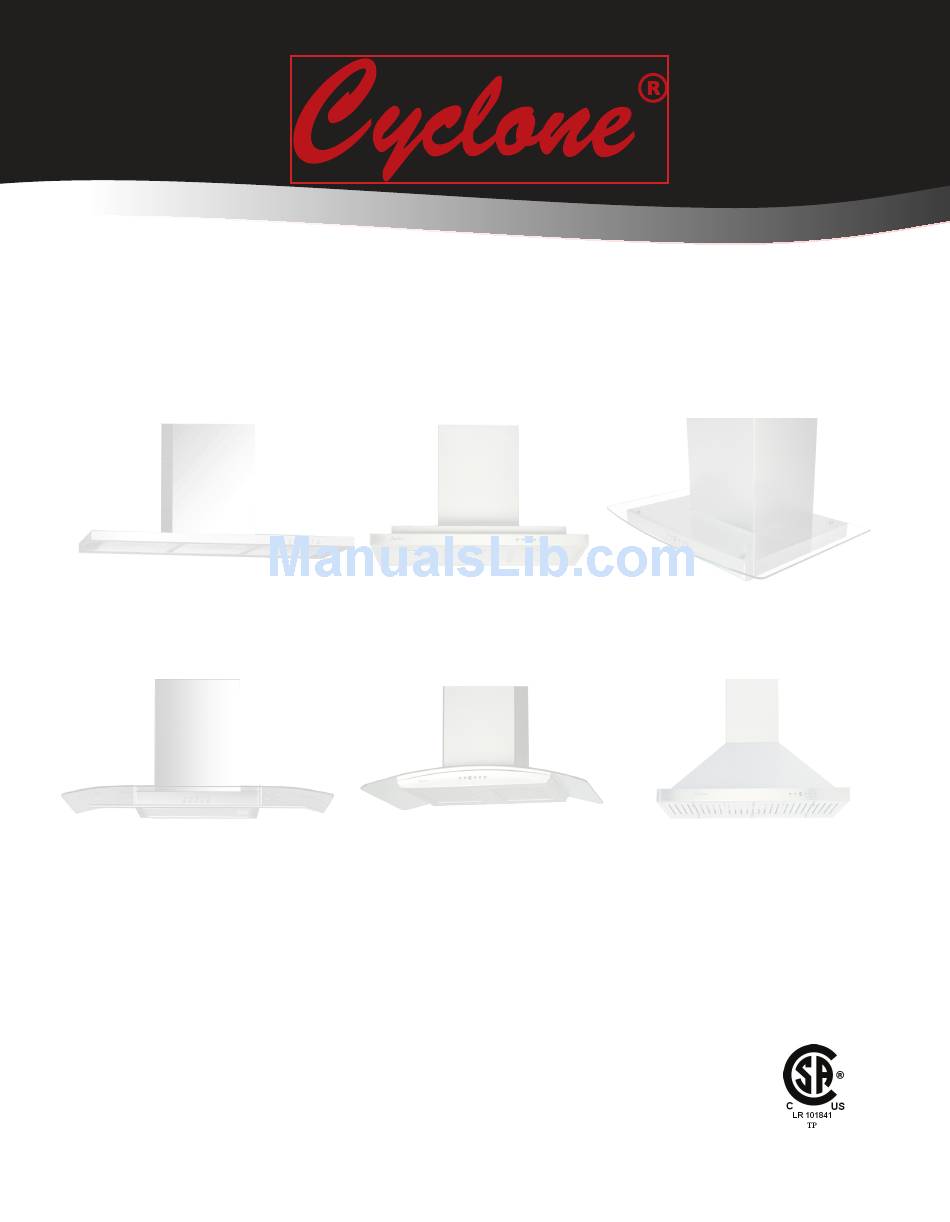

    Models: SC(B)500, SC(B)501, SC(B)502, SC(B)503, SC510, SC(B)513, SC(B)514, SI(B)323, SI(B)520, SI(B)521, SI(B)522, SI(B)523, SI530, SI531, SI532 SCB711, SC322, SCB722, SC712, SC(B)715, SCB717, SCB718, SC720, SC(B)722 Installation and Operation Instructions Please read all instructions before installing and operating. All wiring and installation must be in accordance with CEC, NEC and local electrical codes.
  • Page 2 Cyclone Canopy Installation - English...

  • Page 3: Important Safety Instructions

    The hood motor has a thermal overload that will automatically shut off the motor if it becomes overheated. The motor will restart. If the motor continually shuts off and restarts, contact the Cyclone service department. Ensure that the hood is mounted at the recommended mounting height.

  • Page 4: Table Of Contents

    Wall Mount Installation - Parts Supplied Wall Mount Hood Installation Island Installation - Tools and Materials Required Island Installation - Parts Supplied Island Hood Installation Canopy Hoods Specifications Troubleshooting Control Panel Maintenance Cyclone Range Hoods Limited Warranty Cyclone Canopy Installation - English...

  • Page 5: Damage Inspection

    Before making cutouts make sure there is proper clearance within Side wall cap with the ceiling or wall for the exhaust vent. gravity damper Additional parts not provided. Cyclone Canopy Installation - English...

  • Page 6: Mounting Heights And Clearance

    Connect the black power wire to the black wire supplied with the hood. Connect the white neutral wire to the white wire supplied with the hood. Black: Power M in : 3 ” White: Neutral Green: Ground Cyclone Canopy Installation - English...

  • Page 7: Wall Mount Installation - Tools And Materials Required

    4 × Drywall Anchors 2 × Washers 6 × Adapter Screws (Long and Medium, 2 each) (Large and Small, 2 each) 2 × Top Chimney Screws SC500, SC711, SC715 ONLY: 2 × Bottom Chimney Screws Cyclone Canopy Installation - English...

  • Page 8: Wall Mount Hood Installation

    13. Reinstall filters to the hood. Remove protective plastic film Figure 3. covering the duct covers and hood. Ceiling Screw Locations Mounting Bracket Flush with Ceiling Cyclone Canopy Installation - English...

  • Page 9: Island Installation - Tools And Materials Required

    2 or 4 × G4 Type JC Lights (12V, 20W) HARDWARE PACKAGE 4 × Mounting Screws 4 × Washers 6 × Adapter Screws 20 × Mounting Bracket Screws SI520 ONLY 2 × Bottom Chimney Screws Cyclone Canopy Installation - English...

  • Page 10: Island Hood Installation

    The duct cover needs a Upper Mounting Bracket clean cut and must to be cut from bottom end sides for both inside and outside pieces. For optimal clearance, the minimum mounting should be 30” above the cooking surface. Cyclone Canopy Installation - English...
  • Page 11 Note: For some models, the “L” shape support frame may be used (Figure 8). The installation procedures are same except that the hood is mounted on one side. If need be, use an adjustable string wire from other side to keep the hood level. Cyclone Canopy Installation - English...

  • Page 12: Canopy Hoods Specifications

    6” ROUND TOP 6” ROUND TOP 6” ROUND TOP DUCT 120V 120V 120V 120V 120V AC INPUT 60Hz 60Hz 60Hz 60Hz 60Hz POWER 180W 200W 200W 200W 200W CONSUMPTION MOUNTING HEIGHT 28”-36” 28”-36” 28”-36” 28”-36” 28”-36” Cyclone Canopy Installation - English...

  • Page 13: Specifications

    Max 45 ¼” 10 ¼” 1 ¾” 17 ¾” 30”/36” 9 ¼” 8” Min. 27 ¾” Max. 45 ¼” 29 ½” or 35 ½” 17 ¾” FRONT SIDE 6 ¼” Φ 6” 7 ⅛” 3 1/4” BACK Cyclone Canopy Installation - English...
  • Page 14 27 ¾” Max 45 ¼” 11” 1 ¾” 17 ¾” 23 ½” 9 ¼” 8” Min. 27 ¾” Max. 45 ¼” 23 ½” 17 ¾” FRONT SIDE 6 ¼” Φ 6” 7 ⅛” 3 1/4” BACK Cyclone Canopy Installation - English...
  • Page 15 10 ½” Min. 23 ½” Min. 23 ½” Max. 44 ½” Max. 44 ½” 23 ¼” 17” 19 ¾” 29 ½” or 35 ½” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 16 2” 19 ¾” 30”/36” 10 ½” 11 ¾” Min. 23 ½” Max. 44 ½” 23 ¼” 17” 29 ½” or 35 ½” 19 ¾” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 17 2” 19 ¾” 30”/36” 11 ¾” 10 ½” Min. 23 ½” Max. 44 ½” 23 ¼” 17” 29 ½” or 35 ½” 19 ¾” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 18 1 ¾” 19 ¾” 30”/36” 10 ½” 11 ¾” Min. 23 ½” Max. 44 ½” 19 ¾” 29 ½” or 35 ½” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” 6 ¼” BACK Cyclone Canopy Installation - English...
  • Page 19 19 ½” 30”/36” 11 ¾” 10 ½” Min. 24 ½” Max. 45 ½” 24 ¼” 16 ½” 29 ½” or 35 ½” 19 ½” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 20 Max 44 ½” 2 ¾” 19 ½” 30”/36” 10 ½” 11 ¾” Min. 23 ½” Max. 44 ½” 19 ½” 29 ½” or 35 ½” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 21 23 ½” Max 44 ½” 2 ¾” 19 ½” 24” 10 ½” 11 ¾” Min. 23 ½” Max. 44 ½” 19 ½” 23 ½” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 22 23 ½” 26” Max: 49” 2 ¾” 23 ½” 30”/36” 10 ¾” 12” Min. 26” Max. 49” 29 ½” or 35 ½” 23 ½” FRONT SIDE Φ 6” 6 ¾” 3 ¾” FRONT WITHOUT FLUE Cyclone Canopy Installation - English...
  • Page 23 10 ¾” 23 ½” 30” Max: 53” 6 ½” 1 ¾” 23 ½” 36” 12” 10 ¾” Min. 30” Max. 53” 35 ½” 23 ½” FRONT SIDE Φ 6” 8 ¾” 3 ¾” FRONT WITHOUT FLUE Cyclone Canopy Installation - English...
  • Page 24 2 ½” 23 ½” 18” 36” 12” 10 ¾” Min. 26” Min. 26” Max. 49” Max. 49” 23 ¼” 18” 23 ½” 35 ½” FRONT SIDE Φ 6” 8 ¾” 3 ¾” FRONT WITHOUT FLUE Cyclone Canopy Installation - English...
  • Page 25 23 ½” 25” Max: 48” 1 ¾” 23 ½” 18” 36” 10 ¾” 12” Min. 25” Max. 48” 23 ¼” 18” 35 ½” 23 ½” FRONT SIDE Φ 6” 8 ¾” 3 ¾” FRONT WITHOUT FLUE Cyclone Canopy Installation - English...
  • Page 26 23 ½” 26” Max: 49” 2 ¾” 23 ½” 30”/36” 10 ¾” 12” Min. 26” Max. 49” 29 ½” or 35 ½” 23 ½” FRONT SIDE Φ 6” 6 ¾” 3 ¾” FRONT WITHOUT FLUE Cyclone Canopy Installation - English...
  • Page 27 10 ¾” 23 ½” 25” Max: 48” 1 ¾” 23 ½” 36” 11 ¾” 10 ½” Min. 25” Max. 48” 21” 23 ½” 35 ½” FRONT SIDE Φ 6” 8 ¾” 3 ¾” FRONT WITHOUT FLUE Cyclone Canopy Installation - English...
  • Page 28 Max 49” 1 ½” 1 ½” 23 ½” 36” 10 ½” 11 ¾” Min. 26” Max. 49” 18” 24 ¼” 35 ½” 23 ½” FRONT SIDE Φ 6” 8 ¾” 3 ¾” FRONT WITHOUT FLUE Cyclone Canopy Installation - English...
  • Page 29 SPECIFICATIONS PRO Collection Wall Mount - Model: SC322 11 ¾” 10 ½” 21 ½” 23 ¼” Max: 44 ½” 1.75” 19 ¾” 24”/30” 10 ½” 11 ¾” Min. 23 ½” Max. 44 ½” 19 ¾” 23 ½” or 29 ½”...
  • Page 30 Max: 47 ½” 12” 2 ½” 17 ¾” 30”/36” 9 ¼” 8” Min. 30” Max. 47 ½” 29 ½” or 35 ½” 17 ¾” FRONT SIDE 6 ¼” Φ 6” 7 ⅛” 3 ¼” BACK Cyclone Canopy Installation - English...
  • Page 31 Max: 44 ½” 2” 19 ¾” 36” 12” 10 ½” Min. 23 ½” Max. 44 ½” 16 ½” 15 ¼” 35 ½” 19 ¾” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 32 26 ½” Max: 40” 12 ½” 1 ½” 21” 30”/36” 10 ½” 8” Min. 26 ½” Max. 40” 29 ½” or 35 ½” 21” SIDE FRONT 7 ¼” Φ 6” 9 ½” 3 ¼” BACK Cyclone Canopy Installation - English...
  • Page 33 Distance from front panel to wall: 16” 10 1/2” 11 3/4” Min. 28” Max. 46 1/2” 25 3/4” or 30 3/4” 16” 29 1/2” or 35 1/2” FRONT SIDE 7 3/4” 9 9/16” Φ 6” 5 1/4” BACK Cyclone Canopy Installation - English...
  • Page 34 Max: 46 ½” 16” 36” Distance from front panel to wall: 16” 10 ½” 11 ¾” Min. 28” Max. 46 ½” 16” 35 ½” SIDE FRONT 7 ¾” 9 ½” Φ 6” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 35 Max: 44 ½” 1 3/4” 19 ¾” 30”/36” 10 ½” 11 ¾” Min. 23 ½” Max. 44 ½” 19 ¾” 29 ½” or 35 ½” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 36 Max: 44 ½” 1.75” 19 ¾” 30”/36” 10 ½” 11 ¾” Min. 23 ½” Max. 44 ½” 19 ¾” 29 ½” or 35 ½” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...
  • Page 37 21 ½” 23 ¼” Max: 44 ½” 1.75” 19 ¾” 24” 10 ½” 11 ¾” Min. 23 ½” Max. 44 ½” 19 ¾” 23 ½” FRONT SIDE 7 ¾” Φ 6” 9 ½” 5 ¼” BACK Cyclone Canopy Installation - English...

  • Page 38: Troubleshooting

    TROUBLESHOOTING For additional service inquiries, contact Cyclone servicing department at 1-888-293-5662 or Service@CycloneRangeHoods.com ISSUE CAUSE SOLUTION Unit doesn’t work after The power source is not turned ON. Ensure power is ON for the circuit breaker and installation. unit. The power line and the cable locking connector Check the power connection with the unit is are not connected properly.

  • Page 39: Control Panel

    30 to 60 days depending on cooking habits. the slots and insert back into place. Filters may be placed in the dishwasher on low heat or soaked in warm, soapy water. Spray degreasing detergent and leave to soak if heavily soiled. Cyclone Canopy Installation - English...

  • Page 40: Cyclone Range Hoods Limited Warranty

    CYCLONE RANGE HOODS LIMITED WARRANTY Cyclone Range Hoods Inc. (hereunder called “The Company”) provides a warranty that its products are free from defects in workmanship and materials for a period of two (2) years from the date of purchase. This warranty includes in-home service (where applicable) for the first year and workshop service for the second year.
