Self-Cleaning Range Hoods
Insert Range Hoods

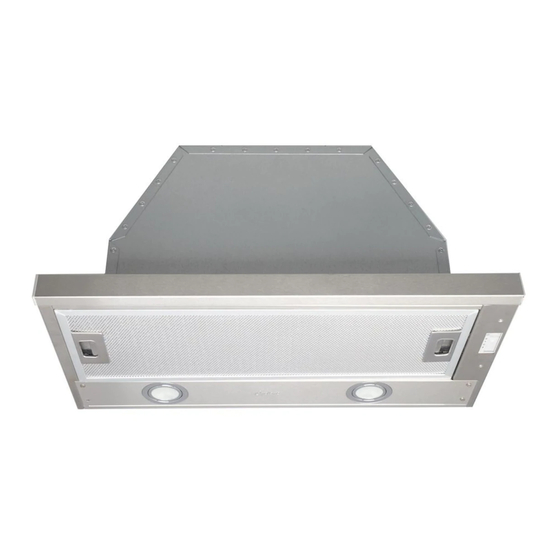

BX600
SS130
BX215
BX2000

Installation and Operation Instructions

Please read all instructions before installing and operating.
All wiring and installation must be in accordance with CEC, NEC and local electrical codes.

READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BX600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyClone BX600

Summary of Contents for CyClone BX600

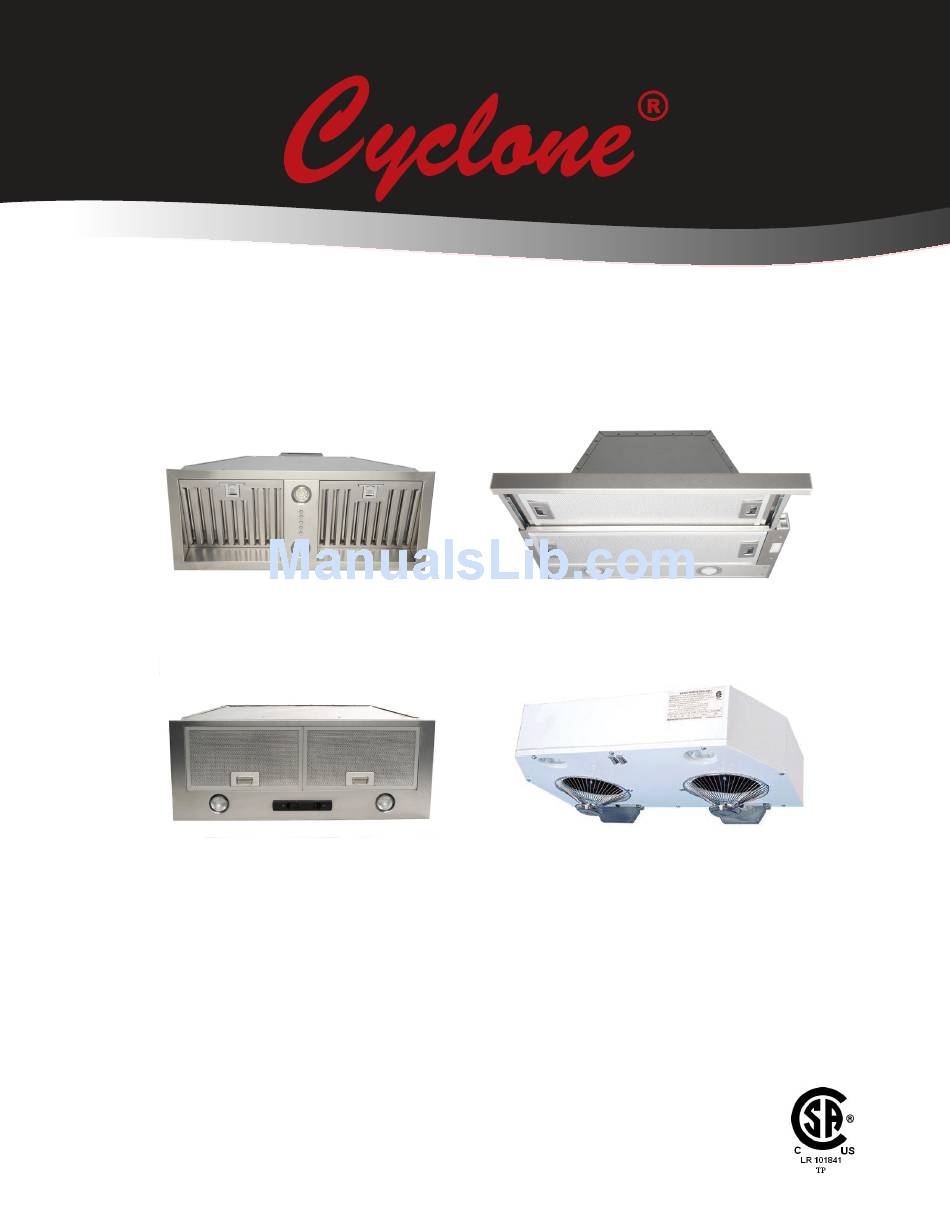

  • Page 1: Installation And Operation Instructions

    Self-Cleaning Range Hoods Insert Range Hoods BX600 SS130 BX215 BX2000 Installation and Operation Instructions Please read all instructions before installing and operating. All wiring and installation must be in accordance with CEC, NEC and local electrical codes. READ AND SAVE THESE INSTRUCTIONS...
  • Page 2 Cyclone Insert Installation - English...

  • Page 3: Important Safety Instructions

    If the motor continually shuts and restarts, contact the Cyclone service department. Ensure that the hood is mounted at the recommended mounting height. •...

  • Page 4: Table Of Contents

    SS130 Installation - Parts supplied BX215 Insert Hood Installation BX215 Installation - Tools and Materials Required BX215 Installation - Parts supplied BX600 Insert Hood Installation BX600 Installation - Tools and Materials Required BX600 Installation - Parts supplied INSERT Hoods Specifications Troubleshooting Maintenance...

  • Page 5: Damage Inspection

    Mural avec the use of any size ducting is less than 6”, the warranty is Clapet Anti- automatically voided. Refoulement • The venting duct must go horizontally or vertically up to the outside wall or the roof. If it is turned downward anywhere in the venting system, the warranty is automatically voided. Fasten all connections with sheet metal screws and tape all joints with certified silver tape or duct. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut then a supporting frame must be constructed. Before making cutouts make sure there is proper clearance within the ceiling or wall for the exhaust vent. Capuchon Mural avec Clapet Anti-Refoulement Additional parts not provided. Cyclone Insert Installation - English...

  • Page 6: Mounting Heights And Clearance

    Install the Electrical Power Supply This appliance must be grounded. Install a junction box inside the upper corner of the cabinet. For This appliance is equipped with a cord having a grounding wire or the model SS13024, it should be installed at a minimum of 8” away with a plug having grounding wire. The grounding wire must be from the center of the cabinet and 12” above the bottom of the grounded properly in the junction box or the plug must be plugged cabinet. For the models SS13030, BX21528, BX600, it should be into an outlet that is properly installed and grounded. installed at a minimum of 11” away from the center of the cabinet, and 12” above the bottom of the cabinet. For the model BX21534, 1. Connect the power line ground wire to the green ground wire it should be installed at a minumum of 13” away from the center of supplied with the hood. the cabinet, and 12” above te bottom of the cabnet.

  • Page 7: Ducting Connection

    Ducting Connection Preparation for Vent and Exhaust Duct Connection When there is no access to the top of the hood, carefully pull down 1. To connect a rectangular vent to a round exhaust duct (or vice the metal duct through the custom hood base hole. Slide this duct versa), use a connecting duct and adapter. over the adapter/damper. Make sure the adapter/damper assembly 2. The round vent of a Cyclone Range Hood is 6” diameter. If enters the ducting. Seal the connection with aluminum tape. the round exhaust duct is not 6” diameter, a connecting duct is necessary to accommodate the different size. If the exhaust duct is less than 6” diameter, the efficiency of your Cyclone Range Hood will be reduced and the warranty may be voided. 3. An exhaust duct needs to be cut if there is not an existing duct in your home. Please consult/hire a professional to complete the work properly. For top venting, a rectangular or a 6” round...
  • Page 8 2 × Round Oil Collectors 2 × Halogen Lights (120V, 20W) BX2010 ONLY: 1 × Halogen Lights BX2010 ONLY: 1 × Rectangular Damper HARDWARE PACKAGE BX2010 ONLY: 4 × Mounting Screws 6 × Damper Screws Cyclone Insert Installation - English...

  • Page 9: Bx2000/Bx2010 Insert Hood Installation

    1. Unpack range hood and check contents. Note: Be cautious of 3. For the BX2000, no damper is required. For the BX2010, place sharp edges within the unit. Remove hood cover insert screws the rectangular damper onto the top rectangular cutout and and lift off cover to expose the inside (Figure 1). fasten with damper screws (Figure 4). Figure 1. Figure 4. Damper 2. Remove the top electrical knockout (Figure 2). Insert a screwdriver into the knockout slot and bend the knockout back and forth (Figure 3a & 3b). Pliers may be used to remove the loosened knockout. Figure 2. Electrical Knockout Figure 3a, 3b. Cyclone Insert Installation - English...
  • Page 10 Range Hood 5. Check to ensure the top vent is fitted and connected to the duct properly. Use aluminum foil tape to cover all seams. 6. Tighten the hood mounting screws all the way into the cabinet so the hood is firmly attached. 7. Make the Electrical Connection (Figure 7). Secure the electrical wire to the hood with the connector’s “STAR” locknut. ii. Strip about ½” of insulation from the ends of the electrical power wires. iii. Connect the power line ground wire to the green ground wire supplied with the hood (Figure 8). iv. Connect the black power wire to the black wire supplied with the hood. v. Connect the white neutral wire to the white wire supplied with the hood. Cyclone Insert Installation - English...
  • Page 11 SS130 INSTALLATION - PARTS SUPPLIED PRE-INSTALLED 1 × Rectangular Oil Collector 1 × Round Adapter 1 × Hood 2 × G4 Type Lights (12V, 20W) 1 × Plastic Adapter Seal HARDWARE PACKAGE 6 × Adapter Screws Cyclone Insert Installation - English...

  • Page 12: Ss130 Insert Hood Installation

    5. Pull the slide outwards to expose the inside of the range hood. Locate the adjustable screw hole underneath both sides of the hood. 6. Once located, use a Phillips screwdriver to tighten the adjustable screw until the unit is tightly fastened to the base of the cabinetry (Figure 4). 7. Make sure that the adapter is connected to ductwork. 8. Place mesh filters back into place. 9. Connect the power plug to the junction box. Figure 4. Fasten Screws Cyclone Insert Installation - English...

  • Page 13: Ss130 Installation - Installation Cutout Templates

    SS130 INSTALLATION - INSTALLATION CUTOUT TEMPLATES SS13024 ¾” 19 ¾” 18 ¼” SS13030 ¾” 26” 24 ½” Cyclone Insert Installation - English...
  • Page 14 1 × Round Adapter INCLUDED IN UNIT 1 × Rectangular Oil Collector 1 × Hood 2 × Halogen Lights (120V, 20W) 1 × Plastic Adapter Seal HARDWARE PACKAGE 4 × Mounting Screws 6 × Adapter Screws Cyclone Insert Installation - English...

  • Page 15: Bx215 Insert Hood Installation

    Locate the cutout at the center of the bottom of the cabinet. Figure 1. Reattach and screw top panel onto range hood. Make sure that the adapter is connected to ductwork. Place mesh back into place. Connect the power plug to the junction box. Cyclone Insert Installation - English...
  • Page 16 BX215 INSTALLATION - INSTALLATION CUTOUT TEMPLATES BX21528 26 ¾” BX21534 31 ¼” Cyclone Insert Installation - English...
  • Page 17 BX600 INSTALLATION - PARTS SUPPLIED 1 × Rectangular Oil Collector PRE-INSTALLED 1 × Hood PRE-INSTALLED 1 × Round Adapter 2 × LED Lights HARDWARE PACKAGE 8 × Mounting Screws Cyclone Insert Installation - English...

  • Page 18: Bx600 Insert Hood Installation

    BX600 INSERT HOOD INSTALLATION Install the BX600 Range Hood This appliance requires 120V 60Hz electrical supply and connection to an individual properly grounded branch circuit 1. Remove outer baffle filters of range hood (Figure 1). protected by a circuit breaker or time delay fuse. Figure 1. CAUTION • At least two installers are required due to the weight and size of the hood.
  • Page 19 BX600 INSTALLATION - INSTALLATION CUTOUT TEMPLATES BX600 27 ¼” Cyclone Insert Installation - English...

  • Page 20: Insert Hoods Specifications

    STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL FINISH STAINLESS STEEL ROCKER SWITCH SLIDE CONTROL PUSH CONTROL SLIDE CONTROL CONTROLS SPEED LEVELS FILTERS FILTERLESS MESH BAFFLE MESH 6” ROUND TOP WITH ADAPTOR WITH ADAPTOR WITH ADAPTOR BX2010 - 3½” × 10” DUCT RECTANGULAR 6” ROUND TOP 6” ROUND TOP 6” ROUND TOP TOP OR REAR 1550RPM 1550RPM 1664RPM 1254RPM MAX. FAN SPEED Cyclone Insert Installation - English...

  • Page 21: Specifications

    Classic Collection Insert - Model: BX2000 1 ½” 4 ¾” 1” Φ 6” 20 ¾” 26 ¼” 16 ½” Φ 6” 10 ¼” 7 ½” 11 ⅛ ” 1 ½” 6 ½” 3 ½” 1” 27 ¾” BOTTOM Cyclone Insert Installation - English...
  • Page 22 SPECIFICATIONS Classic Collection Insert - Model: BX2010 4 ¾” 1 ½” 1” 3 ¼” 26 ¼” 13” 9” 9 ¾” 1 ½” 9” 3 ⅛” 1” 1/4” 27 ½” BOTTOM Cyclone Insert Installation - English...
  • Page 23 Classic Collection Insert - Model: BX215 3 ¼” 2 ¾” 13 ¼” 11 ¼” or 14” 10 ½” 26 ½” or 31” 28 ¼” or 34” 28 ¼” or 34” ¼” BOTTOM FRONT 17 ½” or 22 ¼” Φ 6” Cyclone Insert Installation - English...
  • Page 24 SPECIFICATIONS Classic Collection Insert - Model: SS13024 10” 2 ¾” 2 ¾” 11 ¼” 7” 12 ¾” 10” 18” 11 ⅛” 23 ⅞” 23 ⅞” FRONT BOTTOM 18” Φ 6” 11 ⅞” 10 ⅛” Cyclone Insert Installation - English...
  • Page 25 SPECIFICATIONS Classic Collection Insert - Model: BX600 3” 15 ¼” 12 ¼” 11 ⅝” 27” 28 ⅜” 28 ⅜” BOTTOM FRONT 14” Φ 6” Cyclone Insert Installation - English...

  • Page 26: Troubleshooting

    2. The light bulb is loose. 2. Tighten the light bulb. The hood is not venting 1. The hood might be hanging too high from the 1. Adjust the distance between the cook top and out properly. cook top. the bottom of the hood within 28” - 36” above the range. 2. Blockage in the duct opening or ductwork. 2. Remove all the blocking from the duct work or duct opening. 3. Using the wrong size of ducting. 3. Use at least 6” duct work. Cyclone Insert Installation - English...

  • Page 27: Maintenance

    Use a slot-head screwdriver to dislodge the bulb cover. Remove the bulb from the socket. Replace with Type G4, 12V, 20W Maximum, halogen bulb. Replace the light bulb cover by inserting the three prongs into the slots and insert back into place. Cyclone Insert Installation - English...

  • Page 28: Control Panel

    HIGH, LOW and OFF. light switch has two positions, ON and OFF. HIGH HIGH speed speed Light Controls Cyclone Insert Installation - English...

  • Page 29: Cyclone Range Hoods Limited Warranty

    CYCLONE RANGE HOODS LIMITED WARRANTY North American Range Hoods Inc. (hereunder called “The Company”) provides a warranty that its products are free from defects in workmanship and materials for a period of two (2) years from the date of purchase. This warranty includes in-home service (where applicable) for the first year and workshop service for the second year. During that time period, The Company will, at the Company’s option, repair or replace without charge any parts or complete unit found to be defective. Further, the warranty for the motor extends for an additional eight (8) years, with labor costs extra. This warranty is not transferrable from the original purchaser. The company reserves the right to use functionally equivalent reconditioned parts or products as warranty replacement or as part of warranty service. THE COMPANY WILL NOT BE HELD RESPONSIBLE FOR ANY CLAIMS OVER THE ORIGINAL PURCHASE PRICE OF THE PRODUCTS NOR BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
