Specification; How To Use - HOMCOM 821-012 Assembly Instruction

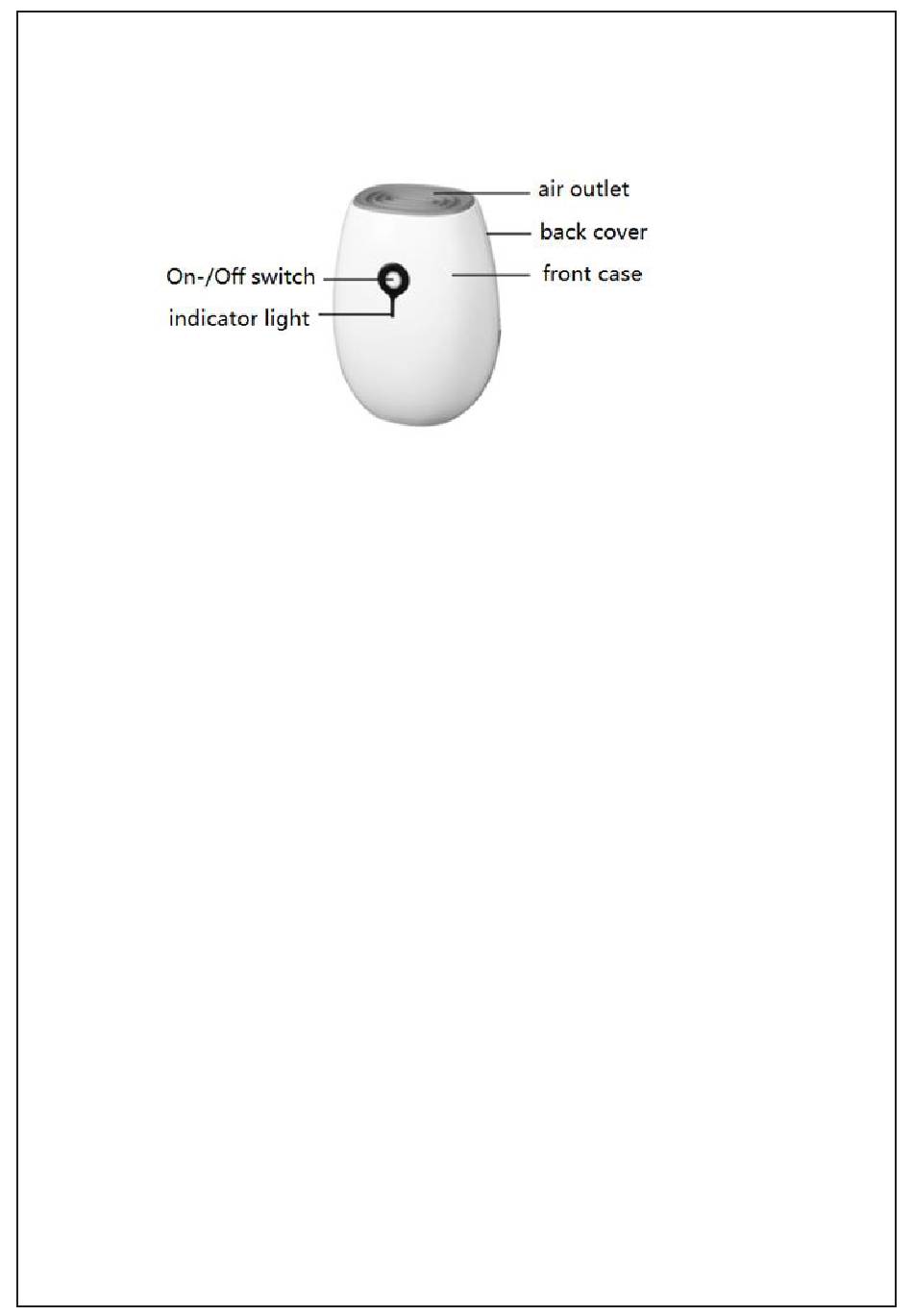

Diagram

Specification

Adaptor output voltage: 9V DC/2.5 Amp
Power: 22W
Dehumidifying capacity: 220ML/DAY(30℃ RH 80%)
2
Maximum area for dehumidifying: 20m
Noise: 38dB
Usage temperature: 15℃-35℃

How to Use

1. Plug the DC male port into the female port on the dehumidifier. Plug the AC adapter into
the socket.
2. Press the ON/OFF button. When it is on, the indicator light is blue and the fan will keep
running.
3. If the water level is reach to the maximum level, the float will hit the switch and the
indicator will turn into red. In the meanwhile, the dehumidifier will not keep dehumidifying.
4. Please cut off the power before you take out the water tank. Open the black drain cover
and pull out the water.
5. Use a soft and clean cloth to wipe the water tank and the dehumidifier.
6. Put the water tank back to the dehumidifier.
7. Put the dehumidifier in a well ventilated place for storage after use.
