2.9 Patching
The NYX right section is dedicated to patching. Learning to patch needs lots of experimentation. We
strongly suggest spending lots of time and trying to make as much connections as possible. You will
find out that half the possibilities of the synth comes from it.

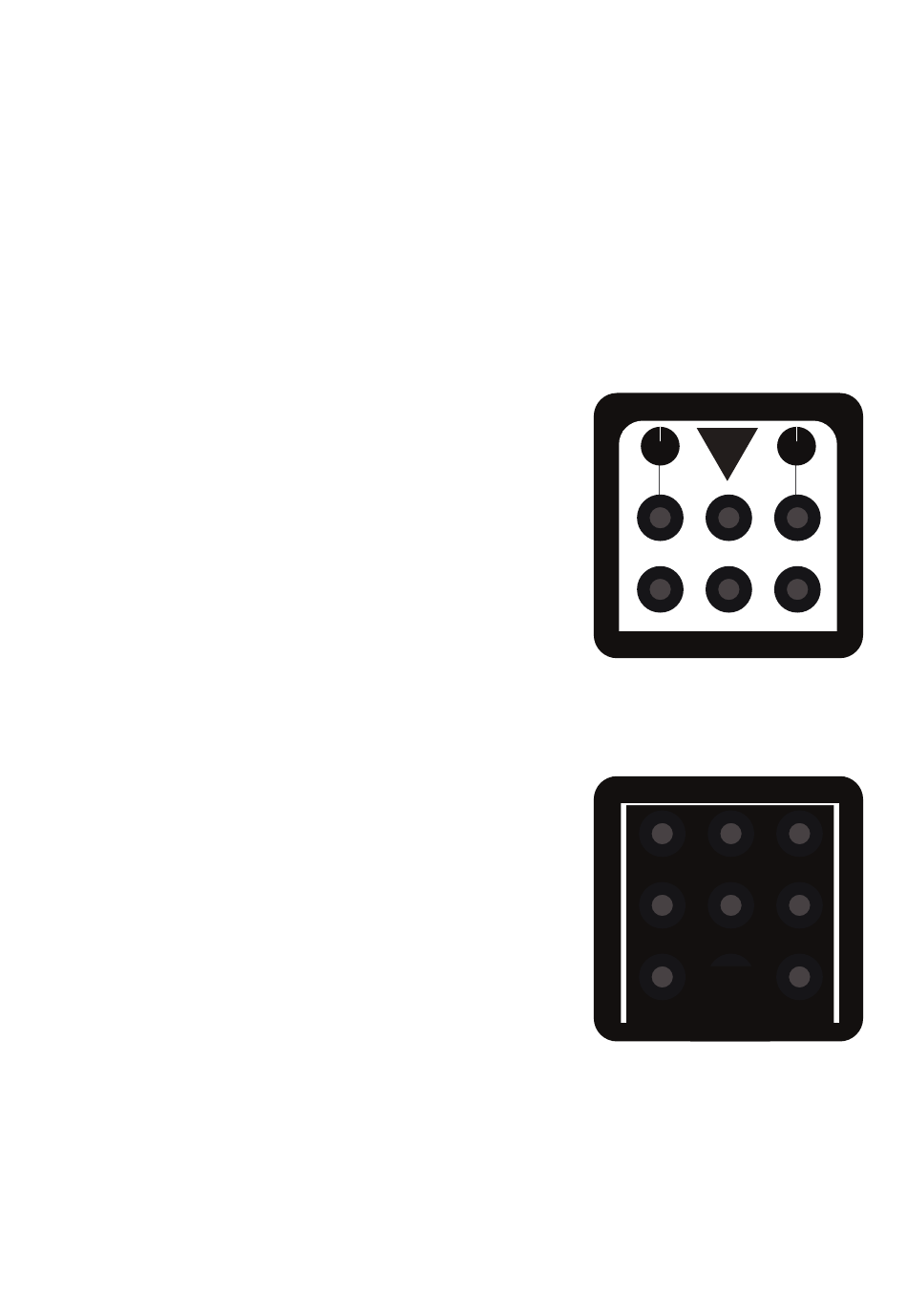

Patching is divided in 3 areas:
OUTPUTS: Those patches only send voltage. You can send their CV to CV inputs or other devices, but
first be sure that the receiver can accept such a voltage.
INPUTS: Those patches can only receive voltage. It's safe to send more than the recommended
voltage but it won't always have results.
MIDI/AUDIO INTERFACE: Those patches are for MIDI and Audio handling.
OUTPUTS:
VCO 2: Outputs the pure Oscillator 2 selected wave. Max
Level (+/-5V), can be adjusted through the attenuator knob
above.
M2: Modulator 2 Output (0-8V).
NOISE: White Noise output with level attenuator knob.
MOD: Modulation Wheel. Sends 0-5V and it can be
controlled by a Midi Keyboard's modulation wheel.
GATE: Sends note on/off from a midi keyboard in the
analog form of 0V (off) or 5V (on).
CV: Sends midi notes as CV (1V/oct).
INPUTS:
CV 1: Controls Oscillator 1 Pitch at 1V/Oct. Max +/-12V.
CV 2: Controls Oscillator 2 Pitch at 1V/Oct. Max +/-12V.
CUT: Controls Cutoff frequency of both Filters. Best
operated at +/-5V. Max +/-12V
CV: Controls both Oscillators Pitch at 1V/Oct. Max +/-12V.
GATE: Triggers the Modulators.
POST: Controls Cutoff frequency of Filter 2 only. Best
operated at +/-5V. Max +/-12V
PW: Controls Pulse Width of the Oscillator 1 square wave.
Works best at +/-5V and accepts +/-10V
VCA: Controls the amplitude modulation of the Amp.
Works best at +/-5V and accepts max +/-10V.
VCO 2 m2 NOISE
mod gate cv
CV 1 CV 2 CUT
cv GATE post
pw IN 2 vca
