CONSTRUCTION
MANUAL
A N A L O G S Y N T H E S I Z E R

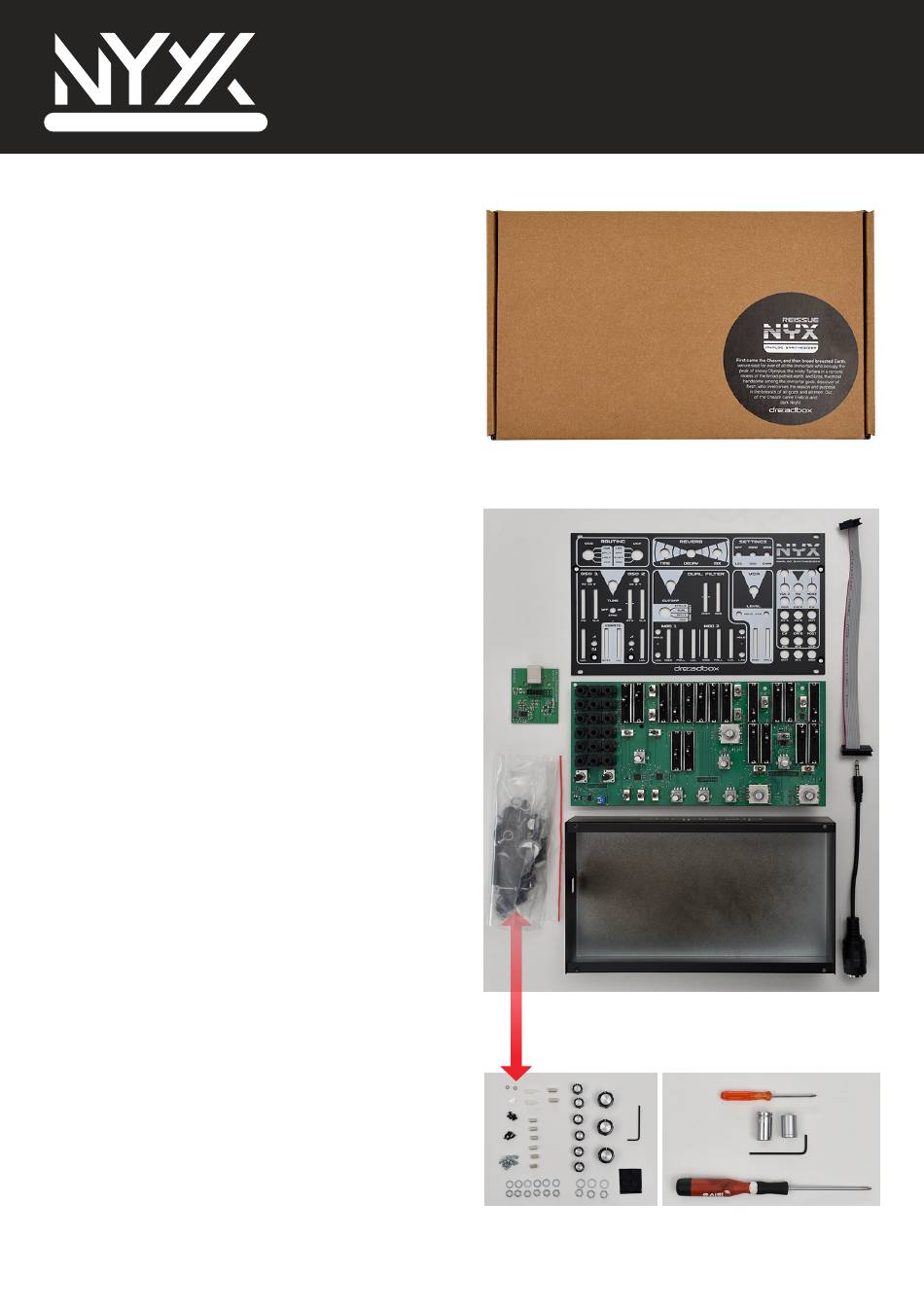

In the box you will find:
In the box you will find:
- 3 x PCB boards
- A plastic bag with the parts
- The metal enclosure with the panel
- Midi to 3,5mm adapter
- 1 ribbon cable for modular use
Bag contains:
- 4 rubber feet
- One 2mm hex driver
- 11xM3 brass bolts
- 4xM3 black bolts for panel mounting
- 5xM3 black bolts countersunk type
- 2 metal spacers 12mm length M3
- 6 metal spacers 10mm length M3
- 2 plastic spacers 11mm length M3 double ended
- 6xM8 nuts and washers
- 3xM10 nuts and washers
- 1 washer M3
- 6x small knob
- 3x big knob
Bag contains:
- 3x LED lens
Additionally, you will need to have:
-
A straight 1,5mm wide screwdriver for the knobs
- A PH1 screwdriver
- A 10mm hex driver
- A 11mm hex driver

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nyx and is the answer not in the manual?

Questions and answers

Summary of Contents for Dreadbox Nyx

  • Page 1 CONSTRUCTION MANUAL A N A L O G S Y N T H E S I Z E R In the box you will find: In the box you will find: - 3 x PCB boards - A plastic bag with the parts - The metal enclosure with the panel - Midi to 3,5mm adapter - 1 ribbon cable for modular use...
  • Page 2 Step 1 On the front panel add the Led lens, and 5x10mm metal spacers with 5xM3 black bolts countersunk, as shown. Push the LED lenses with the soft end of the screwdriver so that they stick firmly into place.
  • Page 3 Step 2 Add a 10 mm metal spacer + 1xM3 washer to the top board, above the 2 to the right slider as shown. Make sure that the screw is bolted firmly, so as the washer is straighten.
  • Page 4 Step 3 Add the top board to the panel as shown. You will need 2x plastic spacers 11mm length M3 that will be bolted on the 2 top holes and 3x10mm metal spacers that will be bolted to the 3 bottom holes.
  • Page 5 Step 4 On the bottom board, add 2x12mm metal spacer as shown (they will serve as the power supply holder).
  • Page 6 Step 5 Connect the bottom and the rest of the assembly as shown.
  • Page 7 Step 6 Attach the power board to the assembly as shown.
  • Page 8 Step 7 Add the adhesive feet to the enclosure.
  • Page 9 Step 8 Place the unit in the metal case. To easily achieve this, place the USB parts first, and them push down the rest.
  • Page 10 Step 9 Screw the 4 bolds so that its held to the enclosure as shown.
  • Page 11 Step 10 Bolt the knobs and the rotary switches. The M10 nuts are for the switches and the M8 for the knobs.
  • Page 12 Step 11 Screw the 4 bolds so that its held to the enclosure as shown. Congratulations! Enjoy your new synth unit!
