Dreadbox NYX Owner's Manual page 5

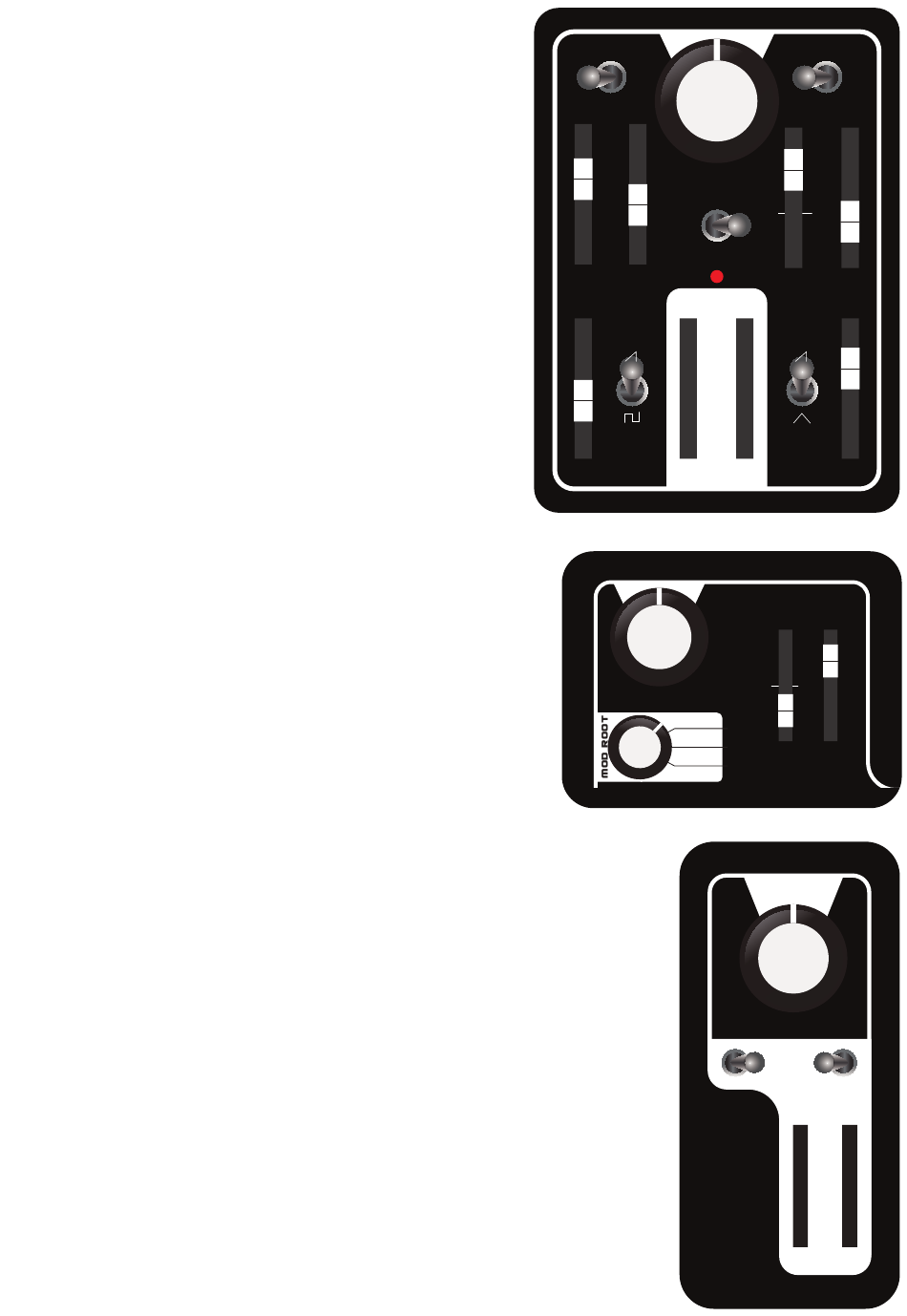

OSCILLATOR 2
6. Oscillator 2 Wave selection switch (Sawtooth/Triangle).
7. LVL: Oscillator 2
8. Detune control for Oscillator 2 only.
Detunes one octave above in mid position.
9. Glide: Sets the Glide Rate (portamento) of
10. Octave Selection switch over 3 octaves.
11. Master Tune for both oscillators.
Set it around mid position for a precise tuning.
12. Sync switch: Hard syncs Oscillator 2 to Oscillator 1.
13. Vibrato* Rate.
14. Vibrato* Level.
2.4 Filters
NYX uses two filters, in order to achieve various timbres.
Both of the filters are 2-pole (12dB/oct), but combined in
series can achieve 24dB/oct
For more info please refer to the "Routing" section (page 7).
1. CUT OFF: Sets the Cutoff frequency of both filters.
2. POST: Sets the Cutoff frequency of Filter 2.
As CUTOFF knob also sets the cutoff frequency of
Filter 2, Post works essentially as an offset to
cutoff of Filter 2. In some routing combinations, it
may work best around mid position.
3. RES: Resonance control for both filters.
2.5 Amplifier
The NYX VCA has a modulator with
functions to the 2 filter modulators (modulator 1 & 2).
For more info on how to use this one, please refer to
the "modulators" section (page 4).
1. Master Volume of the Synthesizer
2. Rise: Sets the Attack Time
3. Fall: Sets the Decay or Release Time, depending on the
position of the Hold switch.
4. Hold switch: When Hold is On, the Fall functions as a Release
instead of a Decay.
5. LFO switch: When selecting LFO, the envelope cycles
(retriggers) and acts as an LFO instead of a standard envelope.
Rise and Fall settings affect the rate and wave shape of the LFO.
Volume control.
filtering.
identical
OSC 1
32 16 8
Oscillator 2. 3
PW
2
LVL
5
11
TUNE
4
12
OFF ON
SYNC
GLD DTN
VIBRATO
14
1
13
RATE LVL
DUAL FIL TER
1
CUTOFF
2
single
dual
post
split
odd
VCA
1
LEVEL
4
HOLD LFO
OSC 2
10
16 8 4
8
9
GLD
7
6
LVL
3
res
5
MODUL
ATOR
2 3
RISE FALL
