Dreadbox NYX Construction Manual

Analog synthesizer
Hide thumbs Also See for NYX:

Advertisement

Quick Links

CONSTRUCTION
MANUAL
A N A L O G S Y N T H E S I Z E R

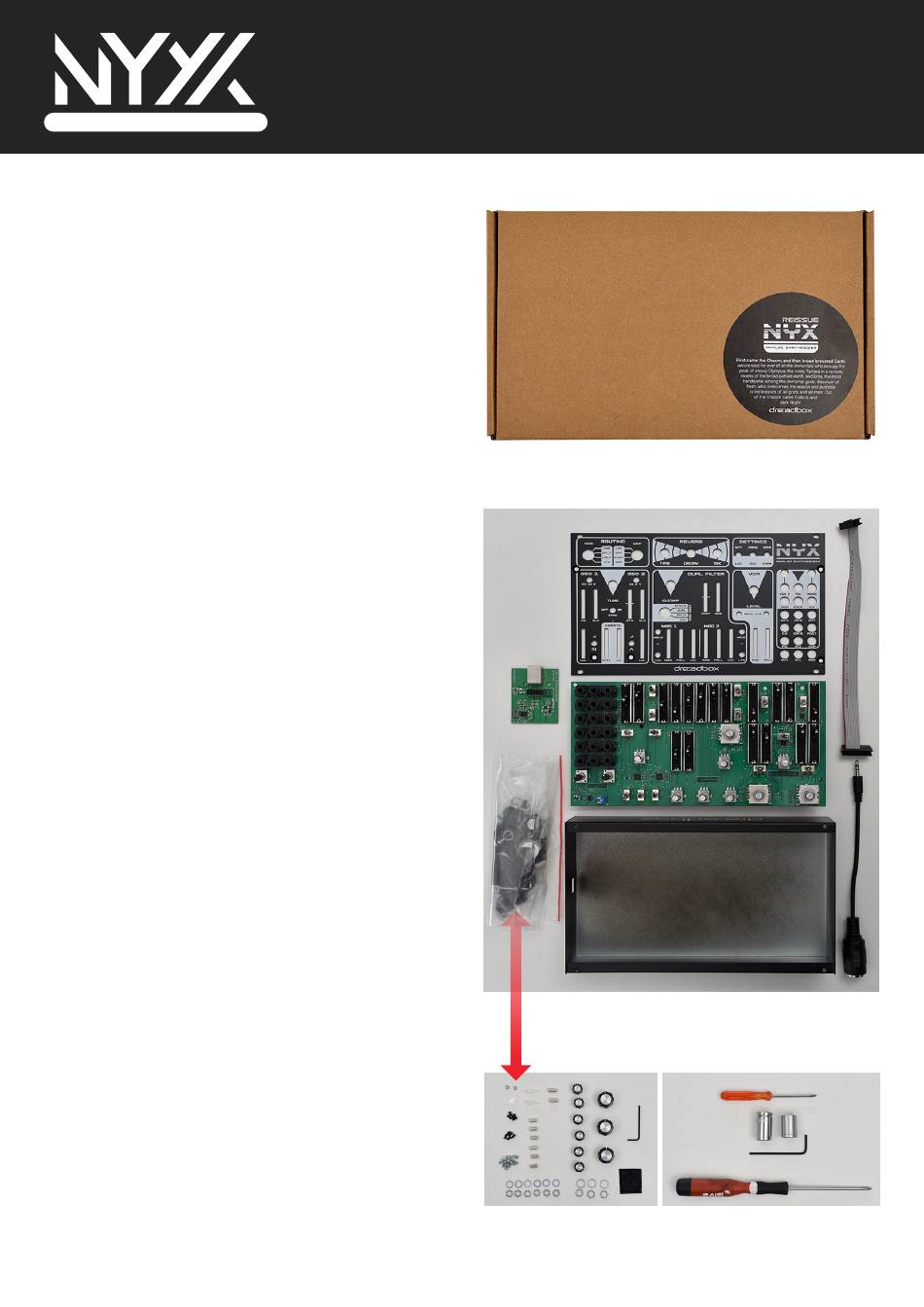

In the box you will find:
In the box you will find:
- 3x PCB boards
- A plastic bag with the parts
- The metal enclosure with the panel
- Midi to 3,5mm adapter
- 1 ribbon cable for modular use
Bag contains:
- 4x rubber feet
- 1x 2mm Allen key
- 11x M3 brass screws
- 4x M3 black screws for panel mounting
- 5x M3 black screws countersunk type
- 2x metal spacers 12mm long M3
- 6x metal spacers 10mm long M3
- 2x plastic spacers 11mm long M3 double ended
- 6x M8 nuts and washers
- 3x M10 nuts and washers
- 1x M3 washer
- 6x small knob
- 3x big knob
Bag contains:
- 3x LED lens
Additionally, you will need to have:
-
A flat 1,5mm wide screwdriver for the knobs
- A PH1 screwdriver
- A 10mm Allen key
- A 11mm Allen key
