Dreadbox NYX Owner's Manual page 7

2. VCF ROUTING
LPF: Filter 1 is set to LOW PASS and in series with Filter 2 which is
also set to LOW PASS.
HPF: Filter 1 is set to HIGH PASS and in series with Filter 2 which
is also set to HIGH PASS.
EVEN: Both Filters are set to LOW PASS and are set in Parallel.
ODD: Filter 1 is set to LOW PASS and Filter 2 is set to HIGH PASS
and they are set in Parallel.

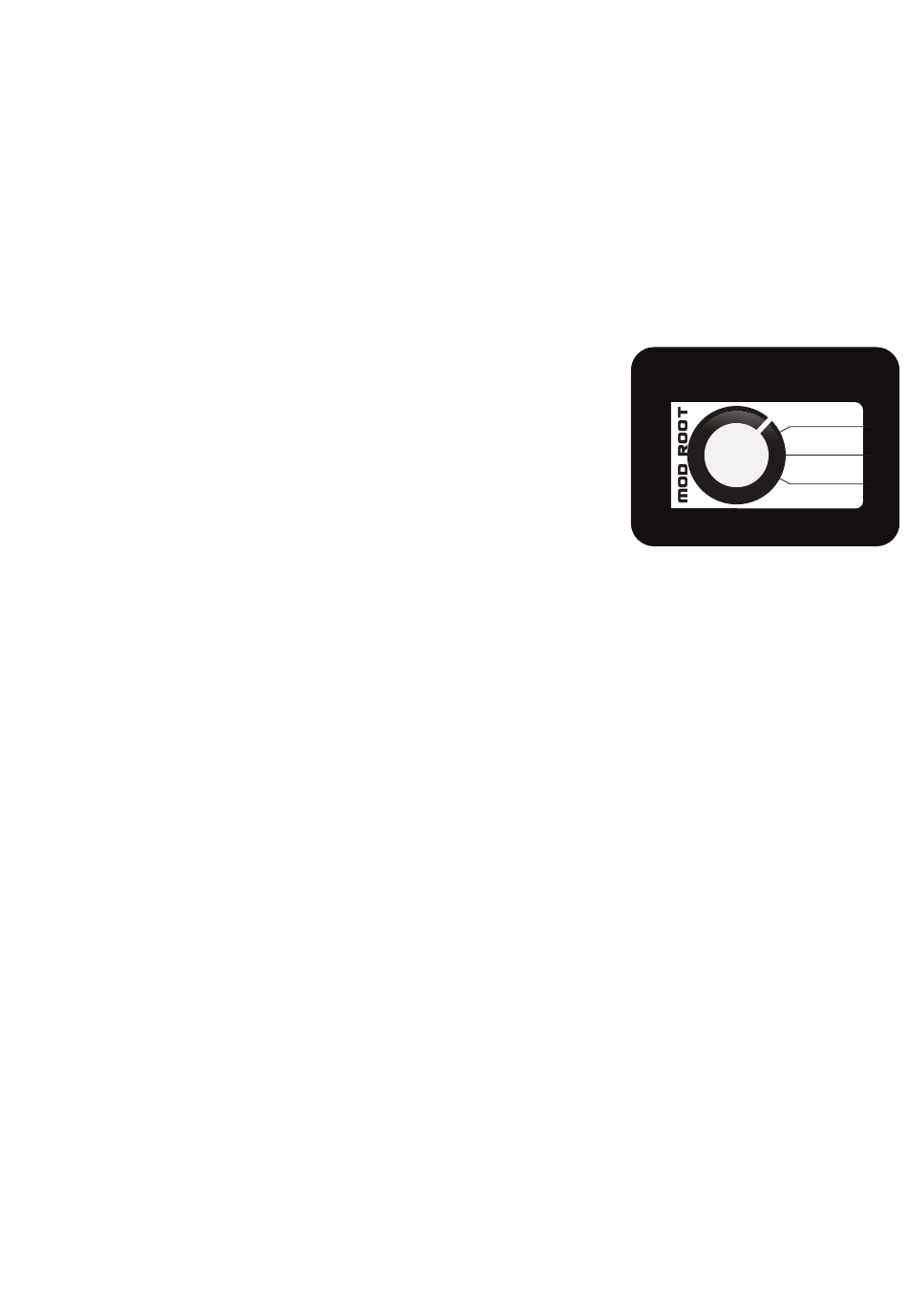

3. MOD ROUTING
SINGLE: Modulator 1 controls both Filters.
CUTOFF
DUAL: Both Modulators 1 and 2 routed to both Filters.
single
dual
SPLIT: Modulator 1 controls Filter 1 and Modulator 2
controls Filter 2.
split
odd
ODD: Modulator 1 controls both Filters and Modulator
2 controls Filter 2 only.
EXAMPLES
A.Standard setting with a 24dB/oct VCF
VCO R: NOR*
VCF R: LPF or HPF v
MOD R: SINGLE
Set Post Cut at 12 o'clock
B.Split Oscillators into each Filter (control each filter individually)
VCO R: SPLIT
VCF R: EVEN or ODD
MOD R: SPLIT
Use POST CUT to adjust an Offset between filters
C. Four Sound Sources
VCO R: VCA
VCF R: EVEN
MOD R: Doesn't matter (SPLIT would be nice though)
Resonance at max
Patch CV out to VCF input
Use POST CUT to place an offset between Resonance
Use Cut Off to tune resonance
