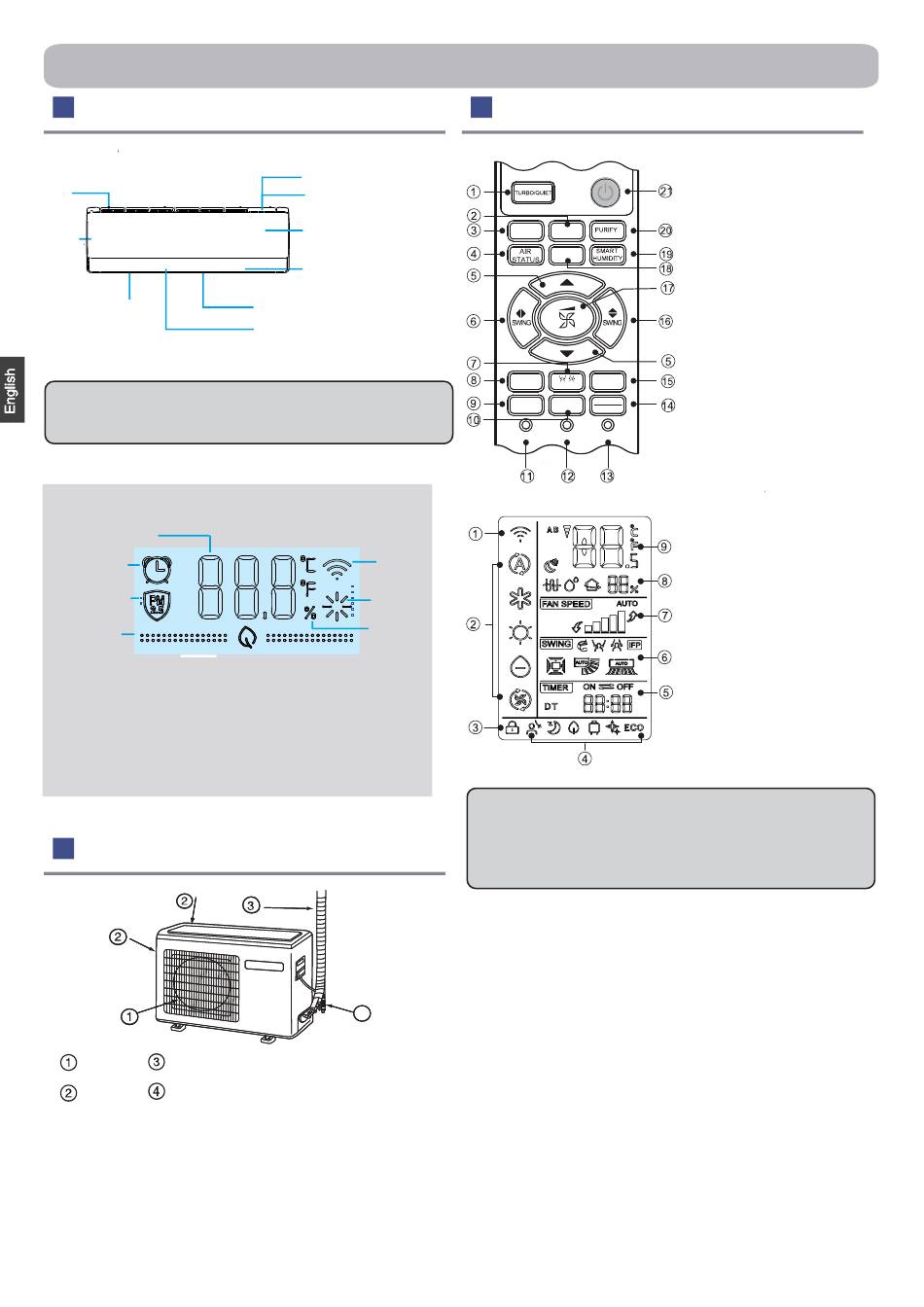

Parts and Functions

Indoor Unit

Air inlet
Front panel
Air outlet
NOTE:
Actual inlet grille may vary from the one shown in the manual
depending on the product purchased.
Temperature
display
Timing
PM2.5
reminder
Air
quality
The operation mode symbol displays
the corresponding color when setting
Cooling: blue
Good air quality: Air quality light turns green
Bad air quality: Air quality light turns red
Warning air quality: Air quality light turns yellow

Outdoor Unit

OUTLET CONNECTING PIPING AND ELECTRICAL WIRING
INLET DRAIN HOSE
Please note the above picture is for reference only.
This may very depending on the unit purchased.
Humidity sensor (internal)
Air quality sensor (internal)
Display (internal)
Vertical flab (internal)
Left and right air flow direction regulation
Internal air deflector (internal)
Up and down air flow direction regulation
External air deflector
Wi-Fi
Operation
mode
Humidity
display
Heating: rosy
Drying: blue
4

Remote controller

MODE I FEEL
SLEEP
HEALTH EXTRA
AIRFLOW ECOSENSOR FUNCTION
TIME TIME CONFIRM
ON OFF
CANCEL
LOCK LIGHT RESET
NOTE:
1. Humidity display is unavailable on some models.
2. If the model you buy has a Wi-Fi function, press the"ON/OFF"
button for 5s to emit the Wi-Fi binding signal. Once in the
binding mode, the APP will show how to bind.
1
1.TURBO/QUIET button
2.I FEEL button
3.MODE button
4.AIR STATUS button
5.TEMP+/- button
6.SWING left/right button
7.ECOSENSOR button
8.HEALTH AIRFLOW button
9.TIME ON button
10.TIME OFF button
11.LOCK button
12.LIGHT button
13.RESET button
14.CONFIRM/CANCEL button
15.EXTRA FUNCTION button
16.SWING up/down button
17. FAN button
18.SLEEP button
19.SMART HUMIDITY button
20.PURIFY button
21.ON/OFF button
1.Wi-Fi display
2.Operation mode display
3.LOCK display
4.Display of each function
status
5. TIMER ON display
TIMER OFF display
CLOCK display
6. SWING display
Swing up/down display
Swing left/right display
7.FAN SPEED display
8.Humidity display
9.TEMP display
