Description
The PMK-3100L is a pre-construction mount kit for the
®
Crestron Isys
TPS-3100L series of wall mounted
touchpanels. The PMK-3100L is used for installation on a
stud. For custom touchpanel placement without a stud,
use the WMKT-3100L or the WMKM-3100L. The PMK-
3100L includes an 18 AWG bus wire to secure
touchpanel cabling prior to drywall installation and to
avoid damaging the cables when the opening is routed.
Refer to the physical views (bottom, side, and front) of
the PMK-3100L, shown after this paragraph. The table
that follows lists all parts included with the PMK-3100L.
NOTE: This mounting kit is to be used only with the
TPS-3100L series of touchpanels.

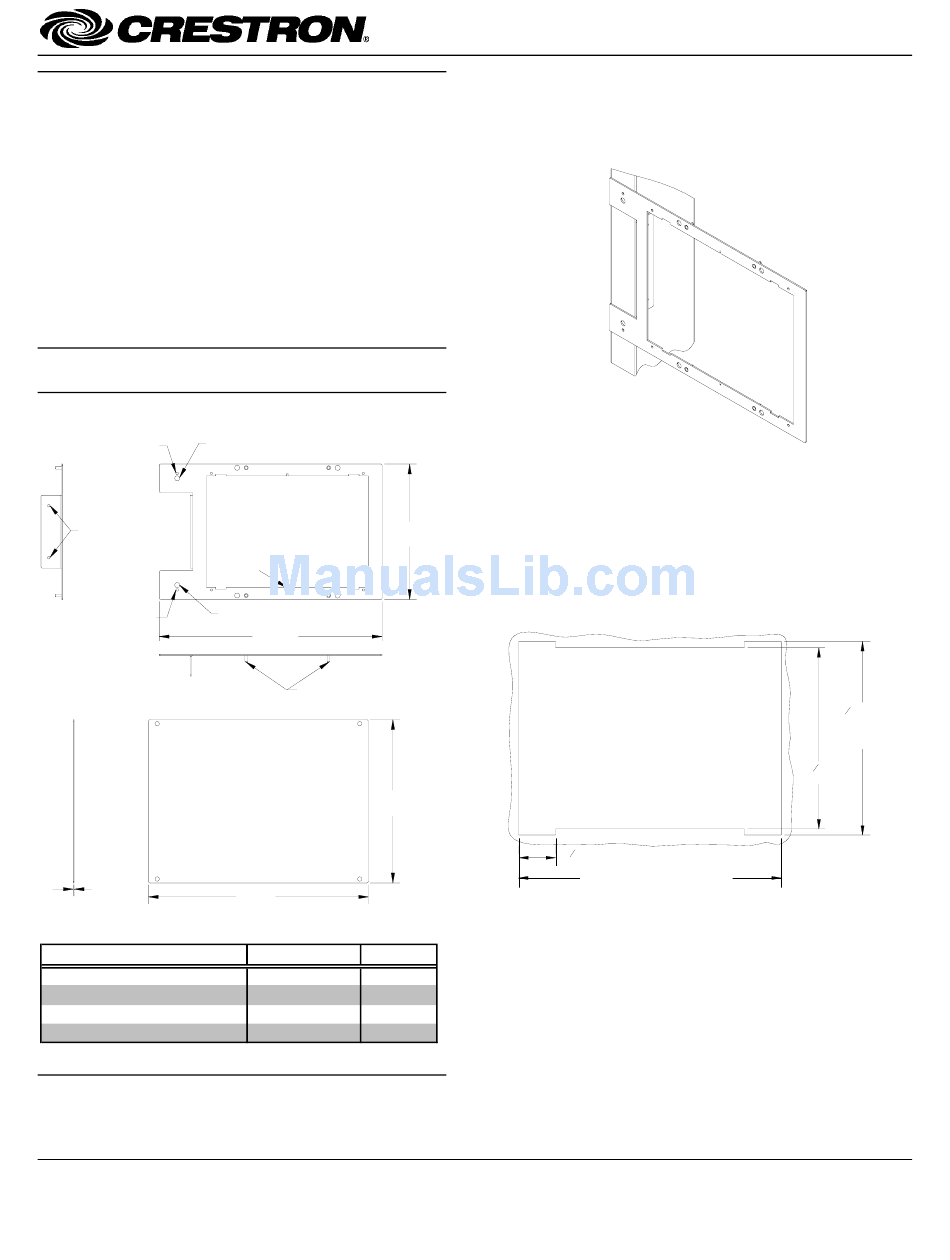

PMK-3100L Physical Views
FOR DRYWALL SCREW
FOR DRYWALL NAIL
(PROVIDED BY OTHER)
(PROVIDED BY OTHER)
FOR DRYWALL NAIL
SECURE 18 AWG BUS WIRE
(PROVIDED BY OTHER)
IN NOTCH TO HANG CABLES
AWAY FROM DRYWALL
CUTTING TOOLS.
FOR DRYWALL NAIL
(PROVIDED BY OTHER)
COVER PLATE 2010622
0.03 in
(0.08 cm)
Supplied Components
DESCRIPTION
Metal, Plate, Mounting
Metal, Plate,Cover
Screw, #6-32, 1-1/2"L, Pan, Phil
Jumper wire, 12"L, 18AWG, Black
Installation
The PMK-3100L consists of a single metal plate, which
fastens to the stud of a framed wall prior to hanging
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
6.50 in
(16.50 cm)
FOR DRYWALL SCREW
(PROVIDED BY OTHER)
10.81 in
(27.46 cm)
PINS USED WITH OPTIONAL
MUD RING 2004825
(PART OF MMK/WMKM-3100L)
5.88 in
(14.92 cm)
8.00 in
(20.32 cm)
PART NUMBER QUANTITY
2010617
1
2010622
1
2007254
4
2007838
1
Pre-Construction Mount Kit: PMK-3100L
drywall (shown after this paragraph). Standard drywall
nails or screws to attach the PMK-3100L are not supplied
(length can vary).
Metal Plate Secured to Stud
The plate is designed to provide the necessary support for
a single touchpanel and can mount to the right or left side
of a stud. Confirm that the PMK-3100L is level before
application of drywall. A rectangular opening with the
dimensions shown in the illustration after this paragraph
must be made in the drywall. Verify that the opening
exposes the #6-32 tapped holes in each corner.
Dimensions for Drywall Cutout
1
1
in
8
(28 mm)
DO NOT EXCEED THIS DIMENSION
If the opening for the touchpanel in the drywall is too
large, two pre-construction accessories are available to
make adjustments. Use the optional TMK-3100L (Trim
Ring Kit) to provide a smooth edge at the opening. This
option provides a finished appearance and is preferred
when wallpaper is hung. Use the optional MMK-3100L
(Mud Ring Kit) to fill in larger irregularities around the
opening (requires plastering).
Complete the installation by either installing the
touchpanel, leaving the hole open (if permitted by local
building codes), or installing the supplied cover plate with
the included #6-32 x 1½" screws (shown after this
(139 mm)
8 in MAX
(203 mm MAX)
Installation Guide – DOC. 6297
Specifications subject to
change without notice.
7
5
in MAX
8
(149 mm MAX)
DO NOT EXCEED
THIS DIMENSION
5
1
in
2
09.04
