Crestron PMK-2000L Installation Manual

Pre-Construction Mount Kit: PMK-2000L

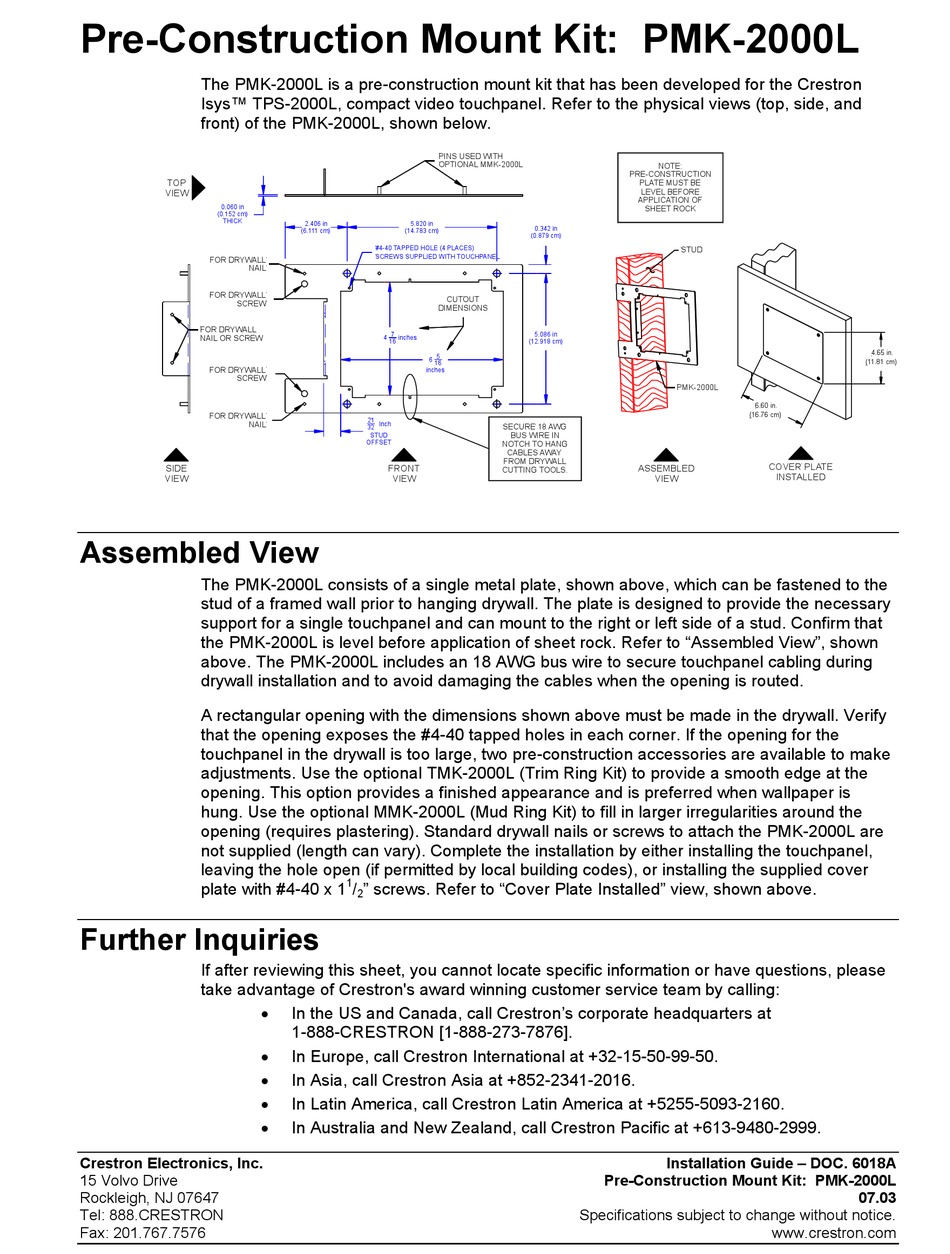

The PMK-2000L is a pre-construction mount kit that has been developed for the Crestron
Isys™ TPS-2000L, compact video touchpanel. Refer to the physical views (top, side, and
front) of the PMK-2000L, shown below.
TOP
VIEW
0.060 in
(0.152 cm)
THICK
FOR DRYWALL
NAIL
FOR DRYWALL
SCREW
FOR DRYWALL
NAIL OR SCREW
FOR DRYWALL
SCREW
FOR DRYWALL
NAIL
SIDE
VIEW

Assembled View

The PMK-2000L consists of a single metal plate, shown above, which can be fastened to the
stud of a framed wall prior to hanging drywall. The plate is designed to provide the necessary
support for a single touchpanel and can mount to the right or left side of a stud. Confirm that
the PMK-2000L is level before application of sheet rock. Refer to "Assembled View", shown
above. The PMK-2000L includes an 18 AWG bus wire to secure touchpanel cabling during
drywall installation and to avoid damaging the cables when the opening is routed.
A rectangular opening with the dimensions shown above must be made in the drywall. Verify
that the opening exposes the #4-40 tapped holes in each corner. If the opening for the
touchpanel in the drywall is too large, two pre-construction accessories are available to make
adjustments. Use the optional TMK-2000L (Trim Ring Kit) to provide a smooth edge at the
opening. This option provides a finished appearance and is preferred when wallpaper is
hung. Use the optional MMK-2000L (Mud Ring Kit) to fill in larger irregularities around the
opening (requires plastering). Standard drywall nails or screws to attach the PMK-2000L are
not supplied (length can vary). Complete the installation by either installing the touchpanel,
leaving the hole open (if permitted by local building codes), or installing the supplied cover
plate with #4-40 x 1
Further Inquiries
If after reviewing this sheet, you cannot locate specific information or have questions, please
take advantage of Crestron's award winning customer service team by calling:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
PINS USED WITH
OPTIONAL MMK-2000L
2.406 in 5.820 in
(6.111 cm) (14.783 cm)
#4-40 TAPPED HOLE (4 PLACES)
SCREWS SUPPLIED WITH TOUCHPANEL
DIMENSIONS
7
4 inches
16
5
6
16
inches
21
32 inch
STUD
OFFSET
FRONT
VIEW
1
/ " screws. Refer to "Cover Plate Installed" view, shown above.
2
•
In the US and Canada, call Crestron's corporate headquarters at
1-888-CRESTRON [1-888-273-7876].
•
In Europe, call Crestron International at +32-15-50-99-50.
•
In Asia, call Crestron Asia at +852-2341-2016.
•
In Latin America, call Crestron Latin America at +5255-5093-2160.
•
In Australia and New Zealand, call Crestron Pacific at +613-9480-2999.
0.342 in
(0.879 cm)
CUTOUT
5.086 in
(12.918 cm)
SECURE 18 AWG
BUS WIRE IN
NOTCH TO HANG
CABLES AWAY
FROM DRYWALL
CUTTING TOOLS.
Pre-Construction Mount Kit: PMK-2000L
Specifications subject to change without notice.
NOTE:
PRE-CONSTRUCTION
PLATE MUST BE
LEVEL BEFORE
APPLICATION OF
SHEET ROCK
STUD
PMK-2000L
6.60 in.
(16.76 cm)
COVER PLATE
ASSEMBLED
INSTALLED
VIEW
Installation Guide – DOC. 6018A
www.crestron.com
4.65 in.
(11.81 cm)
07.03
