Crestron PMK-4L Installation Manual

Description
The PMK-4L is a pre-construction mount kit for the
®
Crestron Isys TPS-4L and TPMC-4L wall mounted
touchpanels. The PMK-4L is used for installation on a
stud. For custom touchpanel placement without a stud,
use the TMK/WMKT-4L, MMK/WMKM-4L or the
WMKB-4L. The PMK-4L includes a 12-inch long, 18
AWG jumper wire to secure touchpanel cabling prior to
drywall installation and to avoid damaging the cables
when the opening is routed. Refer to the physical views
(bottom, side, and front) of the PMK-4L, shown after this
paragraph. The table that follows lists all parts included
with the PMK-4L.
NOTE: This mounting kit is to be used only with the
TPS-4L and TPMC-4L wall-mounted series of
touchpanels.

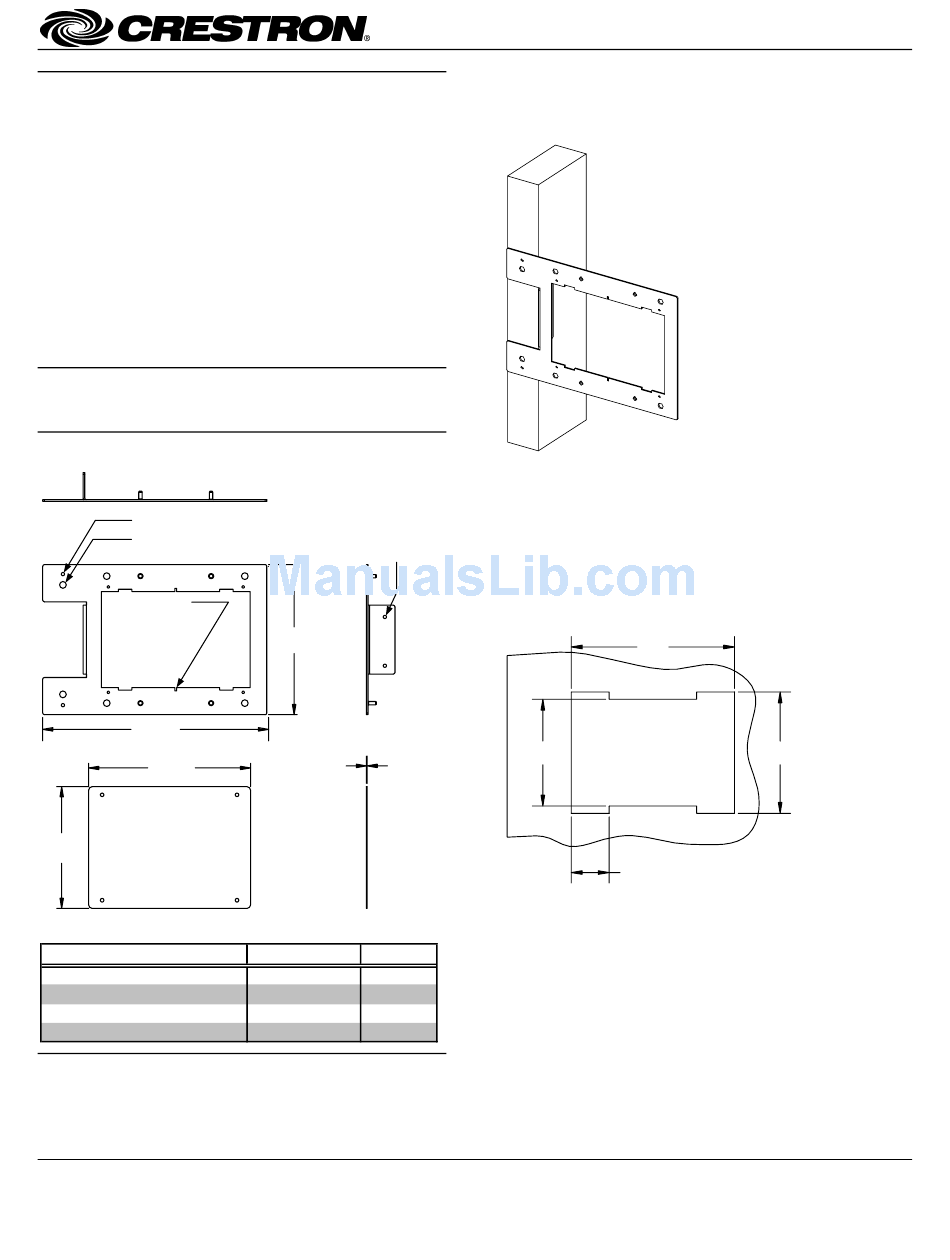

PMK-4L Physical Views
FOR DRYWALL NAILS (NOT INCLUDED)
FOR DRYWALL SCREWS (NOT INCLUDED)
SECURE 18 AWG
JUMPER WIRE IN
NOTCH TO HANG
CABLES AWAY FROM
CUTTING TOOLS
8.37 in
21.56 cm
6.00 in
15.24 cm
4.50 in
11.43 cm
Supplied Components
DESCRIPTION
Metal, Plate, Pre-Construction
Cover Plate
Screw, #04-40, 1-1/2"L, Pan, Phil
Jumper wire, 12"L, 18AWG, Black
Installation
The PMK-4L consists of a single metal plate, which
fastens to the stud of a framed wall prior to hanging
drywall (shown after this paragraph). Standard drywall
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
FOR
DRYWALL
NAILS
(NOT
INCLUDED)
5.55 in
14.01 cm
0.30 in
0.76 cm
PART NUMBER QUANTITY
2013238 1
2013239 1
2007190 4
2007838 1
Pre-Construction Mount Kit: PMK-4L
nails or screws to attach the PMK-4L are not supplied
(length can vary).
Metal Plate Secured to Stud
The plate is designed to provide the necessary support for
a single touchpanel and can mount to the right or left side
of a stud. Confirm that the PMK-4L is level before
applying drywall. A rectangular opening with the
dimensions shown in the illustration after this paragraph
must be made in the drywall. Verify that the opening
exposes the #04-40 tapped holes in each corner.
Dimensions for Drywall Cutout
5.60 in
14.22 cm
3.66 in
9.30 cm
1.30 in
3.30 cm
If the opening is too large, two pre-construction
accessories are available to make adjustments. Use the
optional TMK-4L (Trim Ring Kit) to provide a smooth
edge at the opening. This option provides a finished
appearance and is preferred with wallpaper. Use the
optional MMK-4L (Mud Ring Kit) to fill in larger
irregularities around the opening (requires plastering).
Complete the installation by either installing the
touchpanel, leaving the hole open (if permitted by local
building codes), or installing the supplied cover plate with
the included #04-40 x 1½" screws (shown after this
paragraph). If the touchpanel is to be installed, refer to the
Installation Guide – DOC. 6388
4.16 in
10.57 cm
(2013260)
12.05
